Comprima

Fixed, semi-variable or variable bale chamber – and baler wrapper combination

Comprima

Round balers and baler wrapper combinations

Comprima, developed by ­KRONE for a long service life also under harsh operating conditions.

  • The all-rounder for any type of crops
  • Select from 3 different press connector systems
  • Fixed chamber was a convincingly simple design
  • Semi-variable for maximum flexibility
  • Fully variable for baling all bale sizes

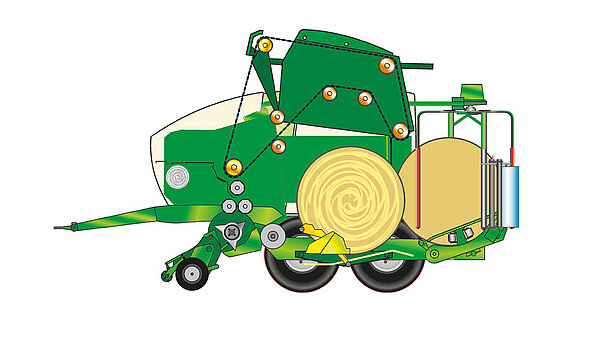

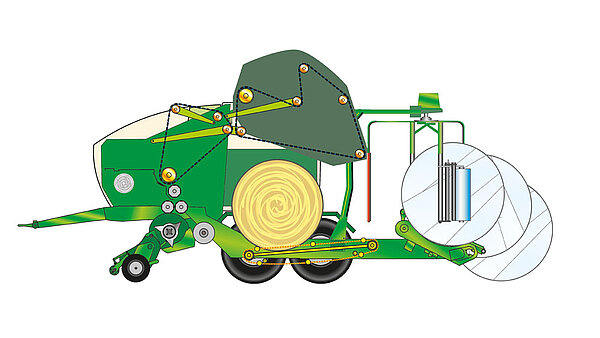

  • Also available as a combination bale wrapper
  • NovoGrip slat and belt conveyor, the turning and compaction system for all crops

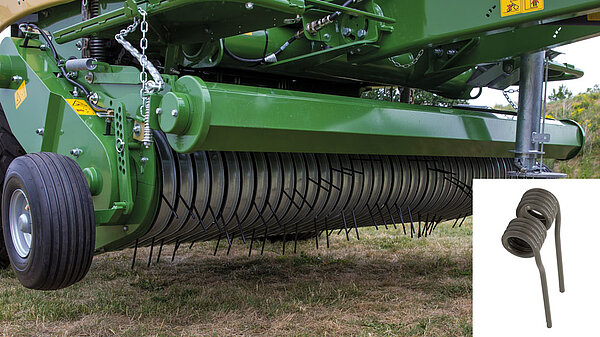

  • Camless EasyFlow pick-up with w-lined tines

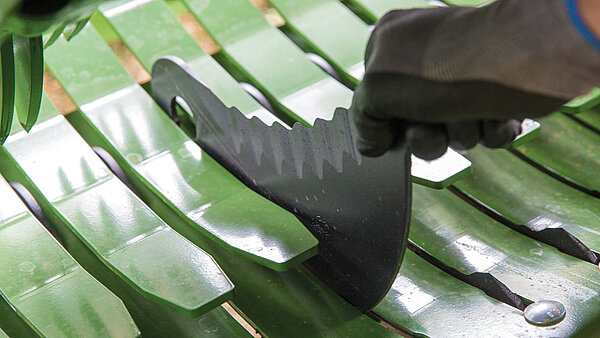

  • Available with feed rotor or cutting system (17 or 26 blades)
  • High throughputs from a massive cut-and-feed rotor

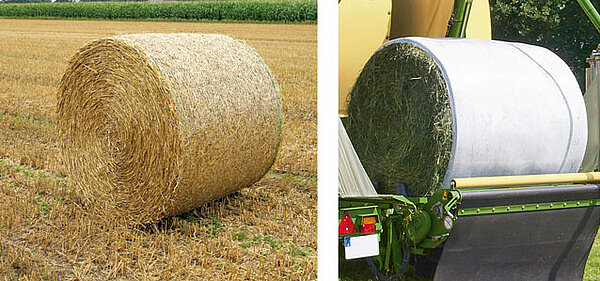

  • Available with net wrap or peripheral film wrap system
  • Easy and fast servicing
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.

Product video

KRONE Comprima

Comprima was developed by KRONE as a machine that delivers long-term and enduring operation in the most difficult conditions.

Product features

Comprima – Round balers and combination baler wrappers

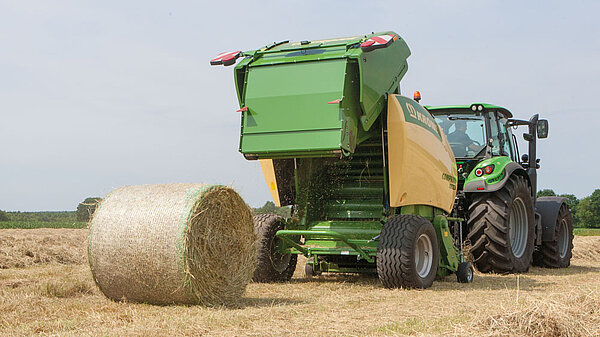

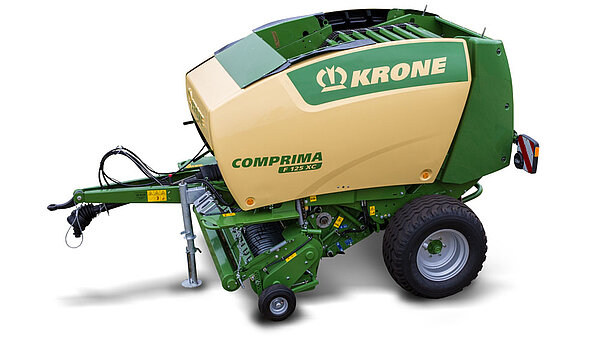

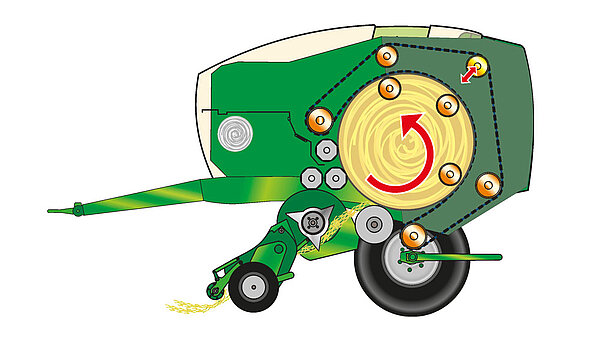

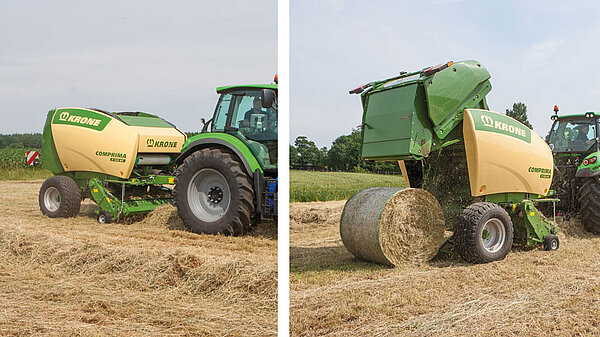

The Comprima with fixed chamber

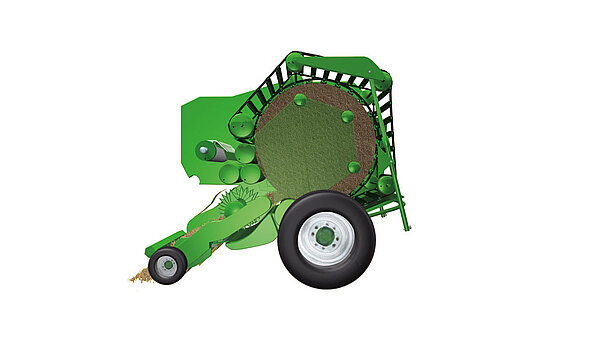

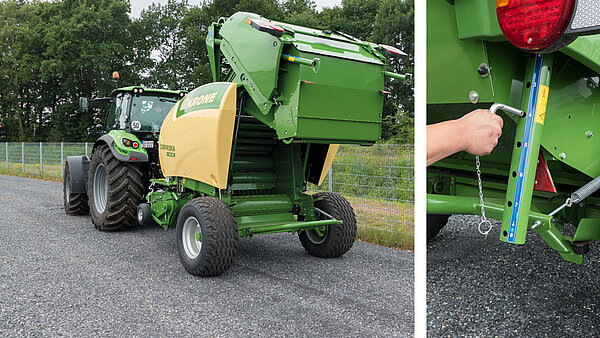

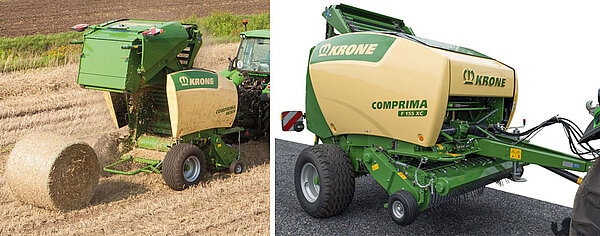

The Comprima with semi-variable bale chamber

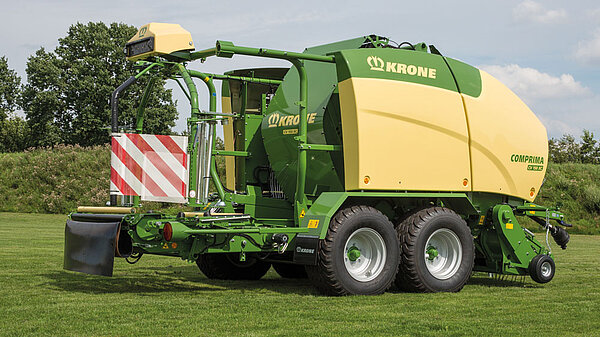

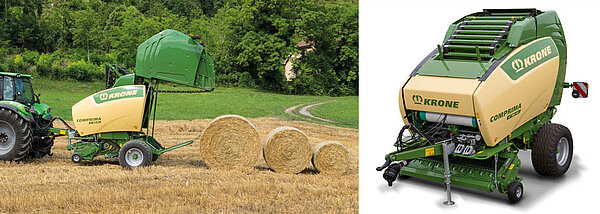

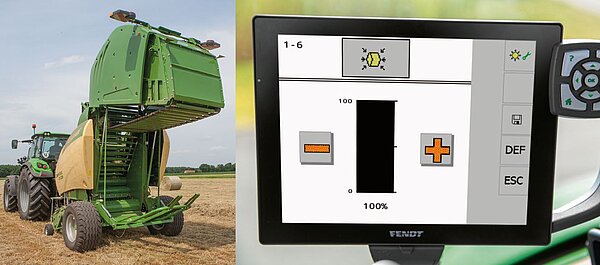

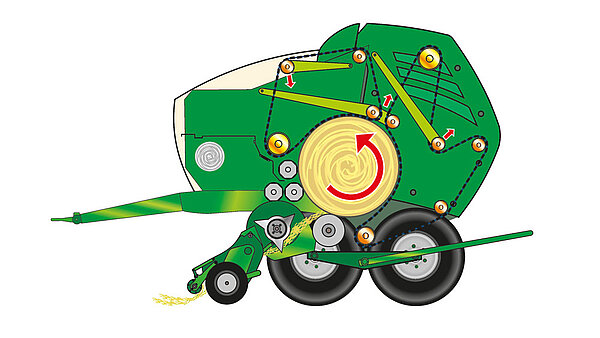

The Comprima with variable bale chamber

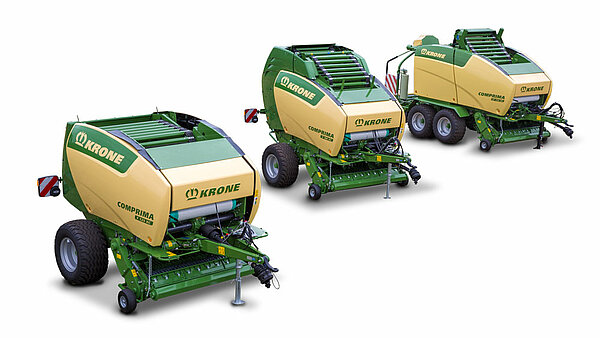

The KRONE bale chambers – fixed, semi-variable or variable

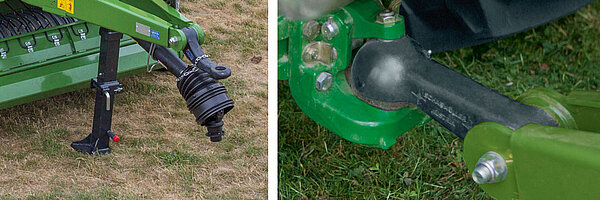

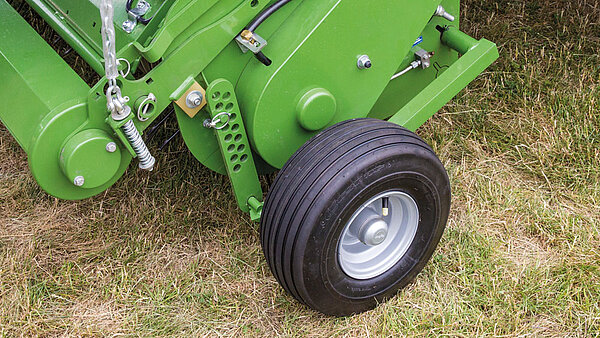

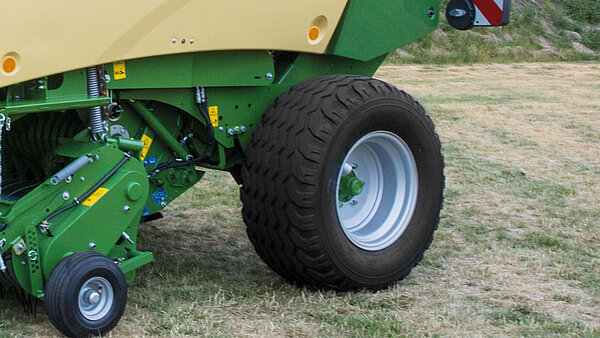

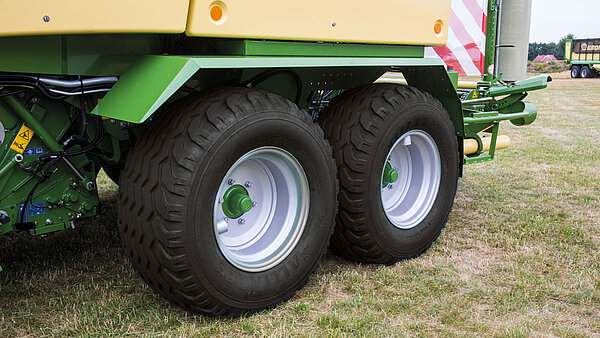

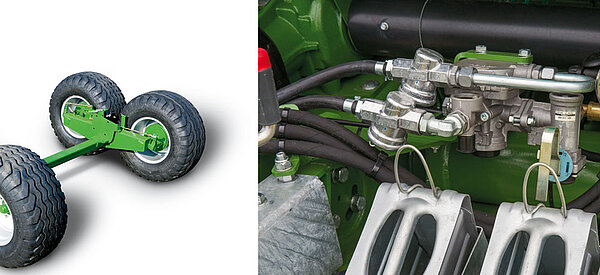

The hitch options and the running gears

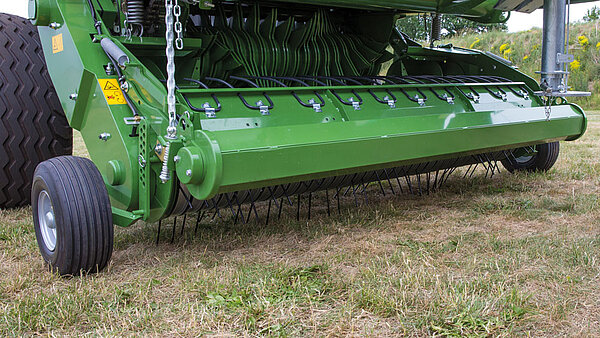

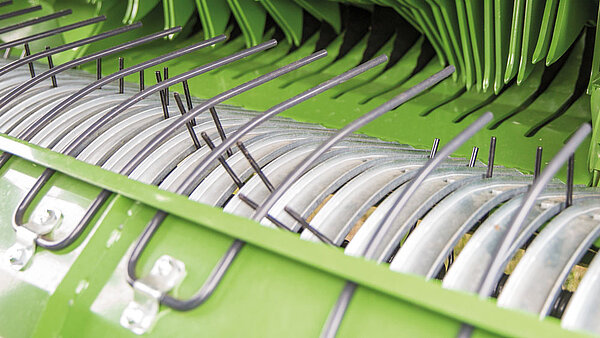

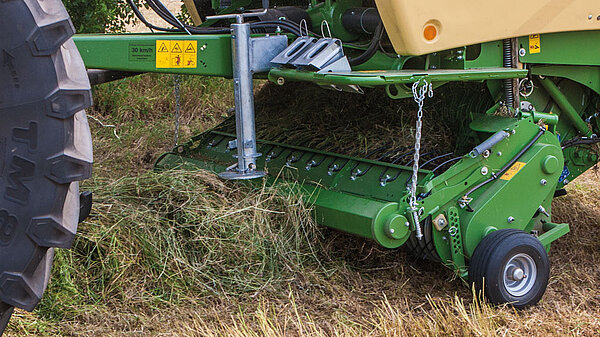

The KRONE EasyFlow pick-up

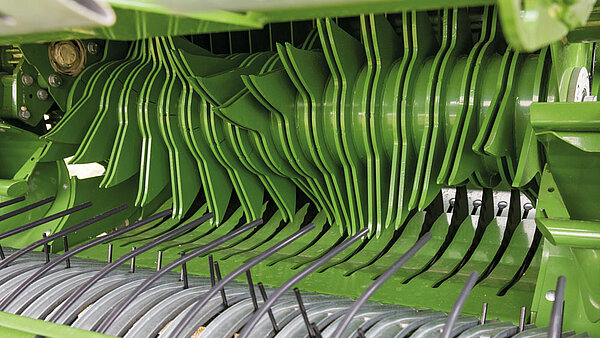

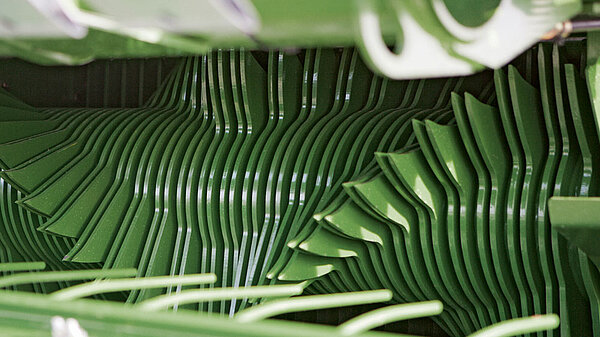

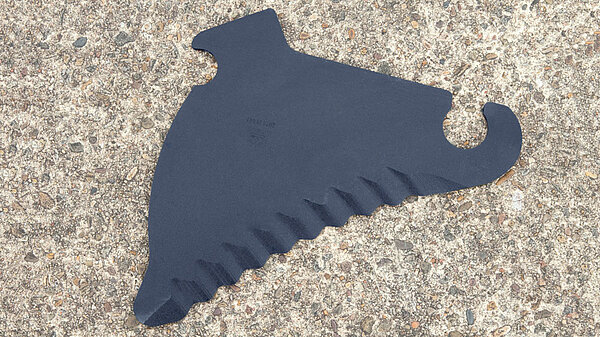

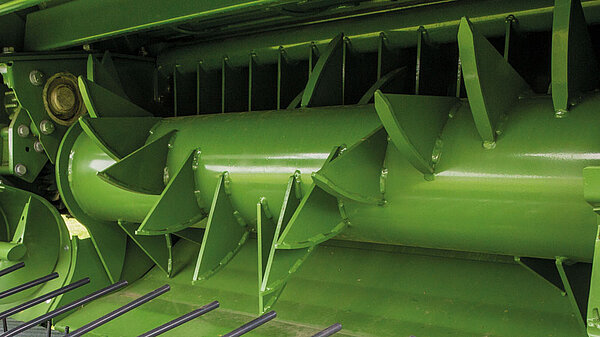

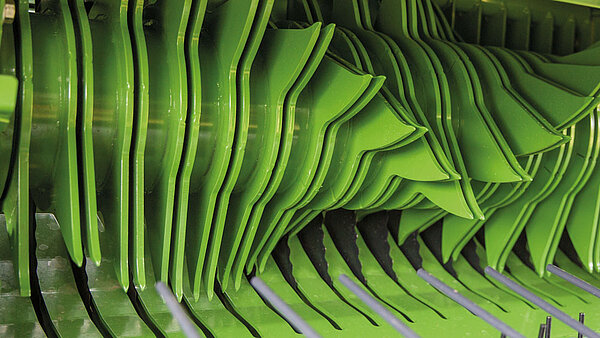

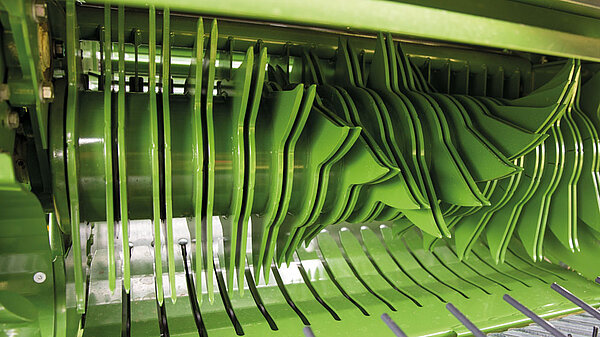

The KRONE feed rotor | The KRONE XCut cutting unit

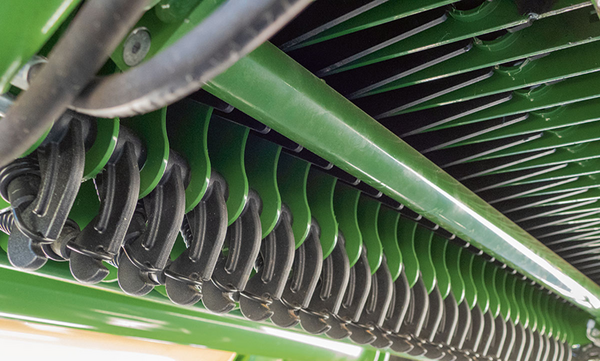

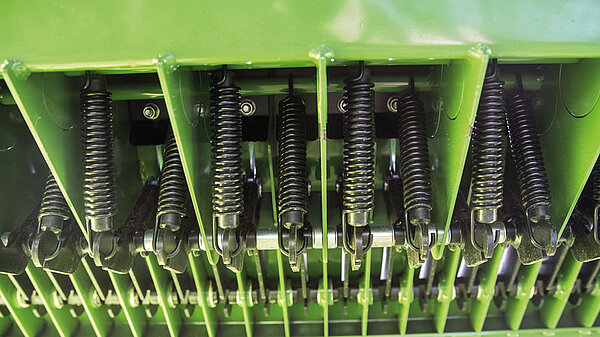

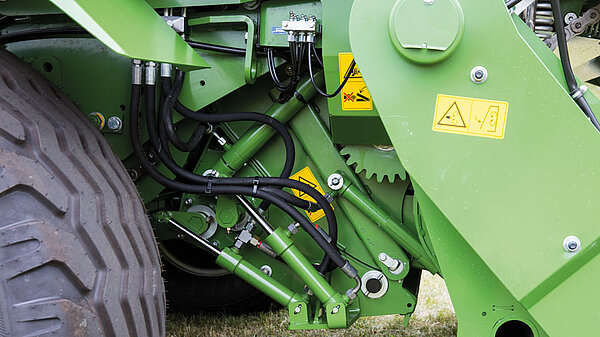

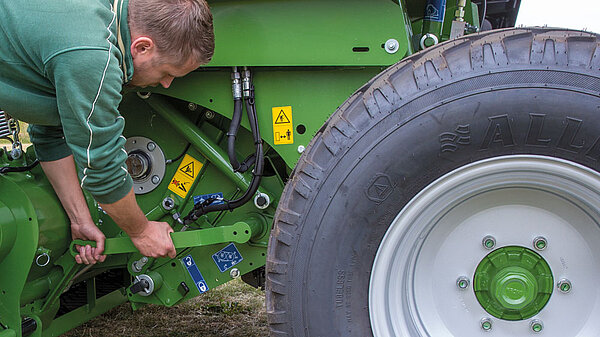

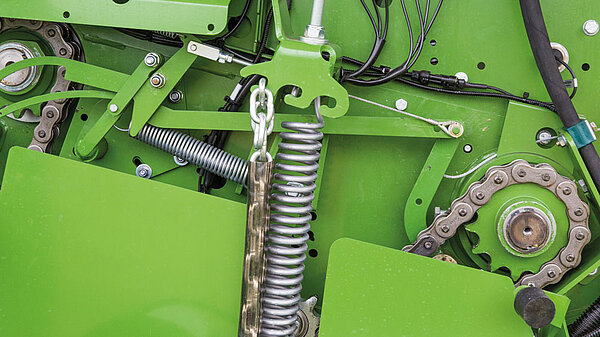

The blade group control system
The blade group control system

Ist die Maschine mit einer hydraulischen Messergruppenschaltung ausgestattet, werden die Messer hydraulisch in den Messerschlitz gedrückt und entsprechend sicher aktiviert bzw. deaktiviert. Auf diesem Weg wird die Funktionssicherheit der Maschine weiter optimiert.

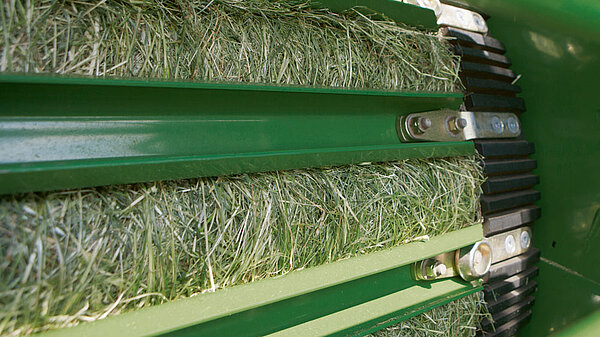

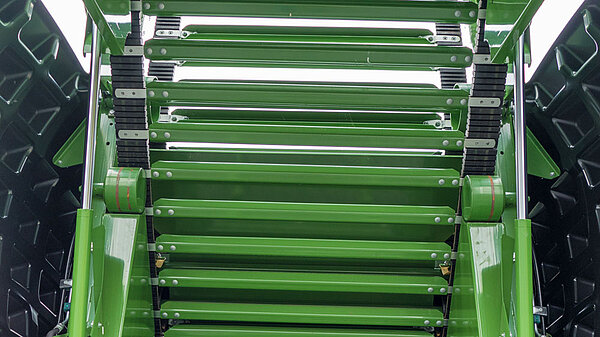

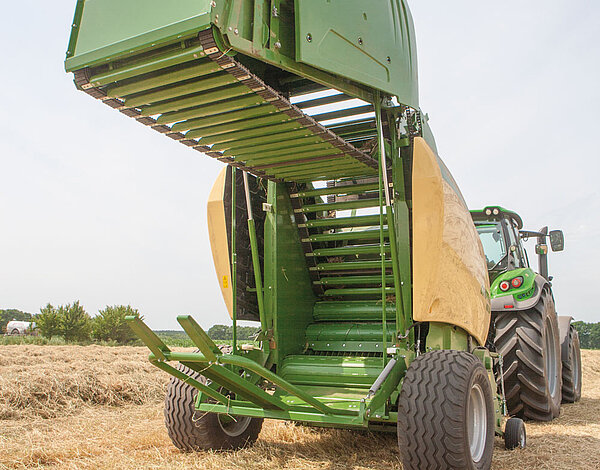

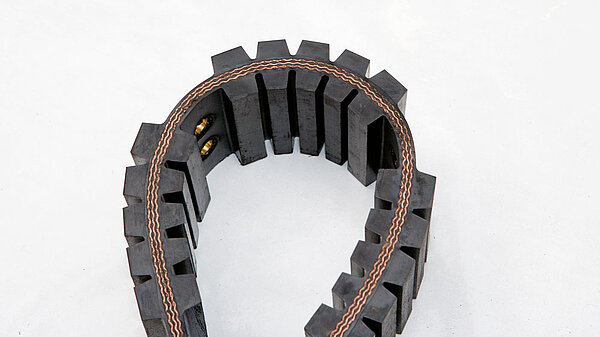

The KRONE NovoGrip slat and belt conveyor

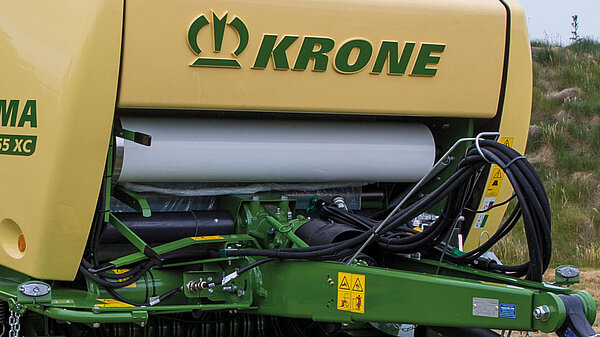

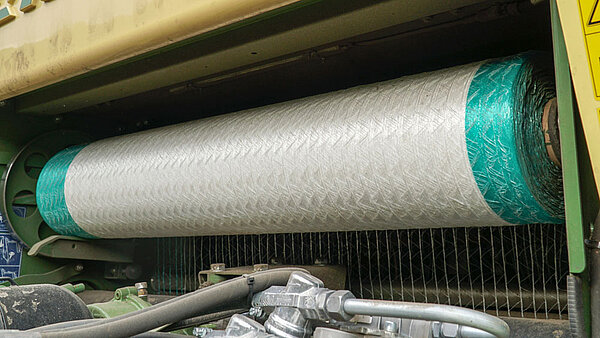

The KRONE tying unit

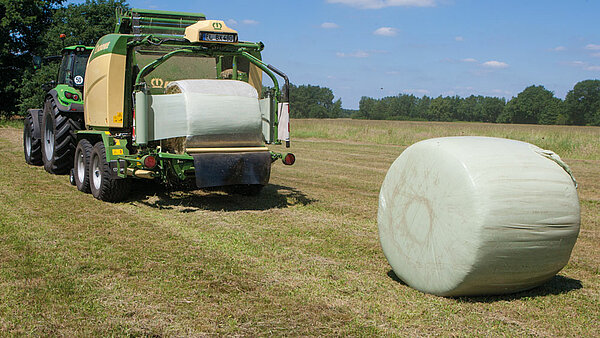

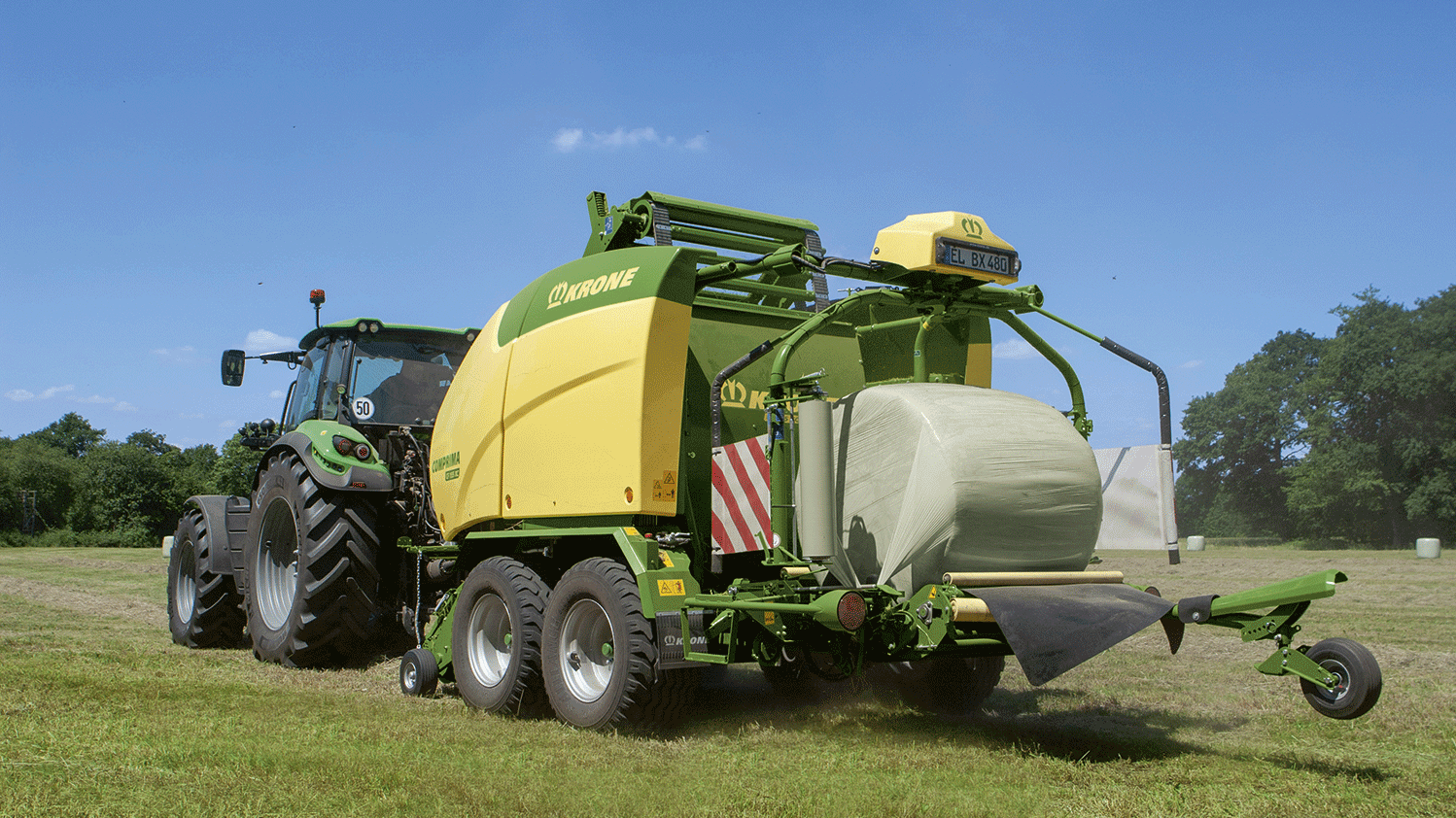

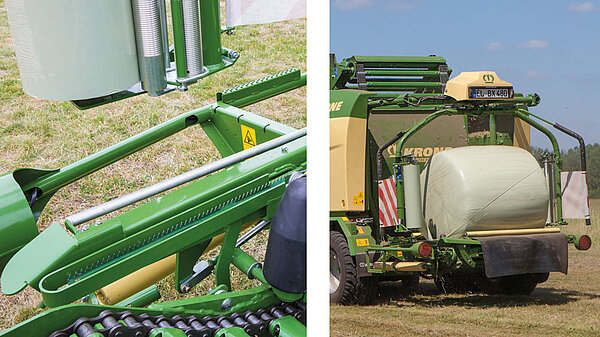

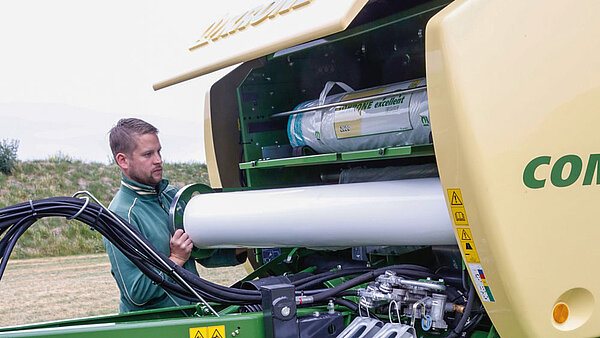

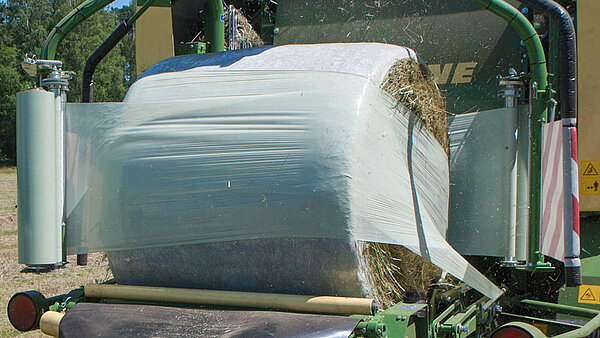

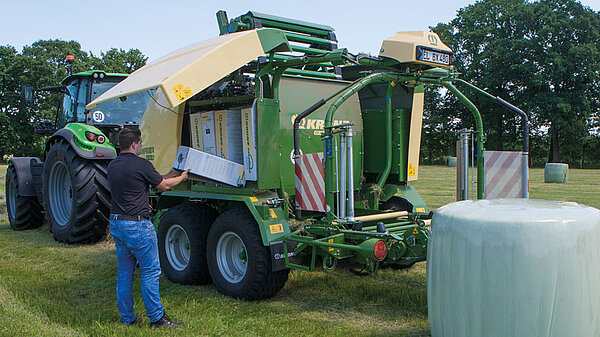

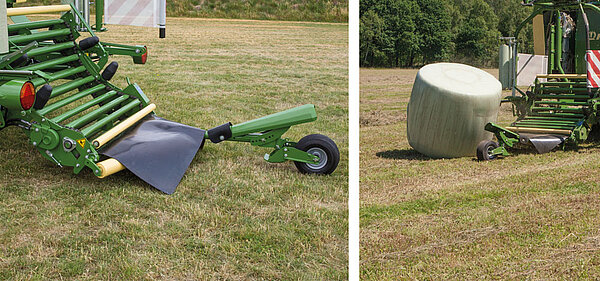

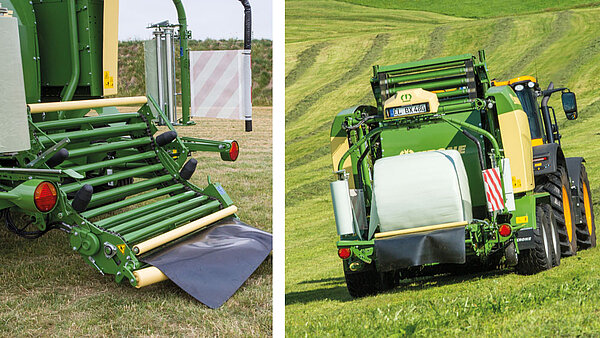

The KRONE wrapping device

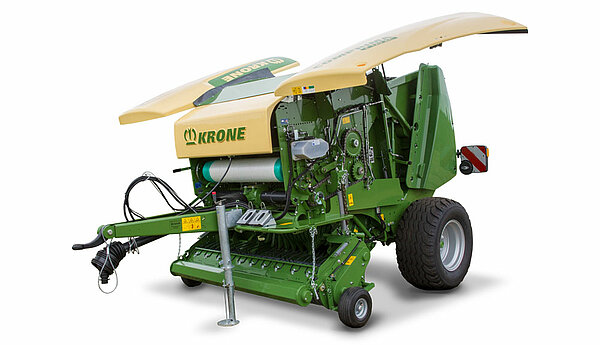

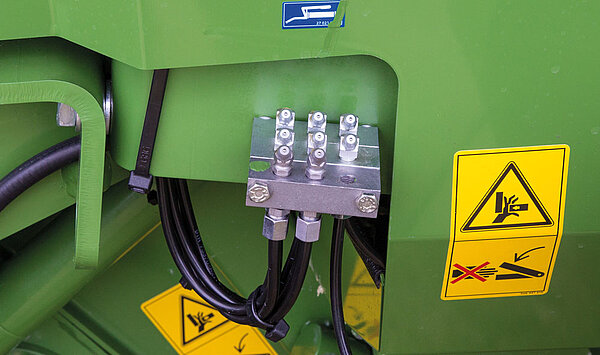

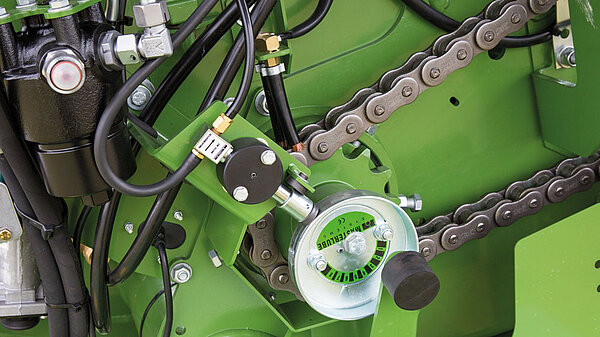

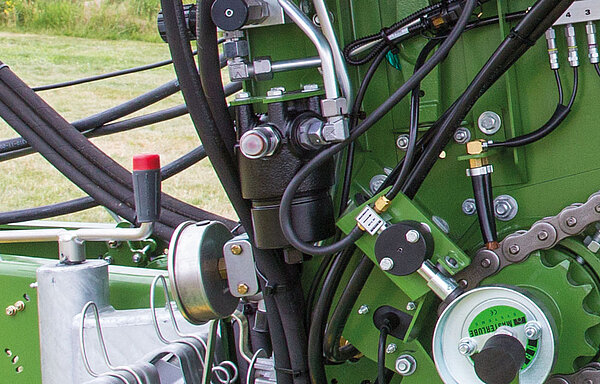

KRONE easy servicing

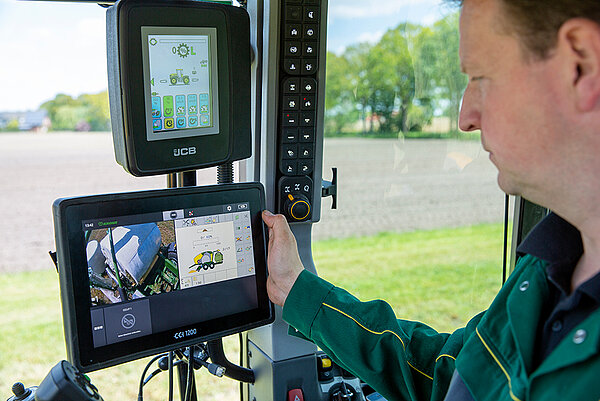

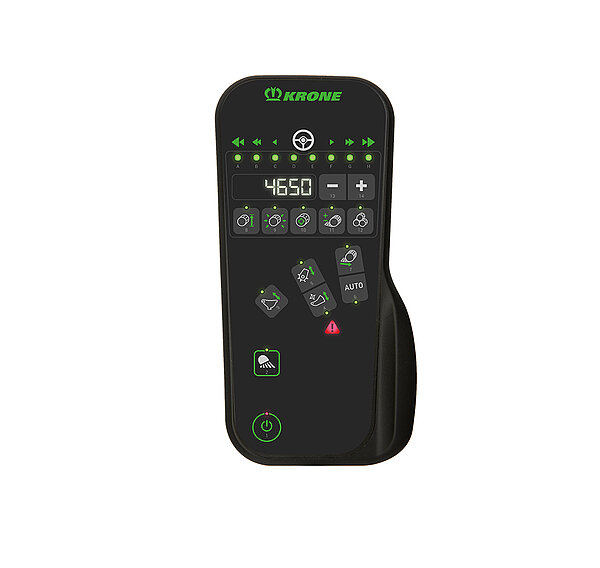

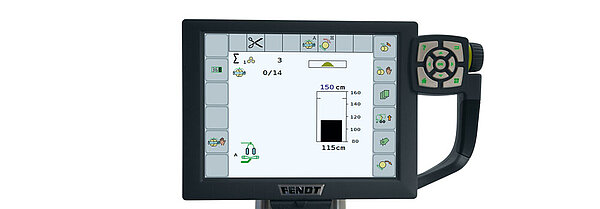

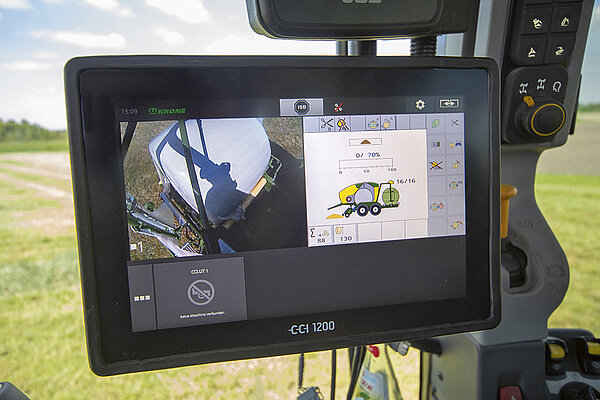

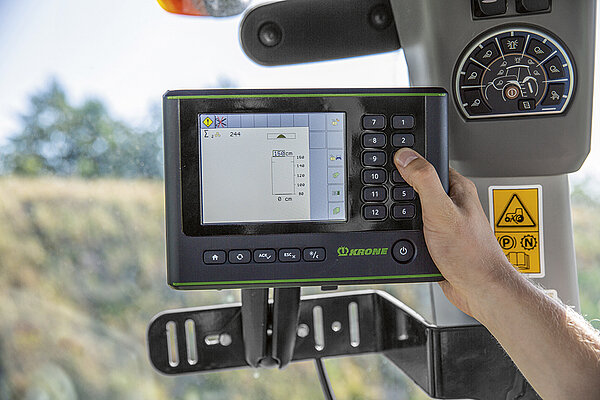

The KRONE operator terminals
Keep track of things
Keep track of things

To improve visibility, ­KRONE round balers can be optionally equipped with digital cameras. A camera in the bale chamber allows the tying cycle to be monitored, while a second camera at the rear monitors the wrapping process or can be used as a rear-view camera. Changeover is automatic and event-controlled – to ensure maximum control and safety in every application. Can be ideally combined with the CCI terminals or the 7" monitor – to ensure perfect control in every situation.

TIM (Tractor Implement Management)
TIM (Tractor Implement Management)

The use of TIM makes the operation of the Comprima even faster and more comfortable. Now, also some of the tractor functions are controlled via the on-board electronics of the Comprima. Once the bale has grown to the desired size, the TIM stops the tractor, starts the tying process and opens and closes the tailgate.

The right model for every field of use

Comprima
Comprima F 125 Comprima F 155
Type Round baler Round baler configure
Bale dimensions (m, Ø x w) 1.25 x 1.20 1.25 - 1.50 x 1.20 configure
Bale Chamber constant semi variable configure
Machine dimensions (m, l x w x h) 4.70 x 2.61 x 2.65 4.70 x 2.61 x 3.15 configure
Net wrapping series series configure
Chamber film wrapping optional optional configure
Pick-up working width (m) 2.15 2.15 configure
Power requirement kW/hp 48 / 65 51 / 70 configure
configure configure

The right model for every field of use

Comprima XC

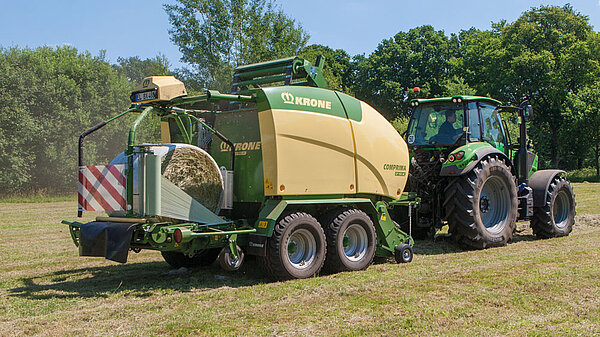

Comprima F 125 XC Comprima F 155 XC Comprima V 150 XC Comprima V 180 XC Comprima CF 155 XC Comprima CV 150 XC
Type Round baler Round baler Round baler Round baler Combination baler and wrappers Combination baler and wrappers configure
Bale dimensions (m, Ø x w) 1.25 x 1.20 1.25 - 1.50 x 1.20 1.00 - 1.50 x 1.20 1.00 - 1.80 x 1.20 1.25 - 1.50 x 1.20 1.00 - 1.50 x 1.20 configure
Bale Chamber constant semi variable variable variable semi variable variable configure
Machine dimensions (m, l x w x h) 4.70 x 2.61 x 2.65 4.70 x 2.61 x 3.15 4.99 x 2.61 x 2.99 5.29 x 2.61 x 3.15 6.57 x 2.96 x 3.41 7.24 x 2.96 x 3.08 configure
Schneidrotor XCut theoretische Schnittlande mit 17 Messern (mm) 64 64 64 64 64 64 configure
Schneidrotor XCut theoretische Schnittlande mit 26 Messern (mm) 42 42 42 42 42 42 configure
Net wrapping series series series series series series configure
Chamber film wrapping optional optional - optional optional - configure
Pick-up working width (m) 2.15 2.15 2.15 2.15 2.15 2.15 configure
Power requirement kW/hp 48 / 65 51 / 70 51 / 70 59 / 80 74 / 100 74 / 100 configure
configure configure configure configure configure configure

The all-rounder for any type of crops
