EasyCut B

Mower combinations

EasyCut B

Mower combinations

  • EasyCut B 870 and B 1000 without conditioner
  • EasyCut B 750, B 890, B 970 without conditioner
  • EasyCut B 950 Collect without conditioner, with merger augers
  • EasyCut B 870 CV and B 1000 CV with steel tine conditioner
  • EasyCut B 870 CR and B 1000 CR with roller conditioner
  • EasyCut B 870 CV Collect and 870 CR Collect, B 1000 CV Collect and B 1000 CR Collect with merger belts
  • KRONE quick-change blades
  • KRONE SafeCut: Individually protected discs
  • KRONE SmartCut: Stripe-free cutting
  • KRONE CombiFloat: Uniform ground pressure across the entire work width
  • Operator comfort to the max

Product video

EasyCut B – KRONE mower combinations

Introducing the new EasyCut B 870 and EasyCut B 1000, KRONE adds two models to its range of butterfly combinations. Compared with the previous butterfly mowers without conditioners, the new models stand out for a modern design and curved styling, taut curtains and an optimised weight thanks to a new headstock.

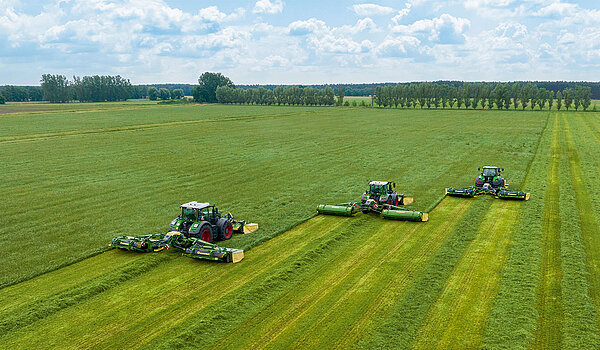

Mowing with maximum efficiency

NEW: EasyCut B 880 CV/CR (Collect) | B 1050 CV (Collect)

With the EasyCut B 880 CV/CR (Collect) and B 1050 CV (Collect), KRONE presents two new and highly efficient Butterfly combinations. They come with conditioners as a standard feature and can optionally be equipped with cross conveyor units.

Learn more

Product features

KRONE mower combinations for maximum efficiency
KRONE mower combinations for maximum efficiency
  • ­­KRONE SmartCut: Stripe-free cutting
  • ­­KRONE quick-change blades
  • ­­KRONE SafeCut: Individually protected cutting discs
  • EasyCut B 870 and B 1000 without conditioner
  • EasyCut B 950 Collect without conditioner, with auger conveyors
  • EasyCut B 880 and B 1050 CV/CR Collect
  • EasyCut B 1050 CV: With BiG Swath System

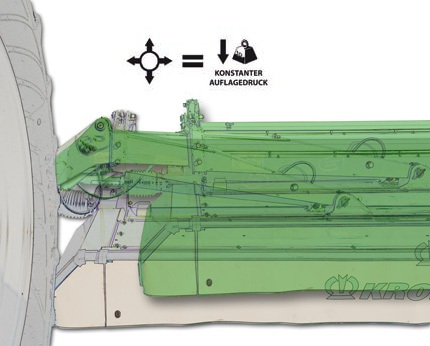

  • ­­KRONE Combi Float: Uniform bearing pressure across the entire work width
  • EasyCut B 870 CV/CR and B 1000 CV/CR Collect

With innovative technology and excellent performance, the EasyCut B mowers set new standards in terms of efficiency. Whether dense grass, high field forage or difficult meadows – the EasyCut B models are up to every challenge. They perfectly adapt to the ground conditions and reliable follow the contour. The result: Even cuts without any compromise.

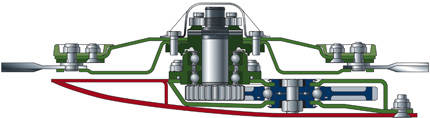

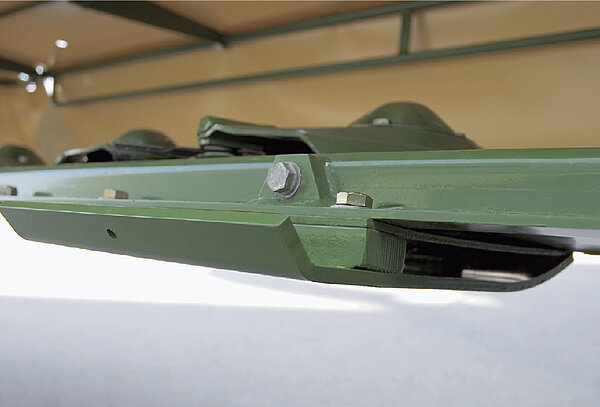

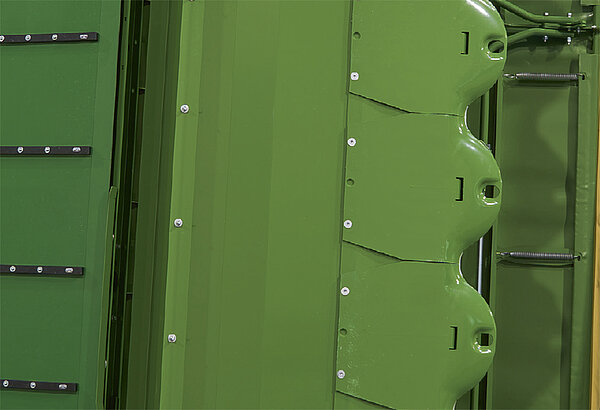

The KRONE cutterbar
The KRONE cutterbar
  • Fully welded cutterbar: Robust, sealed and permanently lubricated
  • Durable satellite drive with large spur wheels: Very quiet running and optimum power transmission

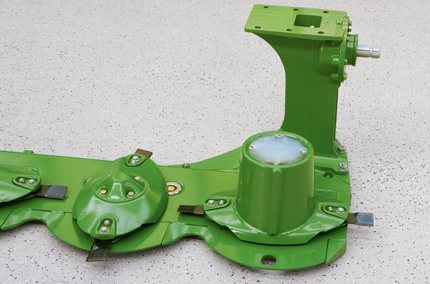

  • Without inner shoe for trouble-free mowing

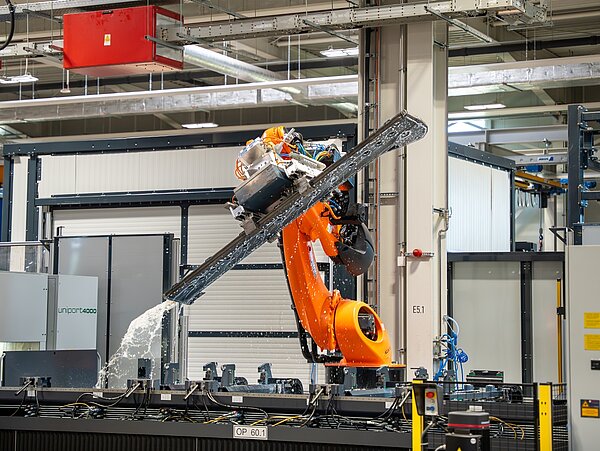

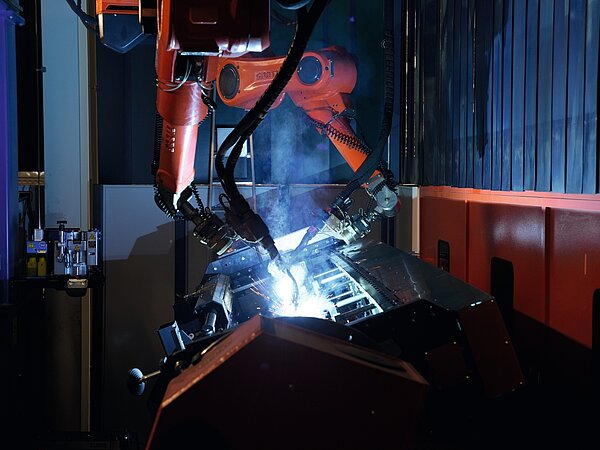

The completely welded cutterbar meets the highest quality standards, will remain leaktight and retain its shape even after long-term use. The large, oil-immersed spur wheels withstand sustained peak loads and are particularly quiet during operation.

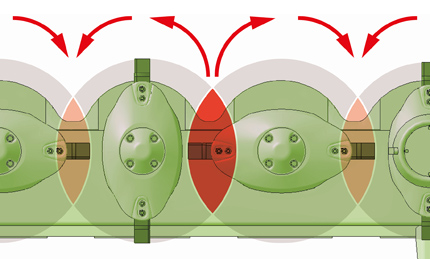

­­KRONE SmartCut and spreading modes
­­KRONE SmartCut and spreading modes

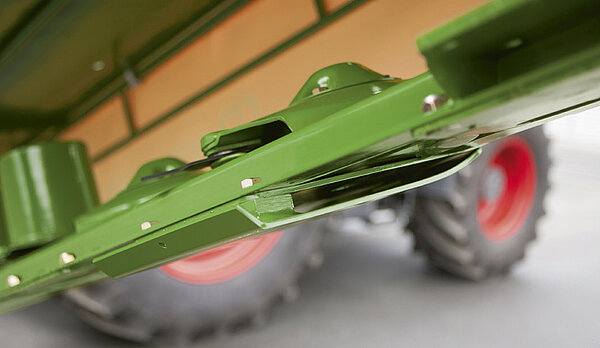

  • The wedge-shaped cutterbar guarantees clean cuts
  • Heavy-duty spur gears run in double bearings
  • Widely spaced bearings

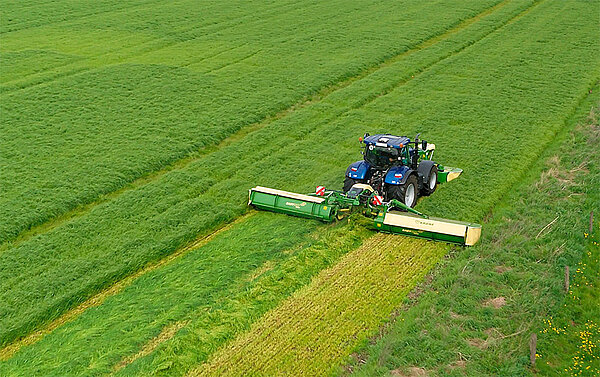

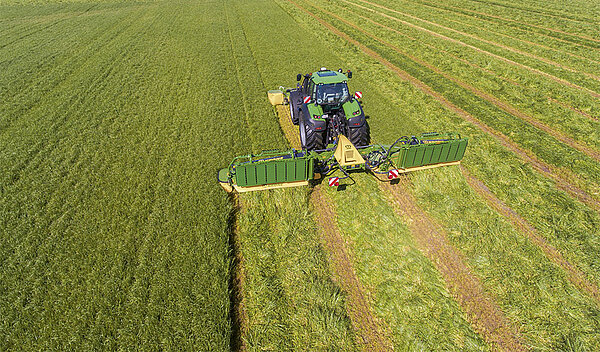

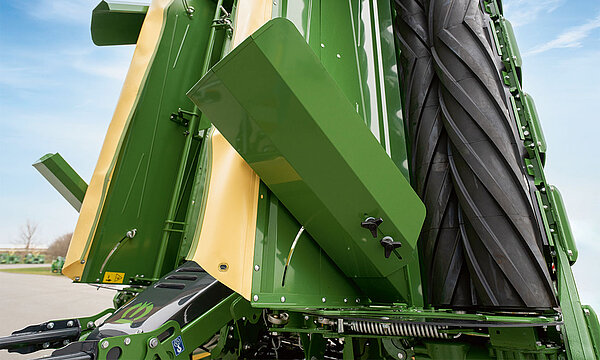

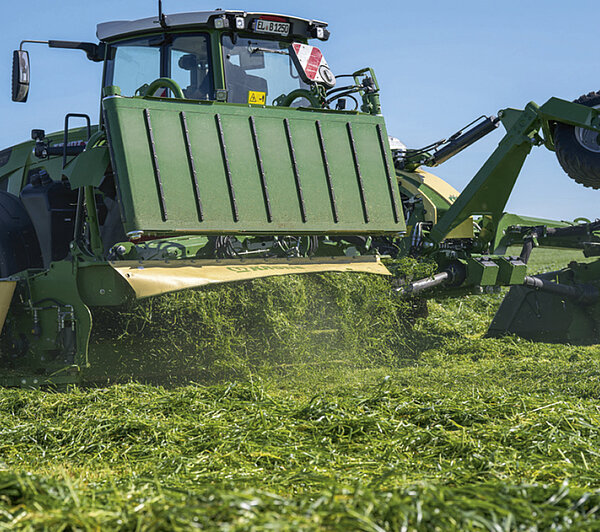

  • Swathing or wide spreading depending on needs

The wedge-shaped cutterbar offers great flexibility to adjust through a large range of settings and leave a short stubble in meadows and pastures as well as long stubble in long-stemmed forage crops. An EasyCut mower delivers a reliable performance and clean cut.

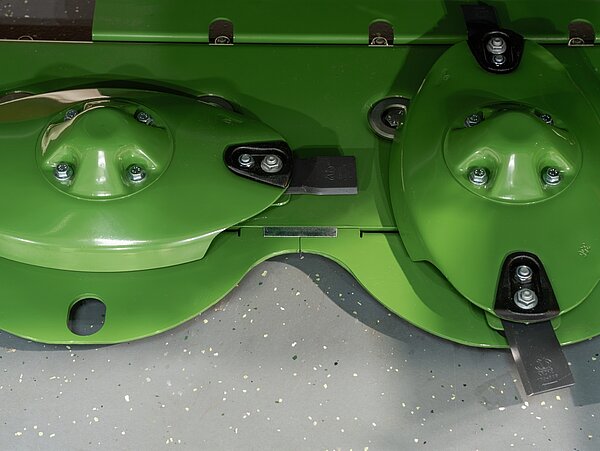

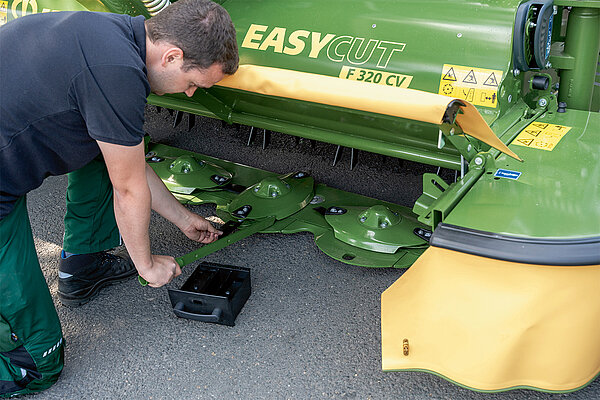

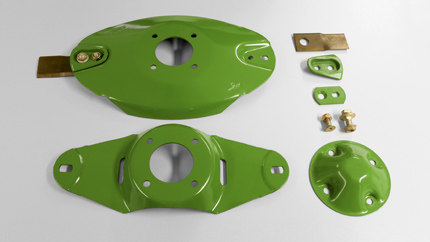

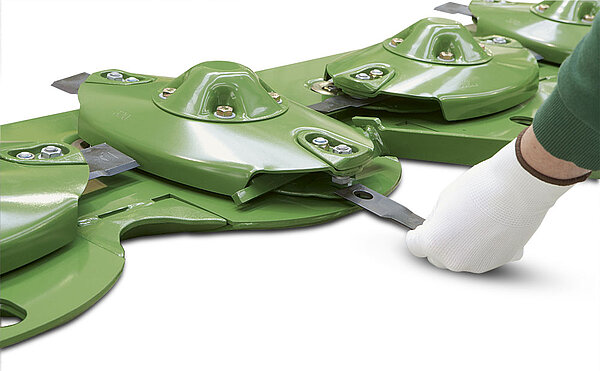

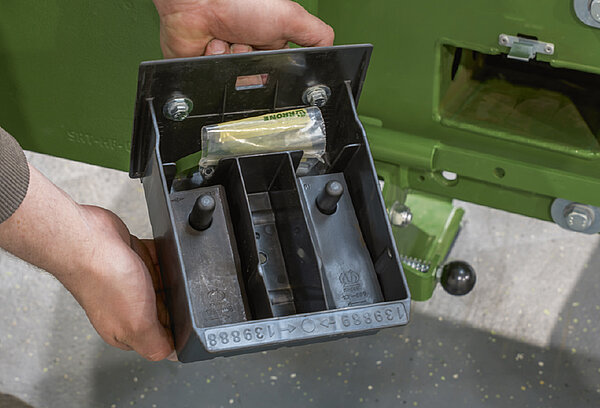

The KRONE quick-change blade system
The KRONE quick-change blade system
  • Quick-change blades are standard specification, allowing operators to swap blades in the field quickly
  • Modular disc design

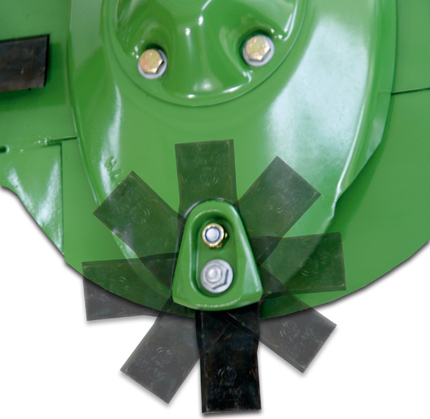

  • Minimum blade wear: 360° blade Action
  • Excellent cuts from SmartCut: Optimum blade overlap

There are many reasons for choosing an EasyCut disc mower. Just think of the quick-change blades, the inexpensive wear parts and the perfect disc arrangement for stripeless cuts.

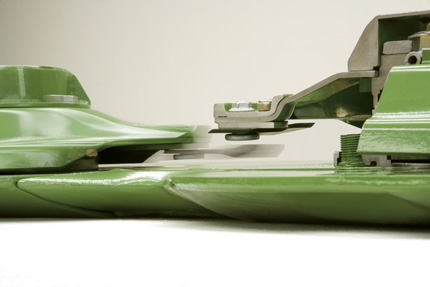

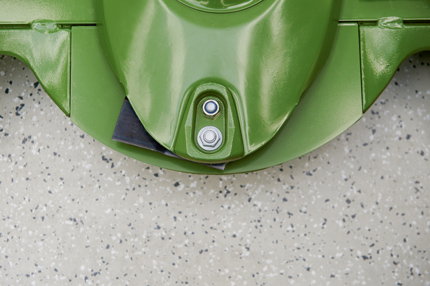

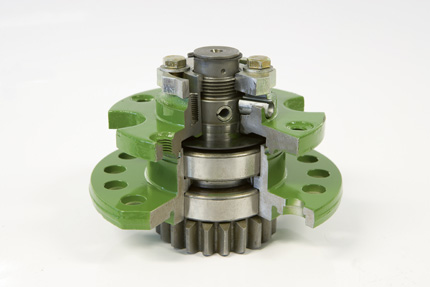

The KRONE SafeCut system
The KRONE SafeCut system
  • Fully protected drives for greater reliability
  • No collision with neighbouring cutting discs
  • Wear-free

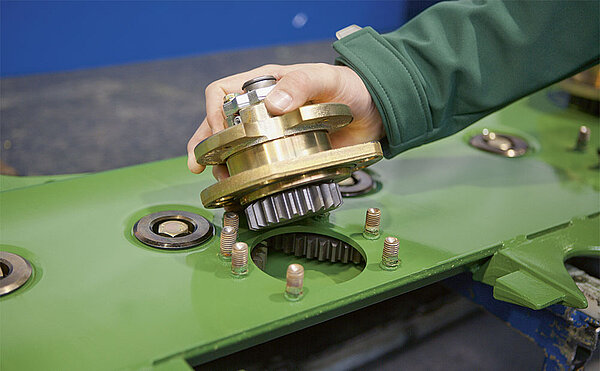

  • Quick-change roll pins for minimum downtime and costs

Colliding discs may cause damage and involve costly repairs. ­­KRONE SafeCut offers maximum protection. The award winning system on all EasyCut models offers a unique level of protection and operator comfort. SafeCut is part of the basic equipment of all EasyCut F series disc mowers.

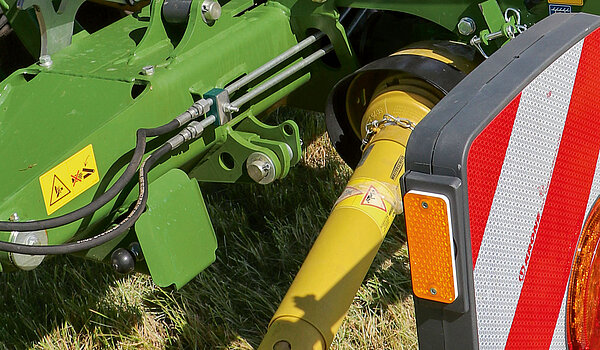

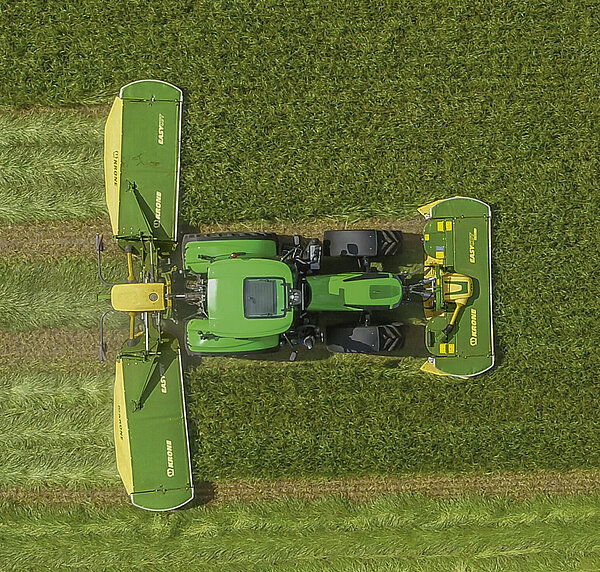

The KRONE DuoGrip centre-of-gravity suspension

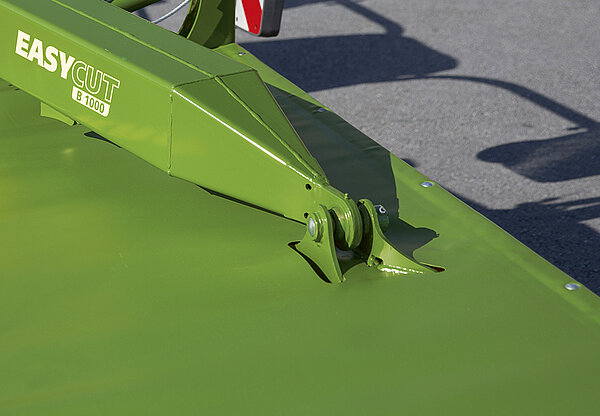

The KRONE DuoGrip centre-of-gravity suspension
  • Patented DuoGrip attachment of the cutterbar: Mounted in the centre of gravity and controlled by parallel arms
  • Uniform bearing pressure across the entire work width
  • Optimum guidance: Less side pull, clean cuts
  • Continuous suspension for superb contouring and sward protection

The ­­KRONE DuoGrip suspends the EasyCut mowers in their centre of gravity and guides them with suspension arms. This design allows the cutterbar to follow the ground contours even more accurately for a better protection of the sward. and high-quality forage even in difficult conditions.

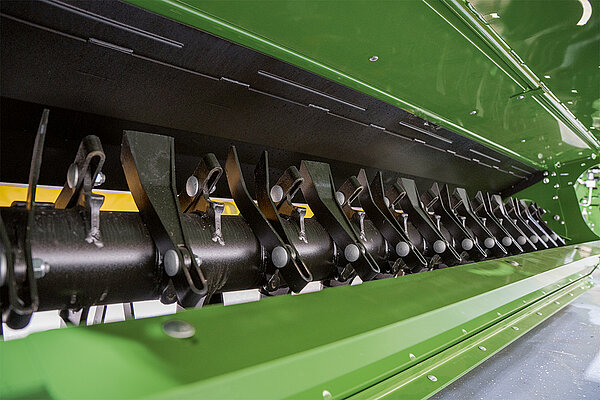

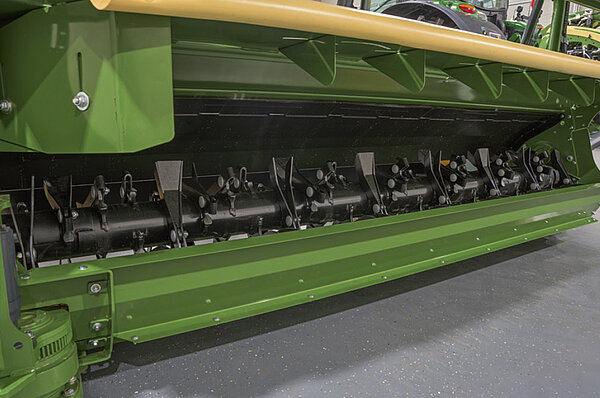

The ­­KRONE tine conditioner
The ­­KRONE tine conditioner
  • V-shaped steel tines at steep angles give intensive and perfect conditioning
  • The driveline dispenses with belts for frictional and low-maintenance Connections

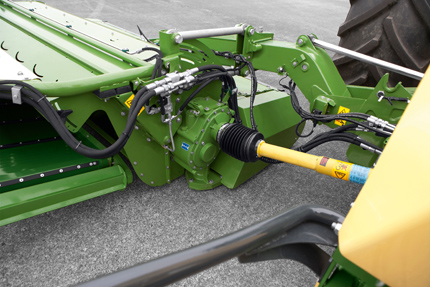

  • Great operator comfort from mechanical conditioner gearbox

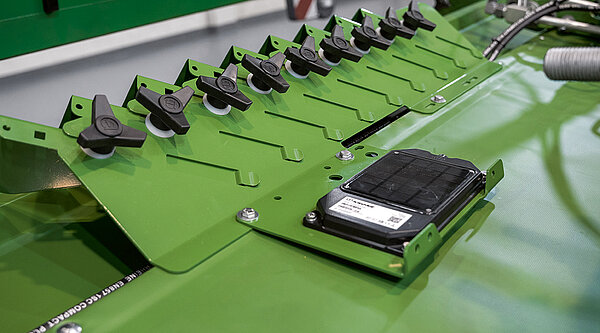

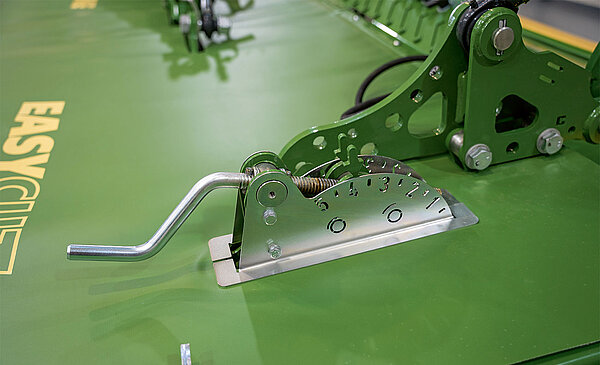

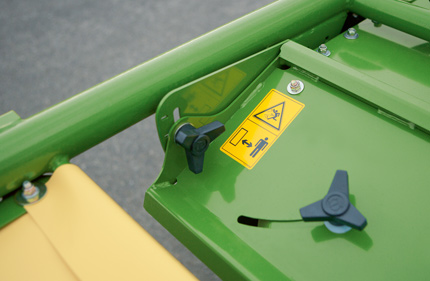

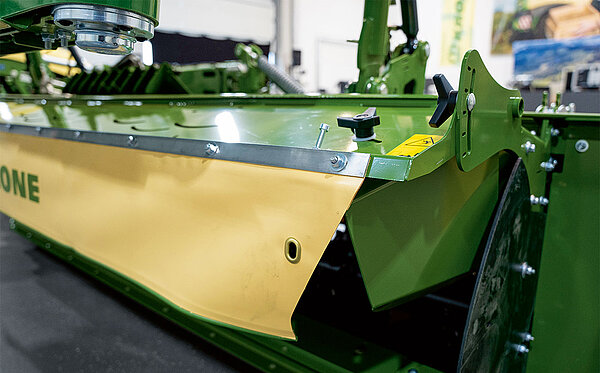

  • Adjustable baffle plates for enhanced conditioning

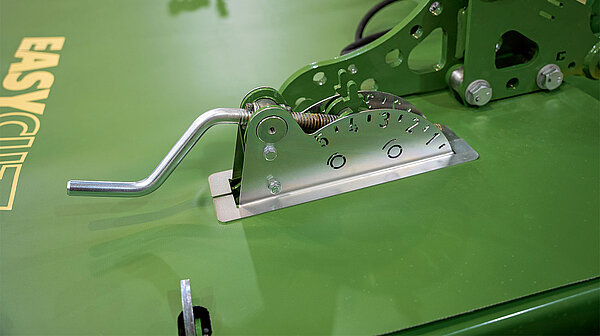

Efficiency is one parameter in hay and forage harvesting, quality is another. The high-performance KRONE CV conditioner with V-shaped steel tines spreads the crop at the full working width. The 640 mm diameter rotor and the helical arrangement of the tines warrant a continuous crop flow, high throughputs and superior conditioning.

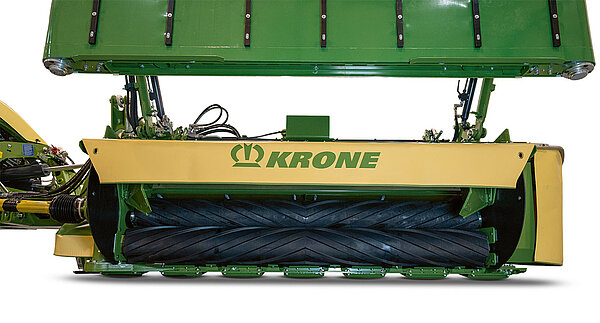

The KRONE CR roller conditioners
The KRONE CR roller conditioners

The roller conditioner models (polyurethane rollers or M-Rolls)

  • The roller conditioner models (rubber rollers or M-Rolls)

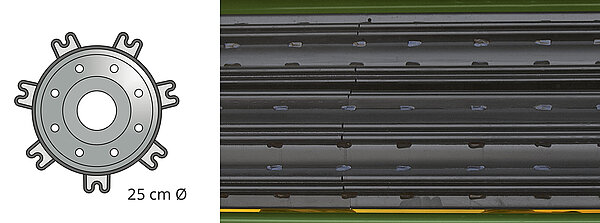

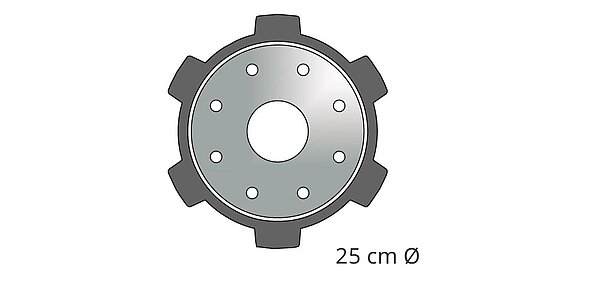

  • Consistent crop flow by 25 cm diameter rollers
  • High throughput from powered crop processor rollers
  • Top quality from profiled rollers – thanks to their ‘meshing effect’
  • Choice of roller conditioners – polyurethane rollers or steel M-Rolls

Leafy crops like Lucerne or clovers require a different type of conditioning than crops that are predominantly grass. The CR roller conditioners give particularly gentle treatment, leaving the delicate leaves intact which are so rich in protein and safeguarding the value of the feed. Spreading the crop will speed up wilting.

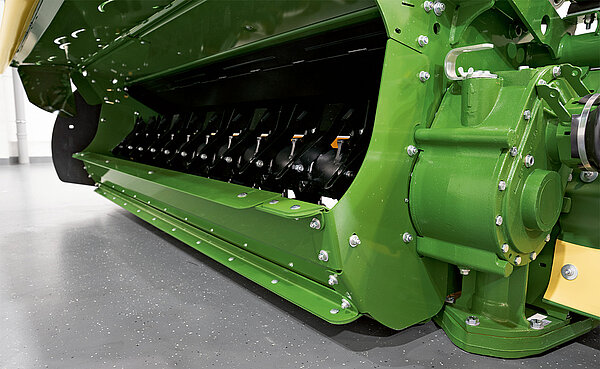

The KRONE Collect system
The KRONE Collect system
  • Variable swath width by means of optional accelerator rollers

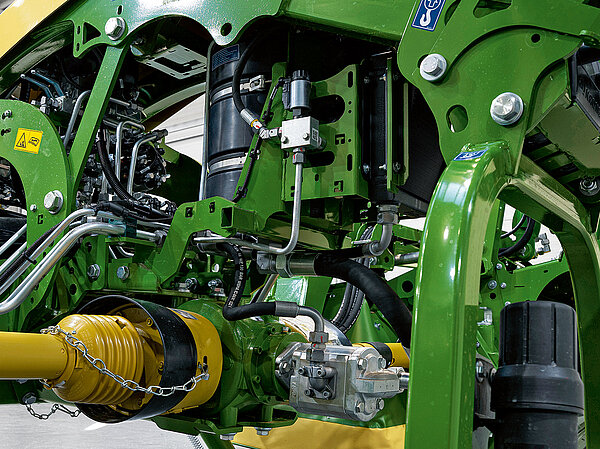

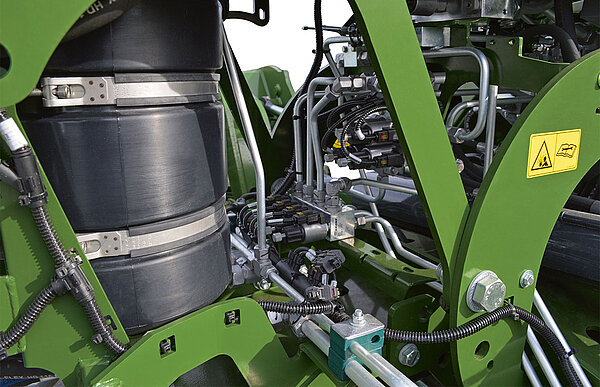

  • Tractor-independent oil supply through on-board hydraulic system
  • Automatic activation and deactivation of the cross conveyor belts
  • Divided conditioner tray for loss-free crop transfer

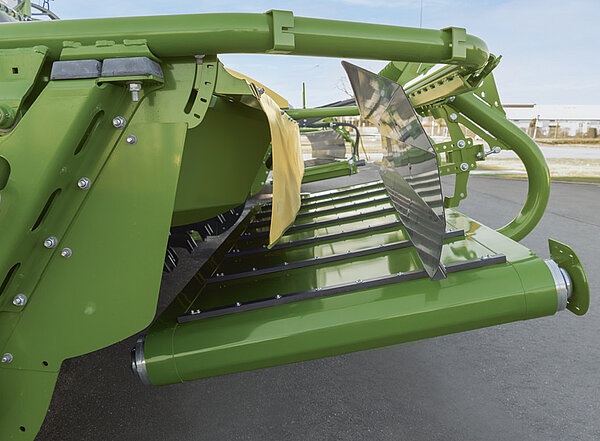

  • Extra wide 910 mm cross conveyor belts handle large volumes of crop

The ­­KRONE Collect system offers multiple setting options suitable for the most diverse applications around the world. The ­­KRONE Collect cross conveyor belts deliver clean and perfect swaths that are easily picked up by the following harvesters for loss-free harvests.

Resettable cross conveyor belts
Resettable cross conveyor belts

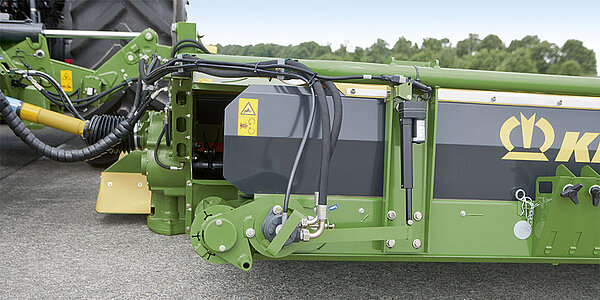

The swath width of the EasyCut B CV and CR Collect can be preset by means of a hole pattern. The fine adjustment in keeping with the harvesting conditions is made via the belt speed and the optional accelerator rollers.

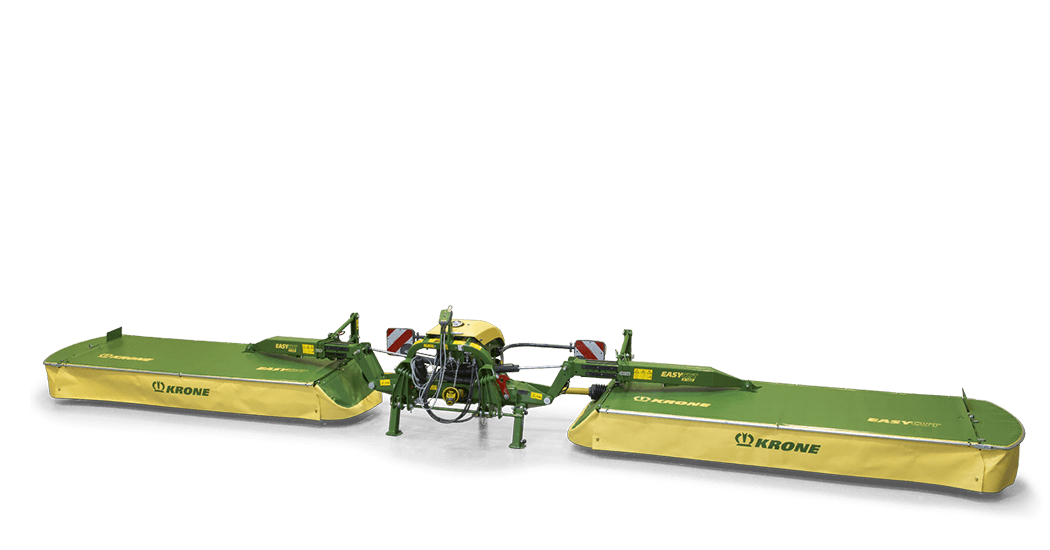

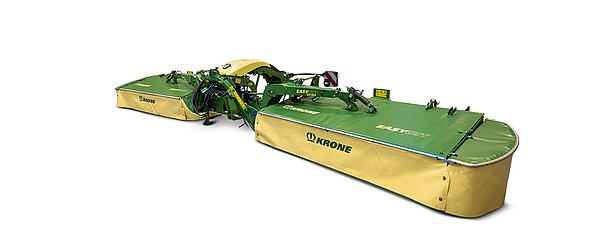

EasyCut B 870 · B 1000 - Butterfly combinations without conditioners
EasyCut B 870 · B 1000 - Butterfly combinations without conditioners
  • Variable, up to 10.00 m work widths on EasyCut B 1000
  • Weight-optimized headstock reduces rear axle weight and ground pressure.

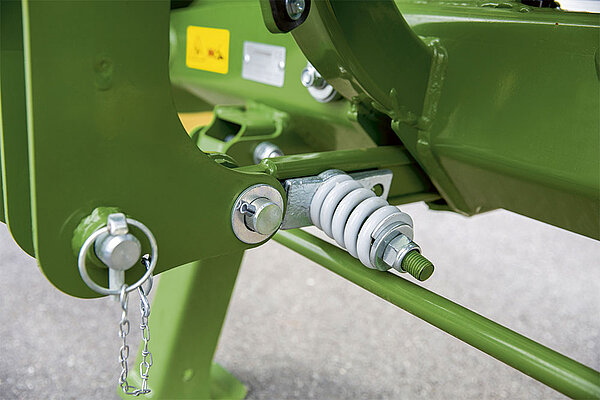

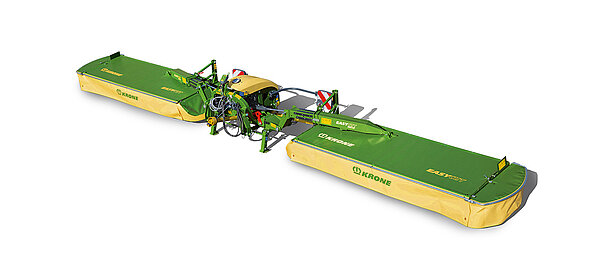

  • Adjustable non-stop impact damage protection system is a standard feature
  • SmartCut and SafeCut ensure perfect cuts and maximum uptime

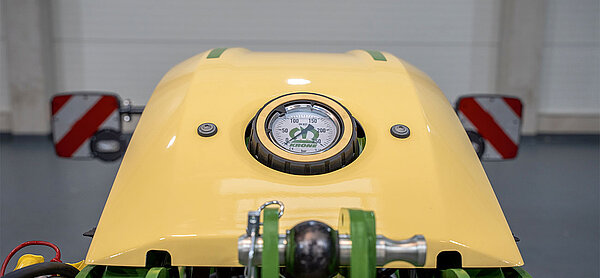

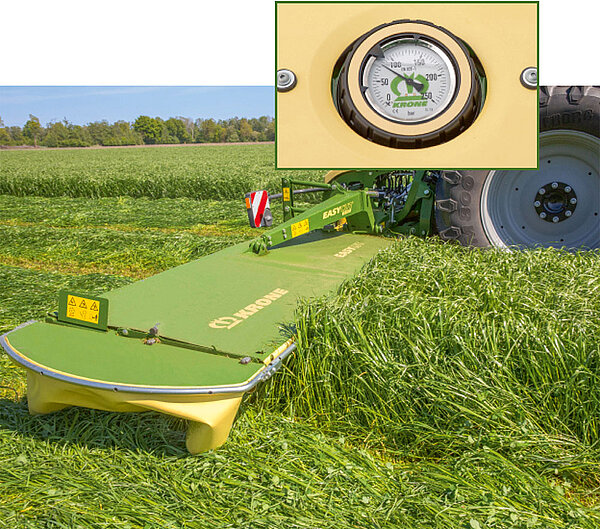

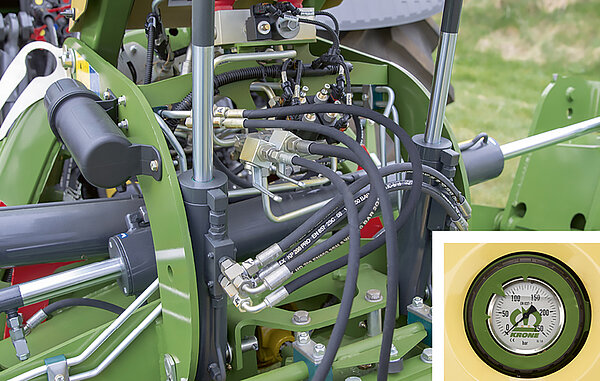

  • Hydraulic suspension as a standard feature

In the EasyCut B 870 and B 1000, ­­KRONE is presenting two powerful mower combinations that feature sophisticated technology and state-of-the-art design. With its optimised weight and hydraulic relief, the headstock not only protects the turf but also allows for use of smaller tractors.

EasyCut B 870 · B 1000 – Variabel and convenient
EasyCut B 870 · B 1000 – Variabel and convenient

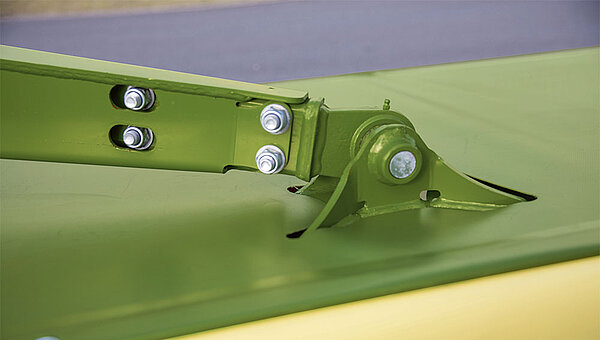

  • The outrigger arms adjust to two positions (EasyCut B 870) or infinitely variably (EasyCut B 1000) to provide optimum overlapping

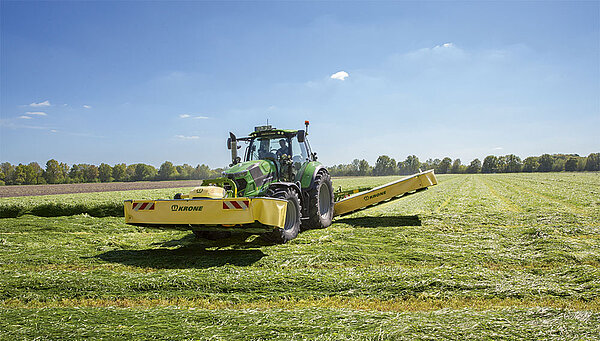

  • Optimum overlapping eliminates striping in curves and on slopes
  • Hydraulic bearing pressure control conveniently from the cab

EasyCut B 870 and B 1000 are no-compromise machines. The infinitely variable arm length control adapts mower unit overlaps to the current conditions without compromising on acreage and output.

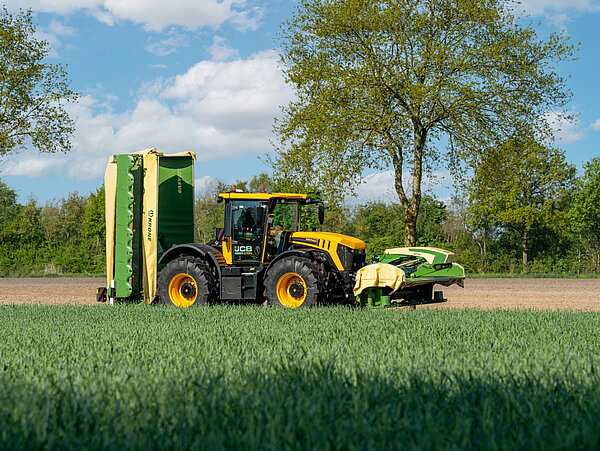

EasyCut B 870 · B 1000 - Easy use
EasyCut B 870 · B 1000 - Easy use

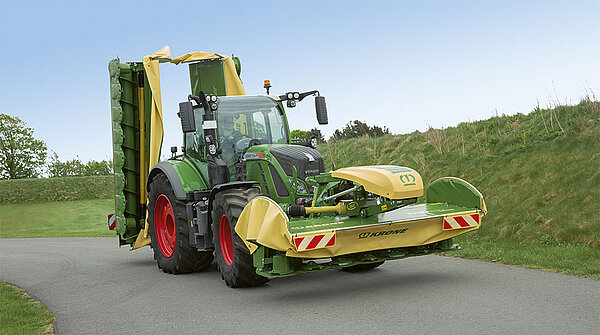

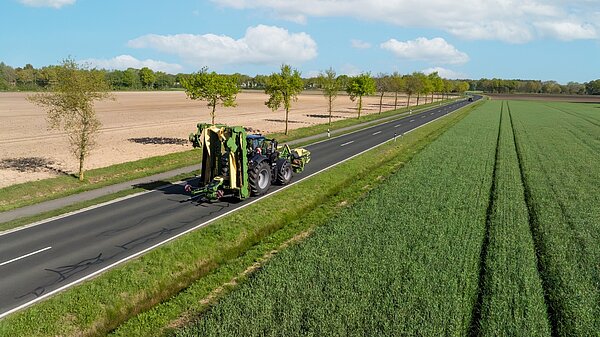

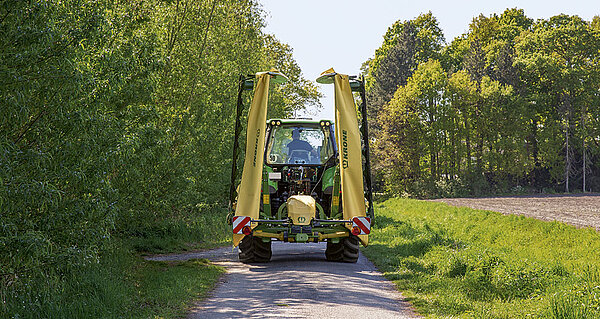

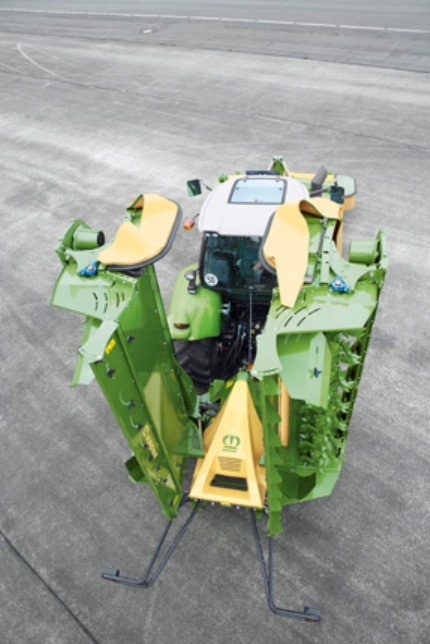

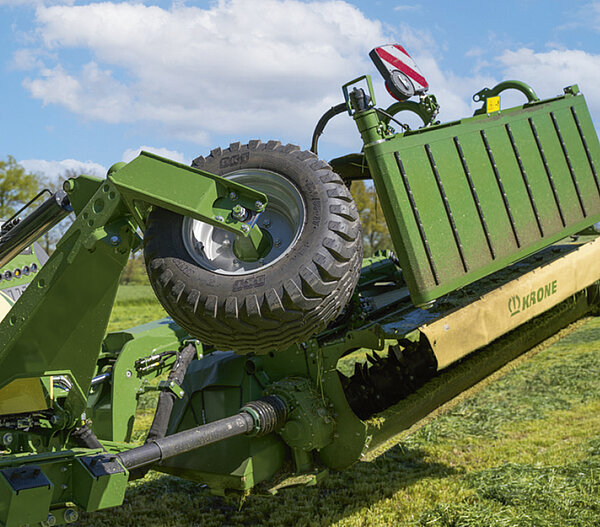

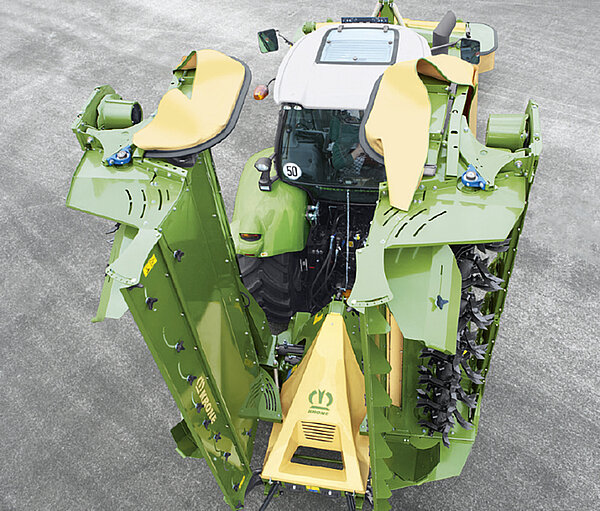

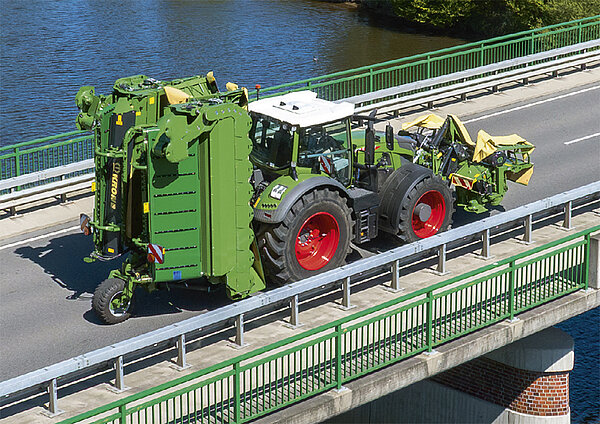

  • Safe road travel thanks to 95° transport angle. Less than 4 m transport height and 3 m width.

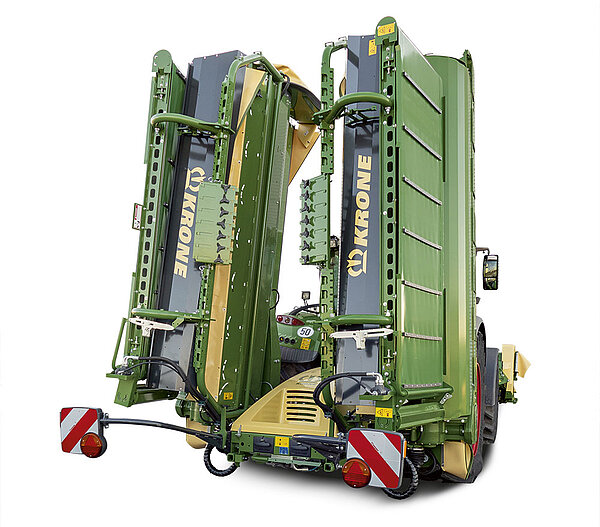

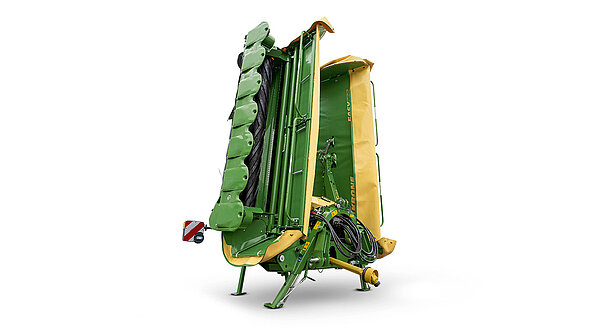

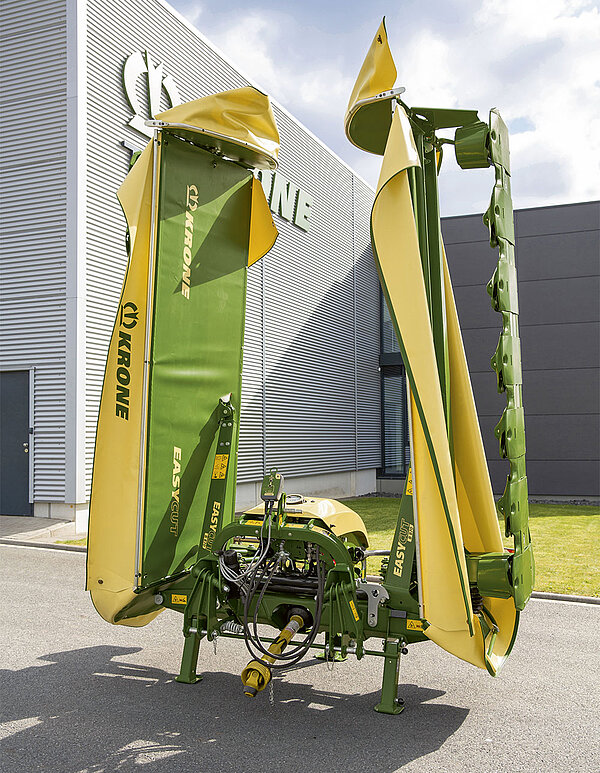

  • Compact storage position on sturdy support jacks

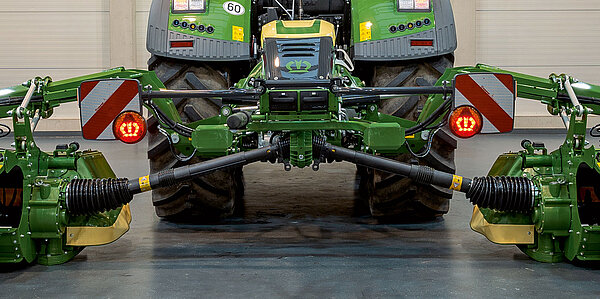

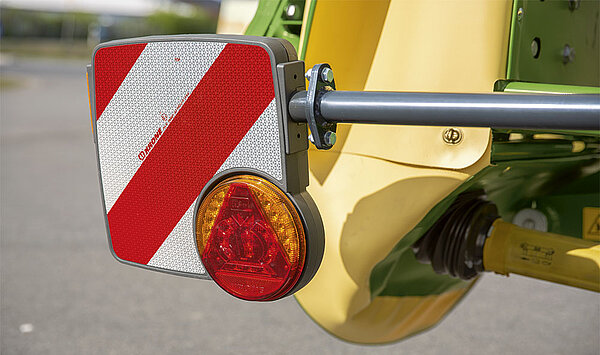

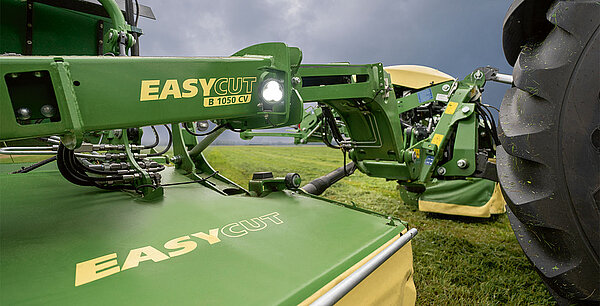

  • LED lights and reflecting warning panels are standard specification

The carefully designed folding mechanism makes for a compact storage position. Road travel is safe, too thanks to the compact transport dimensions.

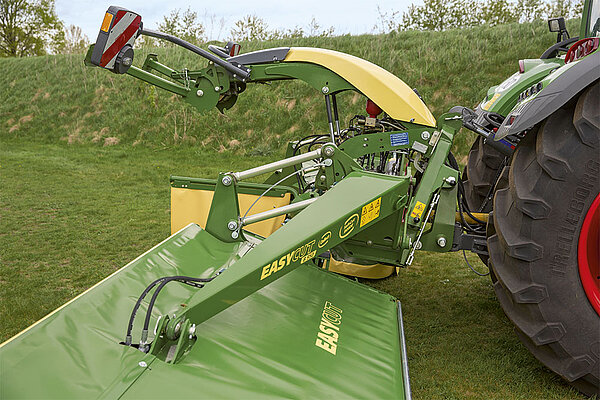

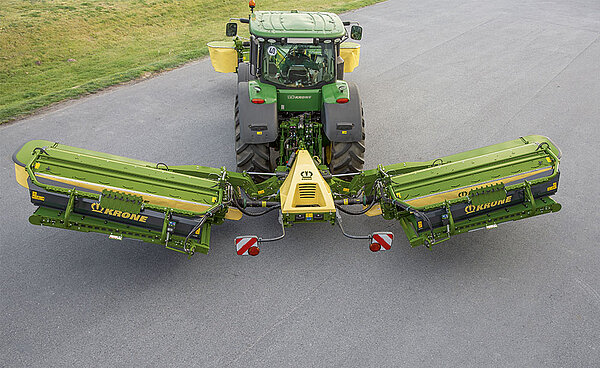

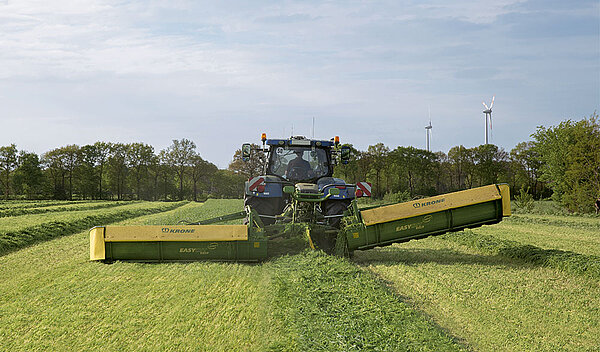

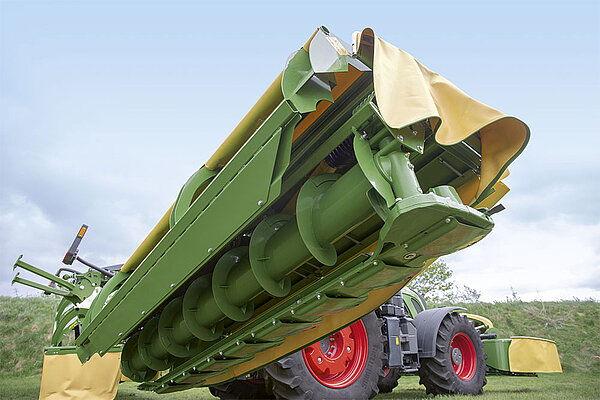

EasyCut B 950 Collect - Mower combination without conditioner, with auger conveyors
EasyCut B 950 Collect - Mower combination without conditioner, with auger conveyors

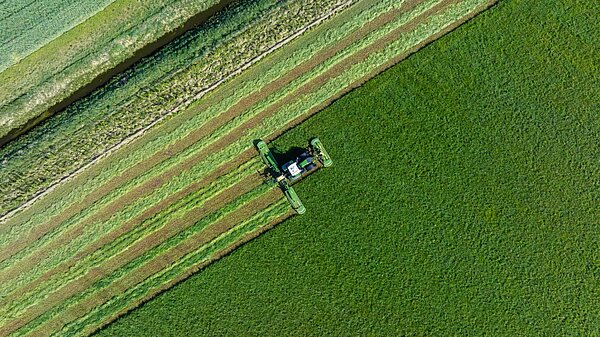

  • Light-weight and compact mower combination without conditioners
  • 9.45m working width including front mower

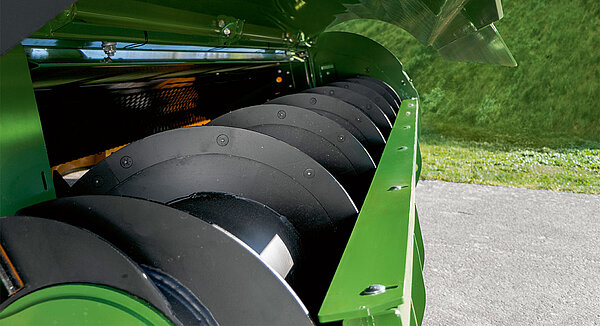

  • Massive auger conveyors merge the swaths

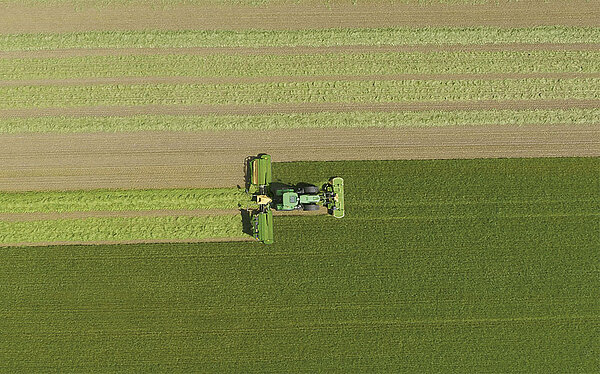

  • Three swathing modes are selected from the cab: individual swathing, partial width swathing and wide spreading
  • Hydraulic mower suspension controlled from the cab

The EasyCut B 950 Collect is a very compact mower combination that has auger conveyors but no conditioners. The massive augers merge large volumes of crop such as green rye into a uniform and clean swath.

ISOBUS Comfort Control Unit
ISOBUS Comfort Control Unit

With the help of the optional ISOBUS-compatible comfort control, the functions of the mower can be intuitively and comfortably operated via the tractor's own terminals as well as the DS 500, CCI 800, or CCI 1200 with touchscreen through Load-Sensing.

PreSelect preselection operation
PreSelect preselection operation

For the EasyCut B 950 Collect, the hydraulic functions can be pre-selected via the PreSelect DS 50 or alternatively using the PreSelect Digital via the terminal, and are then executed via the tractor-side control units.

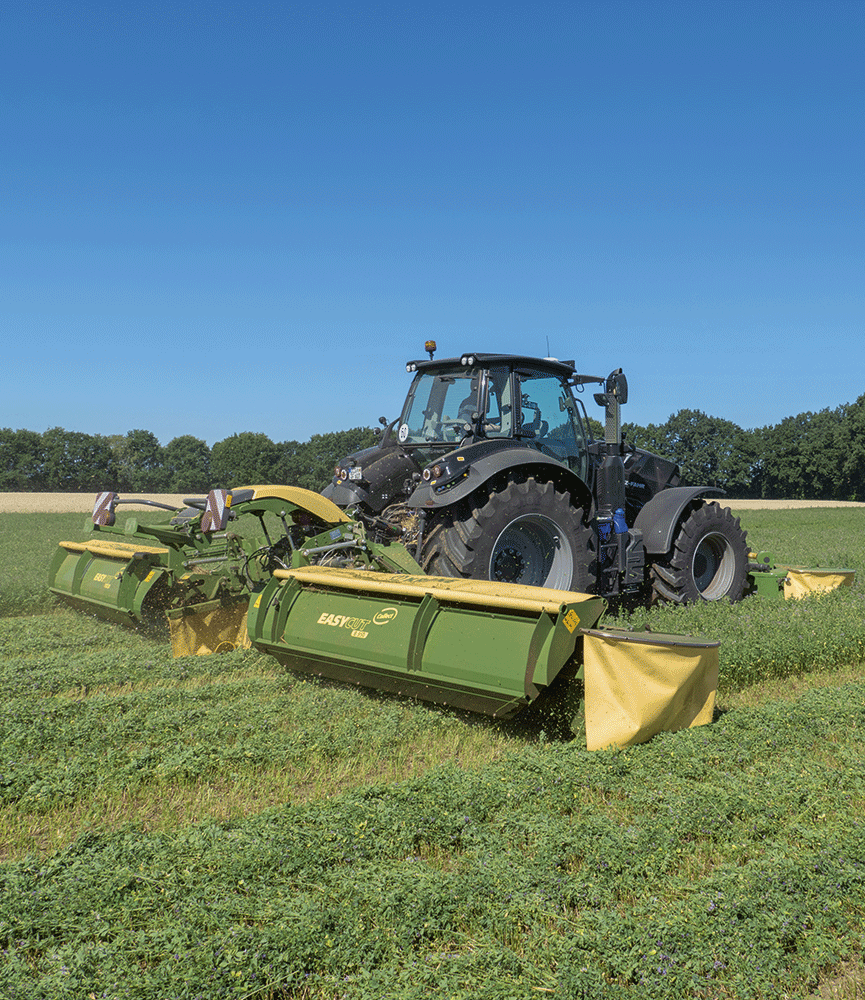

EasyCut B 870 CV · B 870 CR - Mower combinations with conditioner
EasyCut B 870 CV · B 870 CR - Mower combinations with conditioner
  • 8.70 m work width
  • EasyCut B 870 CV with tine conditioner
  • EasyCut B 870 CR with roller conditioner (rubber rollers or M-Rolls)
  • A compensation rocker ensures the bearing pressure is uniform on either side
  • A standard impact damage protection system gives effective protection

EasyCut B 870 CV and CR not only utilise the power of your tractor but also save time and costs. The EasyCut B 870 with conditioners and extra wide cross conveyor belts has a versatile range of applications. This machine enables you to cut, condition and spread or swath the material in one single pass.

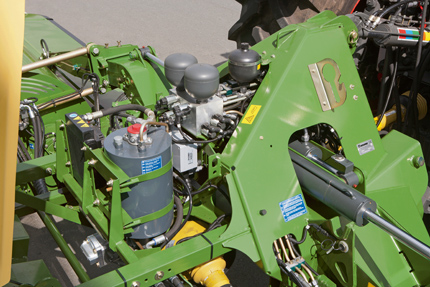

EasyCut B 1000 CV · B 1000 CR - Featuring conditioners and KRONE Combi Float suspension control
EasyCut B 1000 CV · B 1000 CR - Featuring conditioners and KRONE Combi Float suspension control
  • High work rates from up to 10.10 m working widths
  • EasyCut B 1000 CV with steel tine conditioner
  • EasyCut B 1000 CR with an aggressive roller conditioner

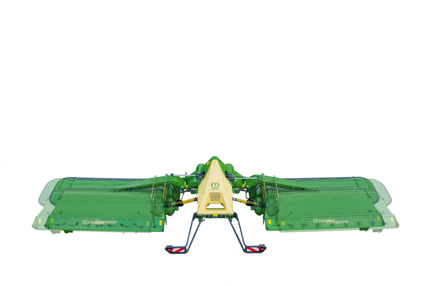

  • Hydro-pneumatic compensation for uniform ground pressures
  • A standard break-back system gives effective protection

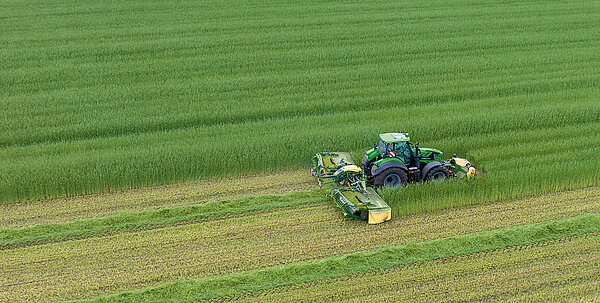

The EasyCut B 1000 CV and EasyCut B 1000 CR stand out for a huge 10.10 m work width and their powerful CV or CR conditioners. Another high-profile feature is the world-first Combi Float – the automatic and hydro-pneumatic control system.

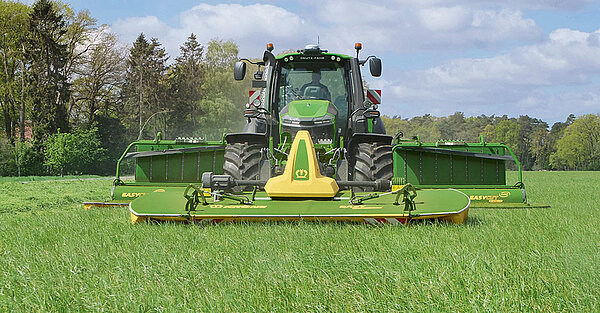

EasyCut B 1000 CV · B 1000 CR – Accurate overlaps
EasyCut B 1000 CV · B 1000 CR – Accurate overlaps

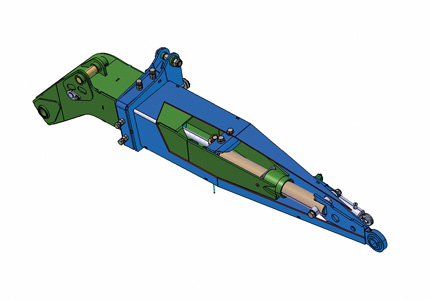

  • Hydraulic overlap adjustment
  • Large setting range of up to 40cm per side
  • Cleanest cuts in bends and on slopes

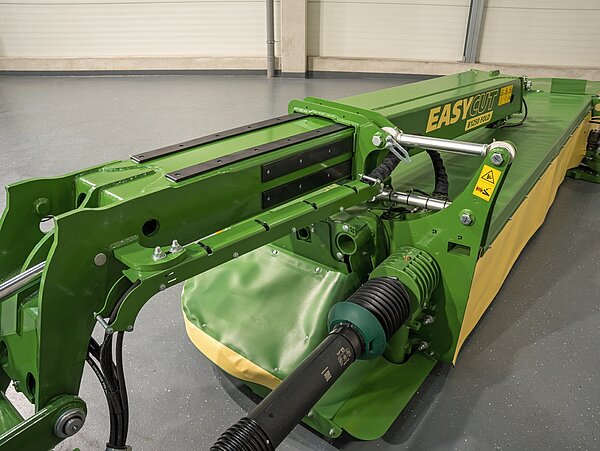

The standard hydraulic side shift feature on the rear mounted mower eliminates any striping and maximizes efficiency. Cutting straight lines, the machine operates at the maximum width and minimum overlap, whereas larger overlaps and a narrow working width is selected when cutting curves. As you operate on the slope, simply retrieve a stored sideshift range to the right or left and avoid drifting and striping.

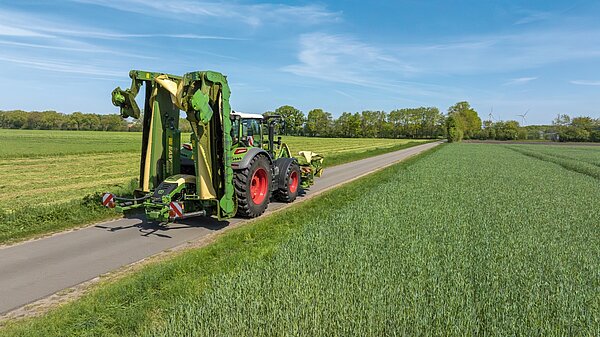

EasyCut B 1000 CV · B 1000 CR – Excellent handling in all situations
EasyCut B 1000 CV · B 1000 CR – Excellent handling in all situations
  • Convenient headland function by fingertip control

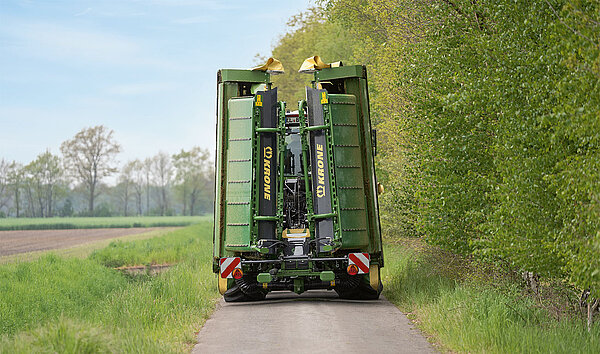

  • Safe road travel: 4.00 m transport height and less than 3 m transport width
  • Great operator comfort: Compact on the tractor, adjustable tractor-machine distance
  • Minimum space requirement by storing in transport position

The side mowers are retract automatically so that the transport height of 4.00 m is not exceeded. An automatic transport locking system provides for safe road travel and is activated as the rear mowers are shifted to the middle.

EasyCut B 870/1000 CV and CR Collect – The mower combinations with optional conditioners and auger conveyors
EasyCut B 870/1000 CV and CR Collect – The mower combinations with optional conditioners and auger conveyors
  • Extra wide cross conveyor belts for continuous flow even in high volumes of crop

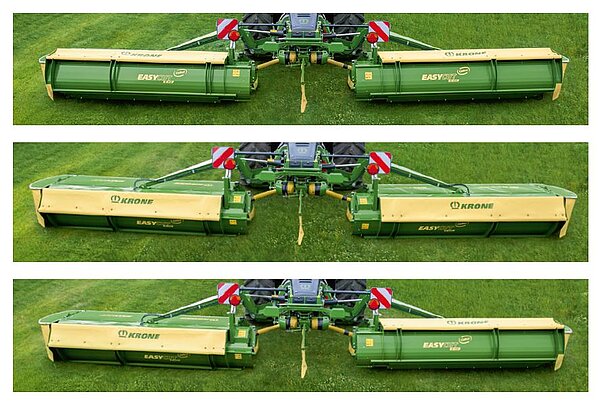

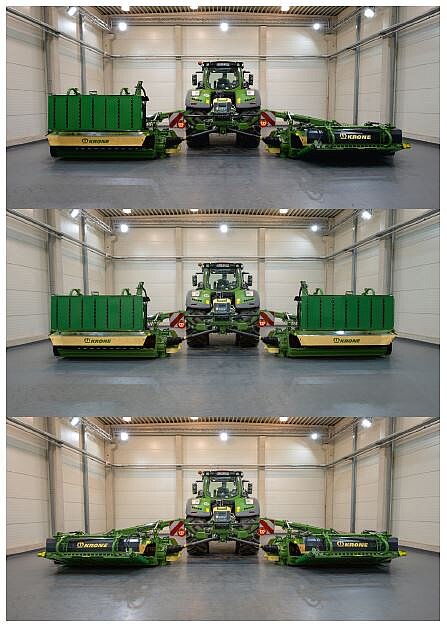

  • Each belts can be raised individually, providing one of the three swathing modes available: wide spreading, partial width swathing or single swathing
  • Belts shut off and on automatically when raised and lowered

The Collect system with cross conveyor belts makes EasyCut B 870 CV and B 1000 CV with steel tine conditioners and EasyCut B 870 CR and B 1000 CR with roller conditioners versatile machines that spread the material across the working width or produce one central or two individual swaths. The powerful conveyor belts handle even the heaviest crops most effectively.

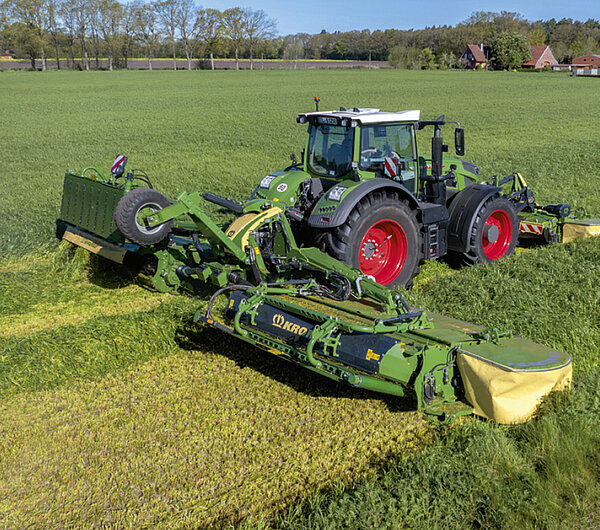

EasyCut B 880 CV/CR and B 1050 CV – Mower combinations with conditioners
EasyCut B 880 CV/CR and B 1050 CV – Mower combinations with conditioners

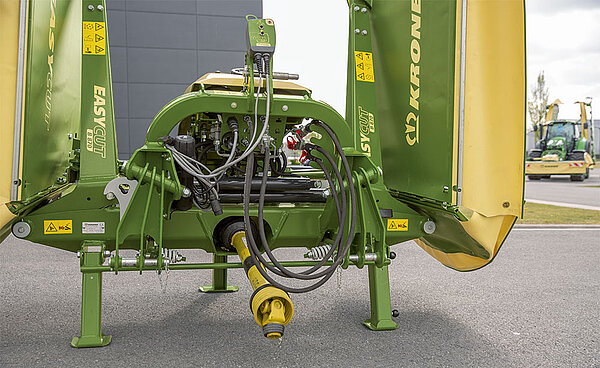

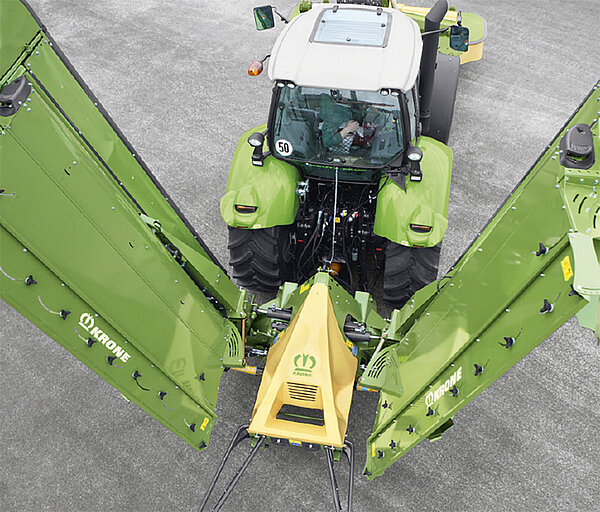

  • Compact design due to weight-optimised three-point hitch mounted close to the tractor
  • Safe on the roads with a transport height under 4 m and a transport height under 3 m

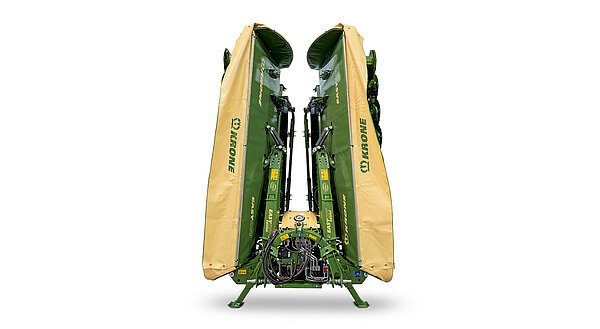

  • Small footprint in the yard: Machine is parked in folded-up position, held by support jacks (telescopic as an optional feature)

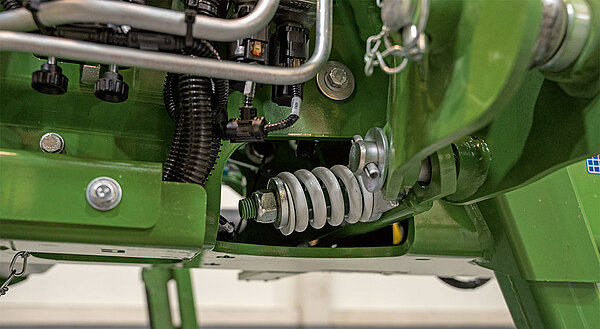

  • NonStop impact damage protection system fully integrated in the headstock
  • Maximum operational reliability thanks to ­­KRONE SafeCut
  • Most efficient Butterfly combination in the market: EasyCut B 1050 with 10.45 m working width, dimensioned for front mounted mowers with 3.2 m to 4 m working width

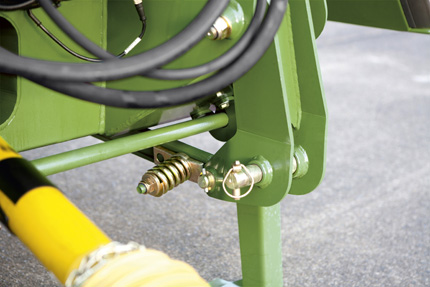

  • Variable attachment in the EasyCut B 880 since headstock can be mounted in two different positions

The new ­­KRONE mower combinations EasyCut B 880 CV and CR and EasyCut B 1050 CV convince with maximum safety and unsurpassed efficiency. The compact three-point headstock mounted close to the tractor provides for very comfortable driving. In case of contact with an obstacle, the NonStop impact damage protection system ensures fast, automatic swinging back of the mower unit, preventing damage to the machine.

EasyCut B 880 CV/CR (Collect) and  B 1050 CV (Collect) – A perfect cut under all conditions
EasyCut B 880 CV/CR (Collect) and B 1050 CV (Collect) – A perfect cut under all conditions
  • High acreage output

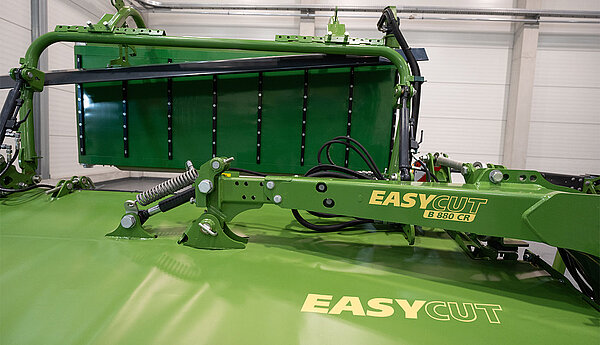

  • EasyCut B 880 CV/CR with 8.53 m and 8.72 m working widths

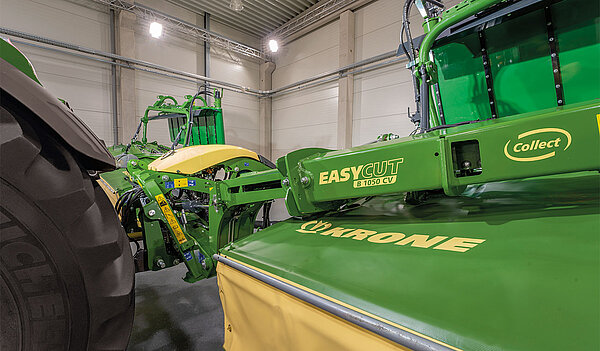

  • EasyCut B 1050 CV with 9.30 m to 10.45 m hydraulically adjustable working widths
  • CV or CR conditioners: V-shaped steel tines, polyurethane rollers or M-Rolls
  • Constant bearing pressure: Hydro-pneumatic compensation, conveniently controlled from the tractor, for uniform ground pressures
  • Convenient operation thanks to actuation via electrical preselection box or ISOBUS terminal

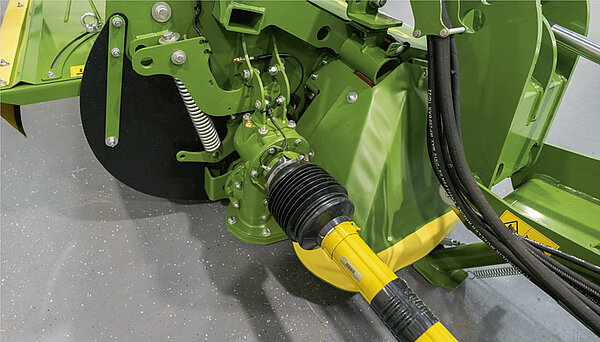

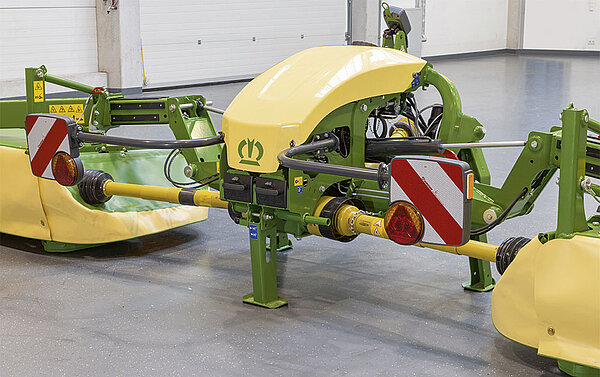

  • Efficient drive: via gearboxes and universal shafts to the mower units

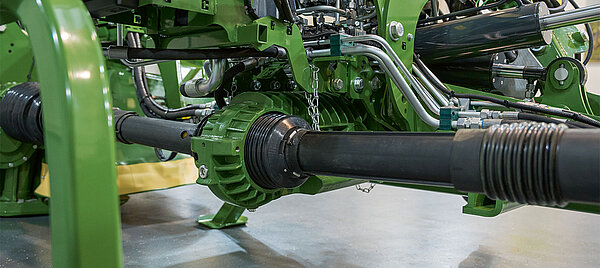

  • Re-designed main gearbox: for maximum displacement path of the mower units

With variable working widths of 8.72 m respectively 10.45 m, the mower combination EasyCut B 880 CV/CR and B 1050 CV are designed for maximum efficiency. Adjustable overlaps guarantee strip-free mowing in all fields. Choose from the range of V-shaped steel tines or roller conditioner to actively control the drying process. Controlled from the cabin, the infinitely adjustable hydraulic relief provides for optimum ground contouring.

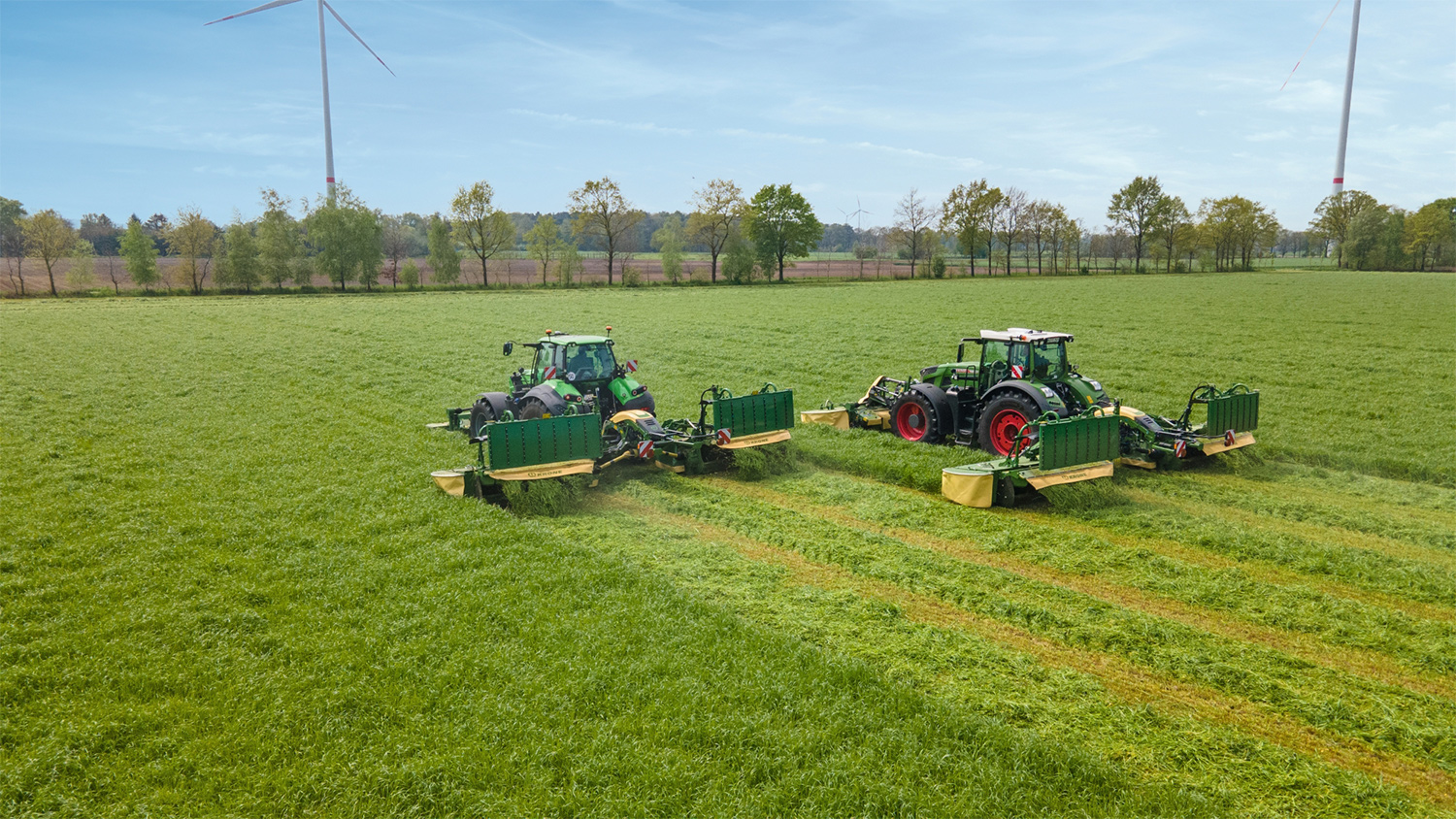

EasyCut B 880 CV/CR Collect and B 1050 CV Collect – Mowing without stopping

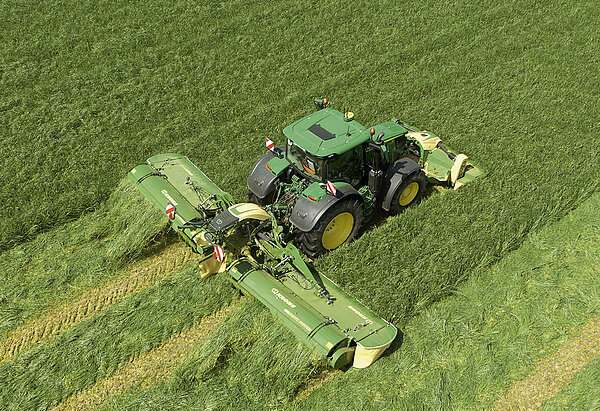

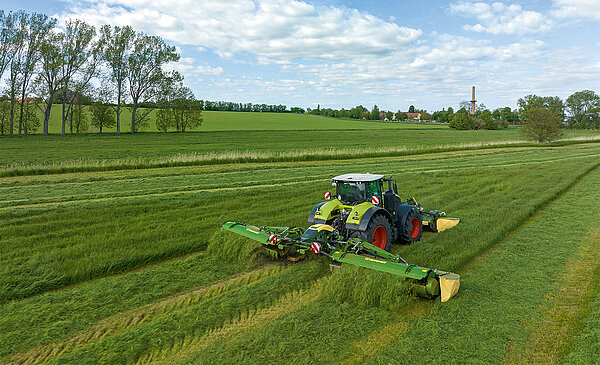

EasyCut B 1050 CV BSS – Mower combination with CV conditioner and auger conveyors
EasyCut B 1050 CV BSS – Mower combination with CV conditioner and auger conveyors
  • EasyCut B 1050 CV with BiG Swath System as accessories kit
  • With CV conditioner and with swath merging system by means of auger conveyor
  • 9.30 to 10.45 m working widths

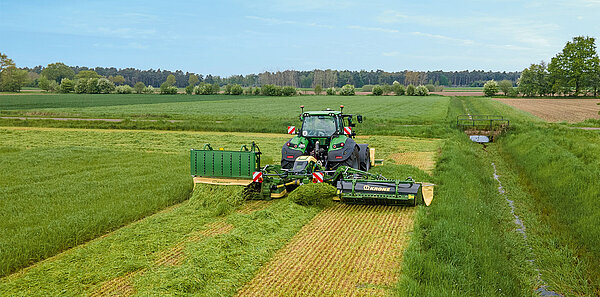

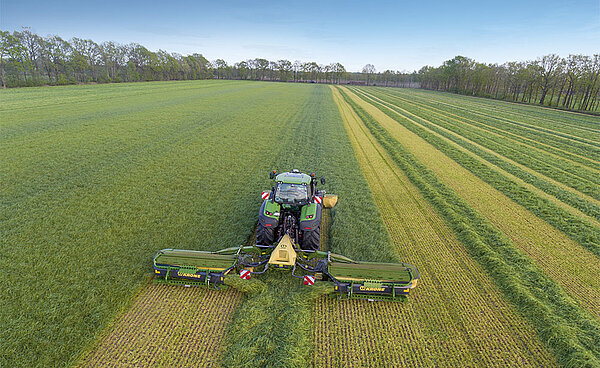

  • Wide spreading, partial width swathing or central swathing

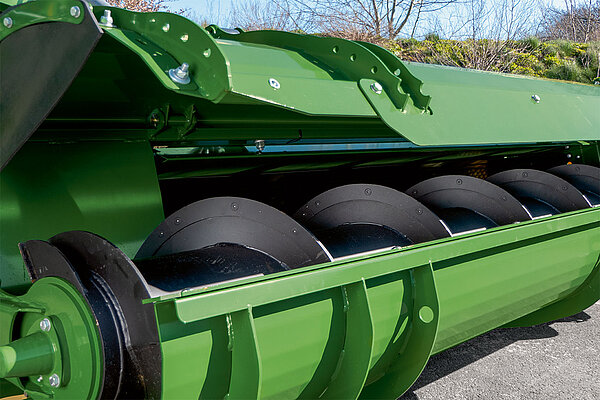

  • 45 cm diameter of the auger conveyors – reliable also with large forage volumes

With the ­­KRONE EasyCut B 1050 CV BSS, swath merging can optionally also be effected by means of auger conveyors – an option unparalleled in other Butterfly combinations. Large-dimensioned augers behind the CV conditioner ensure gentle crop flow without losses. Depending on the hood position, the crops are spread centrally or deposited in partial-with swaths or individual swaths. This technology, which has been tried and tested thousands of times on the BiG M self-propelled machines, is now also being used on the Butterfly combinations.

Operation - Tailored to your tractor
Operation - Tailored to your tractor
  • Convenient for operators
  • Clear concept
  • Easy

The Butterfly combinations EasyCut B 880 CV and CR Collect, B 950 Collect and B 1000 CV and CR (Collect) are available either with the electrical PreSelect operation or the ISOBUS Comfort control unit, which is the standard for the EasyCut B 1050 CV (Collect). The ISOBUS-compatible devices comprise a large choice of terminals and intuitive-use control units. SectionControl, the new CCI 1200/800 and the tried and tested AUX joystick CCI A3 are just two examples of what’s available.

CCI A3 AUX Joystick
CCI A3 AUX Joystick

The AUX-Joystick CCI A3 facilitates operation and optimizes user comfort. Since the icons of the functions are displayed directly on the joystick's touchscreen, the driver always has an overview of the machine's operation. The interchangeable frames allow the layout of the keypad to be optimally adapted to the respective application.

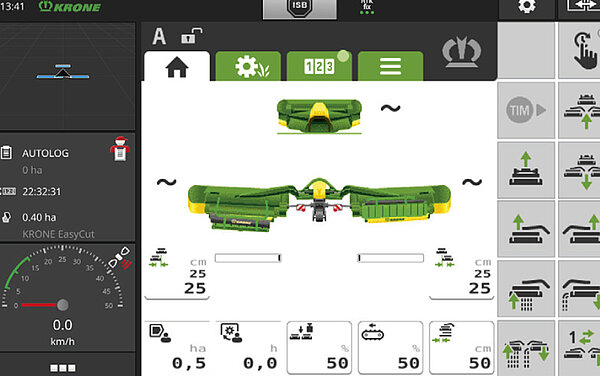

ISOBUS CCI 800 and CCI 1200 operator terminals
ISOBUS CCI 800 and CCI 1200 operator terminals

For the CCI 800 and CCI 1200 control terminals, an 8" or 12" large touchscreen with color display ensures the highest comfort. In addition to the main function at maximum size, additional functions are displayed simultaneously in the mini-viewer. Additionally, these terminals can be combined with cameras, AUX joysticks, and the license for SectionControl.

ISOBUS Comfort Control Unit
ISOBUS Comfort Control Unit

The EasyCut B 880 CV and CR Collect, B 950 Collect, and B 1000 CV and CR Collect can be intuitively and comfortably operated via the tractor's own terminals as well as the DS 500, CCI 800, or CCI 1200 with touchscreen through Load-Sensing, using the optional ISOBUS-compatible comfort control. For the EasyCut B 1050 CV (Collect), the comfort control is already included as standard.

Integrated on the tractor
Integrated on the tractor

With KRONE PreSelect Digital, the pre-selection of the function and the activation of the control unit can be performed via the AUX buttons of the tractor's ISOBUS-compatible control lever. This allows all tractor and machine functions to be conveniently operated on one joystick without having to reposition hands.

PreSelect Digital as an alternative
PreSelect Digital as an alternative

KRONE PreSelect Digital essentially performs the same functions as KRONE PreSelect DS 50. The difference lies in that with the cable connection between the implement and the tractor's ISOBUS socket, the view and pre-selection are carried out on an ISOBUS terminal. There is the option to switch between PreSelect DS 50 and PreSelect Digital. PreSelect is available for B 870, B 1000, B 880 CV/CR (Collect), and B 950 Collect.

PreSelect DS 50 operation
PreSelect DS 50 operation

With the KRONE PreSelect DS 50, hydraulic functions of the connected implements are pre-selected and then activated with the tractor-side control valves. Electrical functions, such as the ground pressure of the mowers, are displayed directly and can be adjusted via buttons. The connection is made through a direct connection to the machine's interface and is powered via a 12V plug in the cabin.

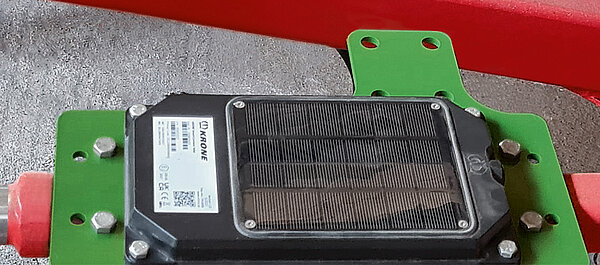

­­KRONE SmartConnect Solar
  • Autonomous telemetry unit thanks to solar panel and rechargeable battery
  • Automatic data acquisition in real time
  • Data transmission to ­­KRONE Smart Telematics and agrirouter
  • Can be used flexibly on all machines (regardless of the manufacturer)
  • Especially for machines without own electronics as well as rental machines

The ­­KRONE SmartConnect Solar telemetry unit is completely autonomous thanks to the solar panel and rechargeable battery. This means that the box can be used flexibly on all machines, regardless of the manufacturer. The following data is sent by the SmartConnect Solar in real time: the position, the speed, active and inactive operating hours, the distance travelled, the working and transport position, the number of loads or the worked area and the charge status of the rechargeable battery. The machine data is recorded in real time and automatically transmitted to ­­KRONE SmartTelematics or the agrirouter.

Models

EasyCut B
EasyCut B 870 EasyCut B 1000 EasyCut B 950 Collect EasyCut B 870 CV EasyCut B 870 CV Collect EasyCut B 870 CR EasyCut B 870 CR Collect EasyCut B 880 CV EasyCut B 880 CV Collect EasyCut B 880 CR EasyCut B 880 CR Collect EasyCut B 1000 CV EasyCut B 1000 CV Collect EasyCut B 1000 CR EasyCut B 1000 CR Collect EasyCut B 1050 CV EasyCut B 1050 CV Collect
Working width (m) 8.31 - 8.62 9.28 - 10.10 9.45 8.70 8.70 8.70 8.70 8.52 3.16 3.16 3.16 9.30 - 10.10 9.30 - 10.10 9.30 - 10.10 9.30 - 10.10 9.30 - 10.45 9.30 - 10.45 configure
3.60 4.00 4.00 3.80 3.80 3.80 3.80 3.80 3.70 3.70 3.70 4.00 4.00 4.00 4.00 4.00 4.00 configure
No. of discs 10 12 12 10 10 10 10 10 10 10 10 12 12 12 12 12 12 configure
No. of top hats 4 4 4 4 4 4 4 4 2 4 4 4 4 4 4 4 4 configure
Input power (kW/hp) 88 / 120 100 / 140 145 / 200 110 / 150 125 / 170 110 / 150 125 / 170 150 / 110 170 / 125 150 / 110 170 / 125 130 / 180 145 / 200 130 / 180 145 / 200 150 / 200 150 / 200 configure
configure configure configure configure configure configure configure configure configure configure configure configure configure configure configure configure configure

Mower combinations for maximum efficiency

The EasyCut B mower combinations

KRONE Landmaschinen

KRONE Landmaschinen

Media
