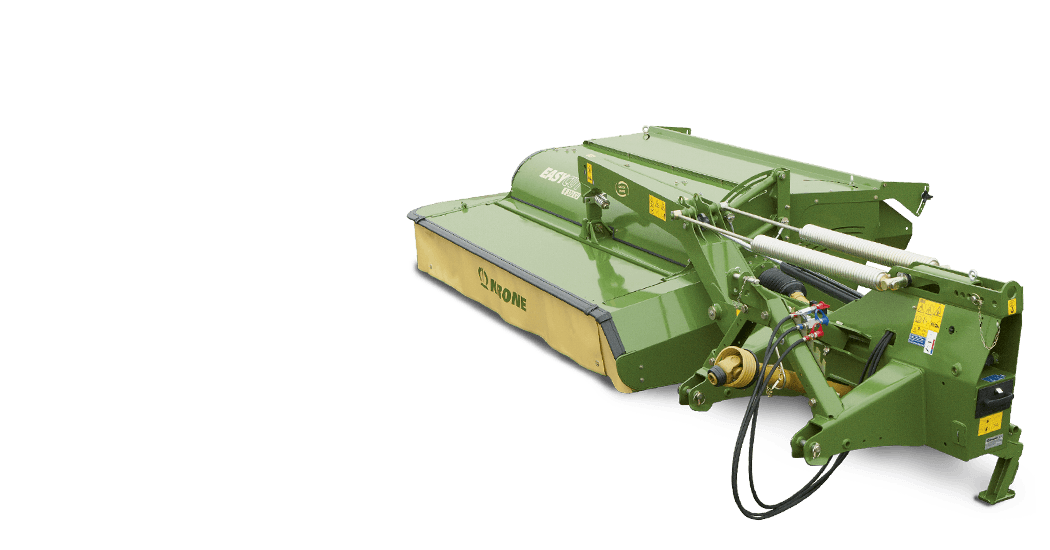

EasyCut R

Rear-mounted disc mowers (center-of-gravity suspension)

EasyCut R

Rear-mounted disc mowers

  • Quick-change blades
  • SafeCut: Individually protected discs
  • SmartCut: Stripeless cuts from optimum blade overlaps
  • DuoGrip: The center-of-gravity suspension system with dual grip control
  • Optimum ground pressure control by means of responsive and adjustable springs
  • Available conditioner versions: CV conditioner with V-type steel tines, CR conditioner with rubber rollers or M-Rolls
  • Compact in transport as the mower tilts to the middle of the tractor – for optimum weight distribution and visibility
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.

Product video

KRONE EasyCut R – Rear-mounted disc mowers

The cutterbar features a host of smart details like the SafeCut disc protection system or the SmartCut blades with optimum overlaps. EasyCut R – the professional machine for farmers and contractors.

The tine conditioner models

EasyCut R 280 CV und R 320 CV

The KRONE CV rotor with V-shaped and grippy steel tines spreads the crop at the full working width. Its massive 2' 1.2" diameter and the helical arrangement of the tines warrant a continuous crop flow, high throughputs and superior conditioning.

Product features

Rugged and easy use, tried and tested around the world
Rugged and easy use, tried and tested around the world
  • Quick-change blades
  • SafeCut: Individually protected discs
  • SmartCut: Stripeless cuts from optimum blade overlaps
  • DuoGrip: The centre-of-gravity suspension system with dual grip control
  • Optimum ground pressure control by means of responsive and adjustable springs
  • Available conditioner versions: CV conditioner with V-type steel tines, CR conditioner with rubber rollers or M-Rolls
  • Compact in transport as the mower tilts to the middle of the tractor – for optimum weight distribution and visibility

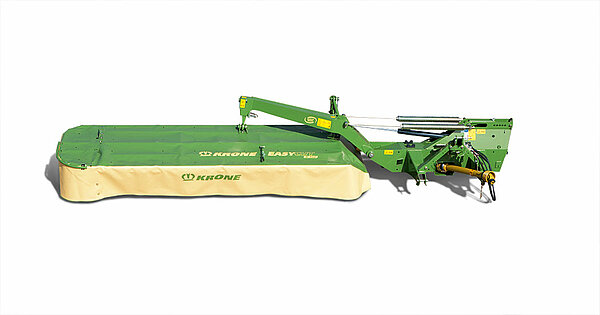

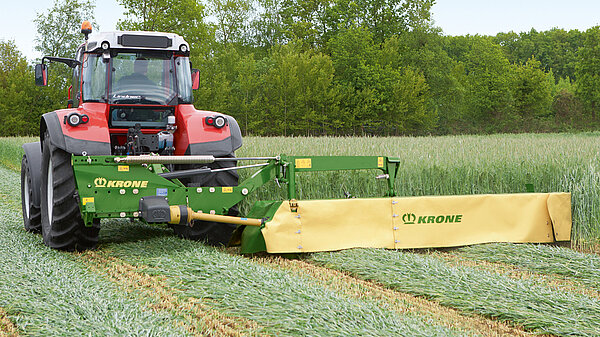

The EasyCut R rear mowers
The EasyCut R rear mowers

Without conditioner

  • Working widths from 2.73 m to 4.04 m
  • DuoGrip centre of gravity mounting
  • Smart-Cut cutterbar for maximum lifetime
  • Very responsive spring relief

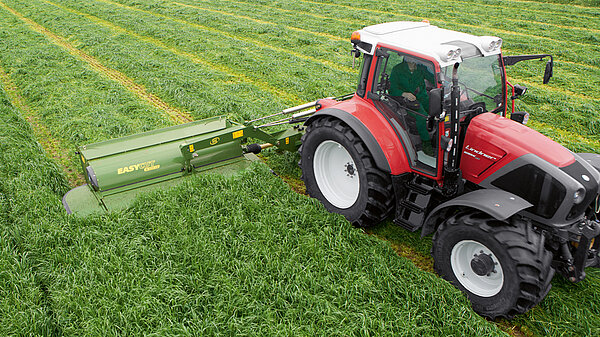

With conditioner

  • Working widths of 2.7 m or 3.2 m
  • With tine or roller ­conditioner (polyurethane rollers or M-Rolls)
  • DuoGrip centre-of-gravity suspension
  • Over-centre transport position reduces ­transport height

The cutterbar features a host of smart details like the SafeCut disc protection system or the SmartCut blades with optimum overlaps. EasyCut R – professional technology for farmers and contractors

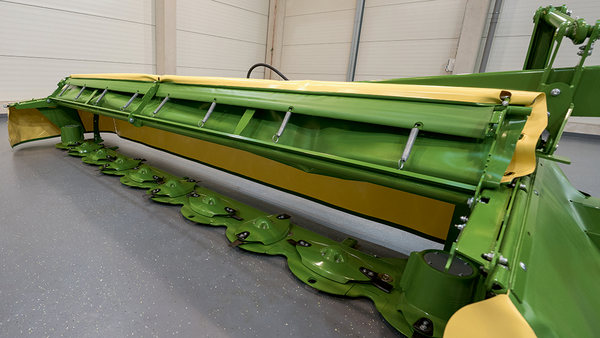

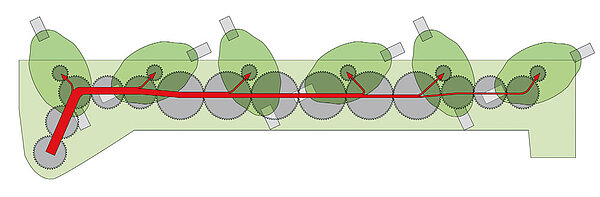

The KRONE cutterbar
The KRONE cutterbar

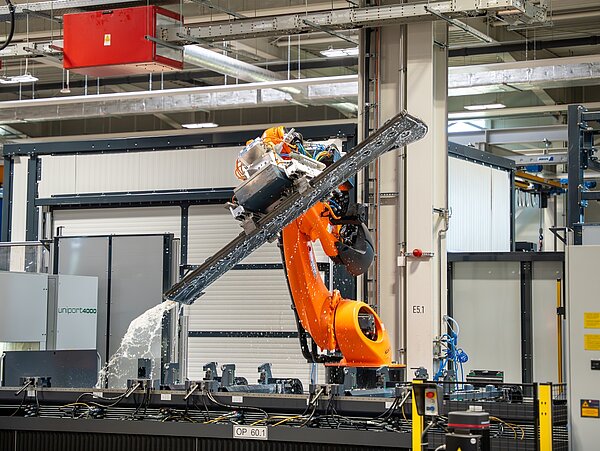

  • Fully welded cutterbar Robust, sealed and permanently lubricated
  • Durable satellite drives with large spur wheels Very quiet running and optimum power transmission

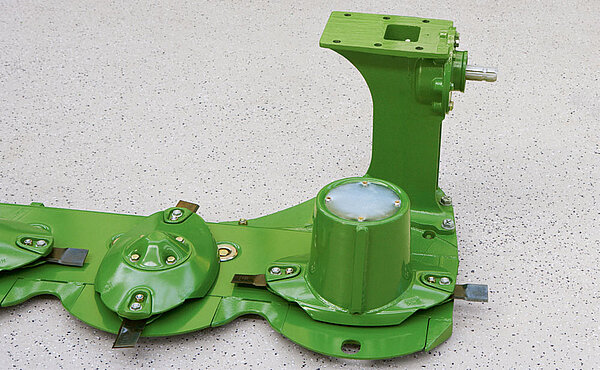

  • Without inner shoe for trouble-free mowing

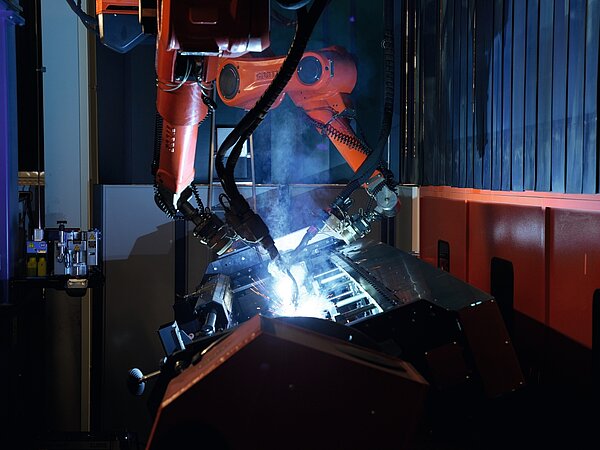

The closed, all-round welded cutterbar meets the highest quality standards and remains leak-proof and in shape even after many years of use. The large spur wheels in an oil bath can withstand the highest continuous loads and impress with their particularly quiet running.

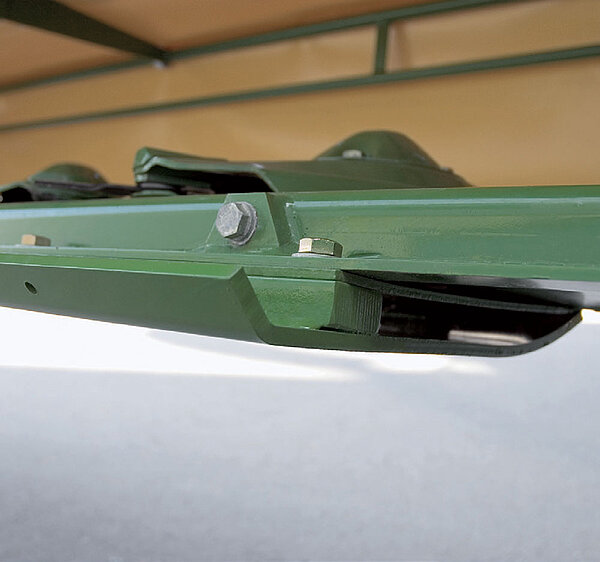

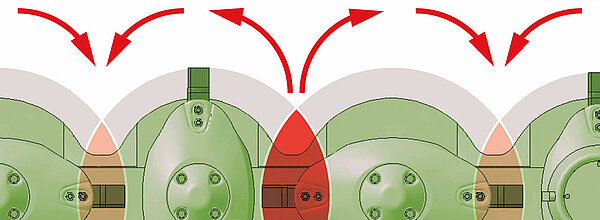

KRONE SmartCut for a perfect spread
KRONE SmartCut for a perfect spread
  • The wedge-shaped cutterbar guarantees clean cuts
  • Robust spur wheel drive with double bearing and large bearing distance

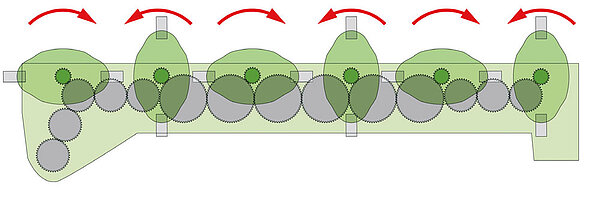

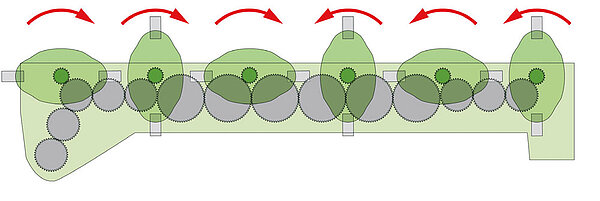

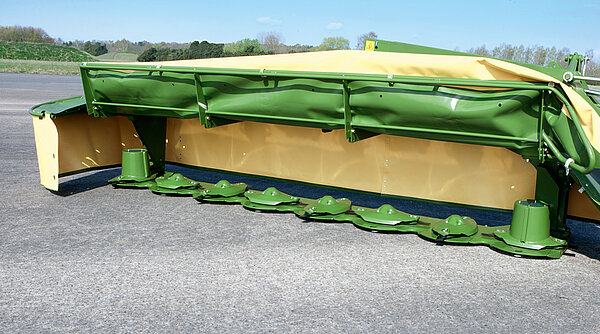

  • Swathing or wide spreading as required

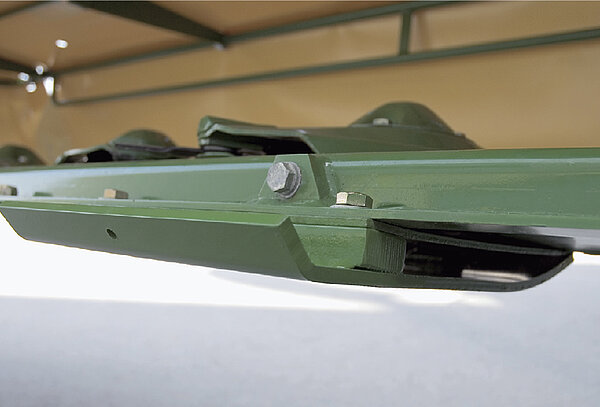

The wedge-shaped cutterbar offers great flexibility to adjust through a large range of settings and leave a short stubble in meadows and pastures as well as long stubble in long-stemmed field crops. An EasyCut lets you work trouble-free and leaves a clean cut.

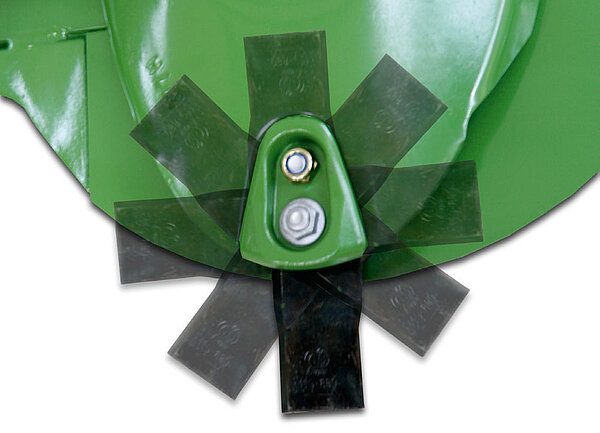

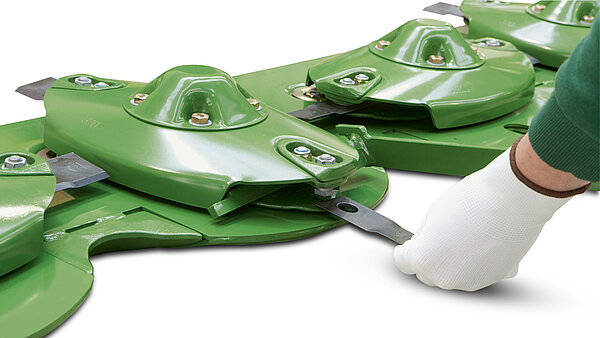

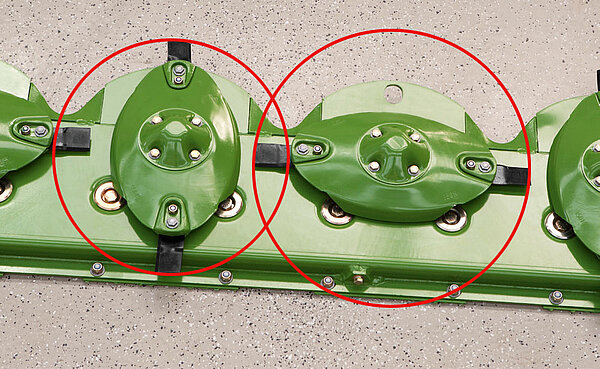

The KRONE quick-change blade system
The KRONE quick-change blade system

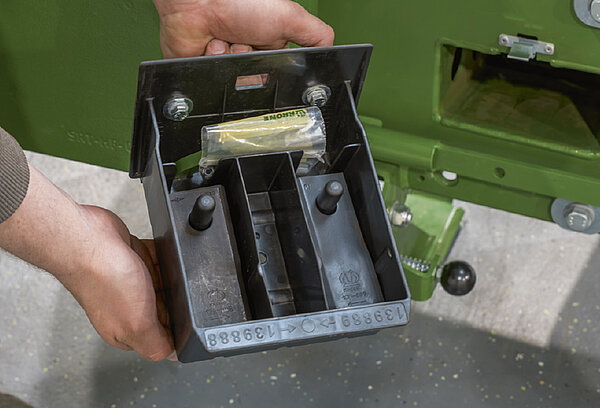

  • Quick-change blades for quick blade handling in the field

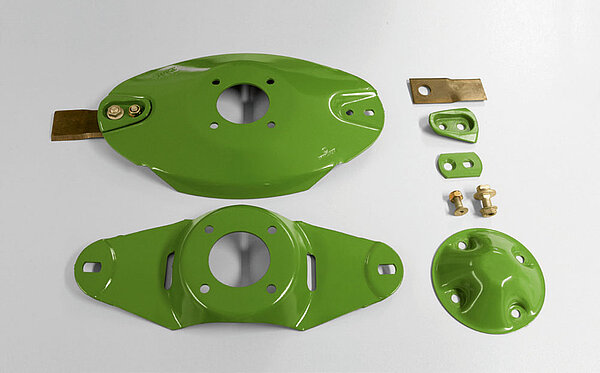

  • Modular design of cutting discs
  • Minimal blade wear 360° swivel rage of the blades

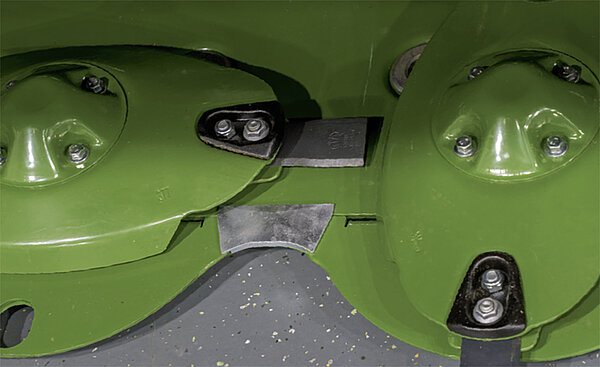

  • Excellent cut thanks to KRONE SmartCut Optimum overlap of the blade tracks

There are many reasons for choosing an EasyCut disc mower. Just think of the quick-change blades, the inexpensive wear parts and the perfect arrangement of the cutting discs for stripe-free swaths.

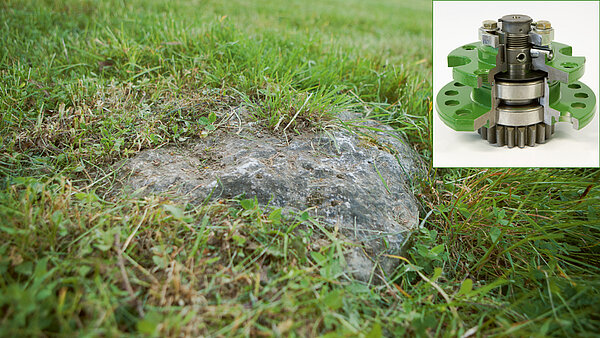

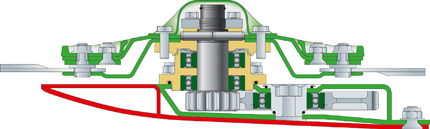

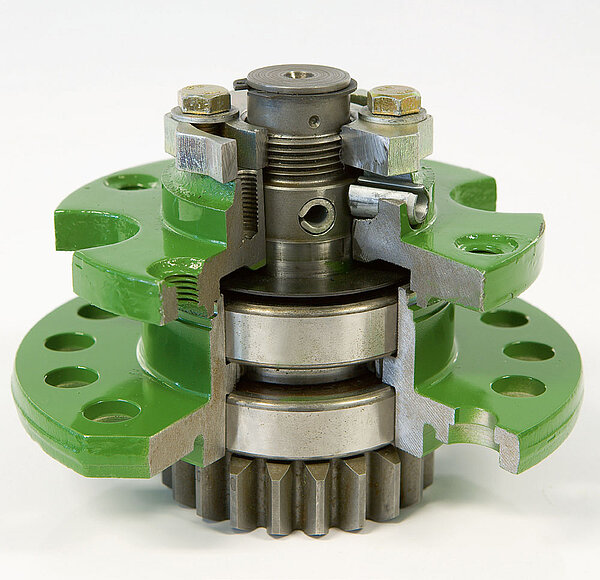

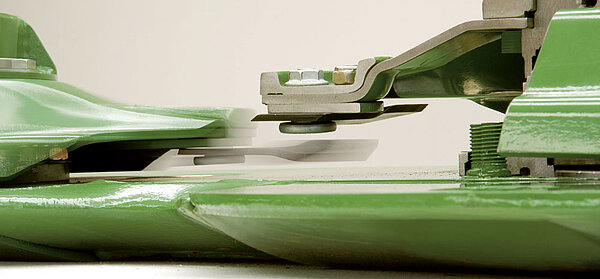

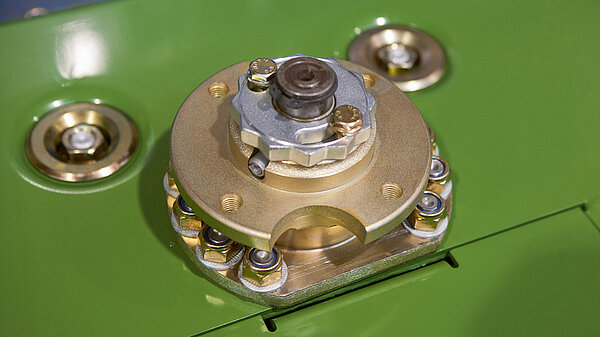

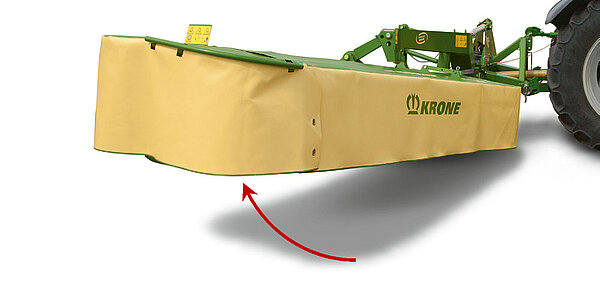

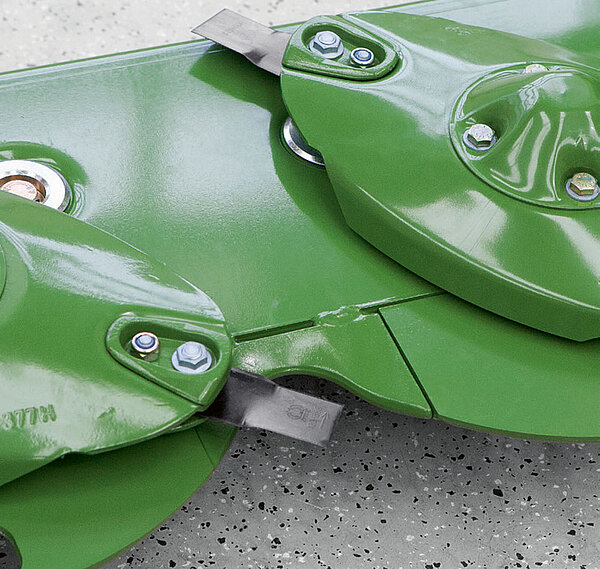

The KRONE SafeCut system
The KRONE SafeCut system
The KRONE SafeCut system
The KRONE SafeCut system

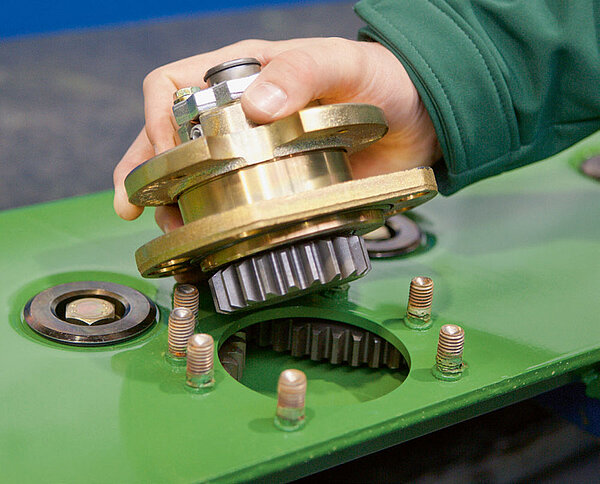

  • Fully protected drives for greater reliability
  • No collision with neighbouring cutting discs
  • No signs of wear

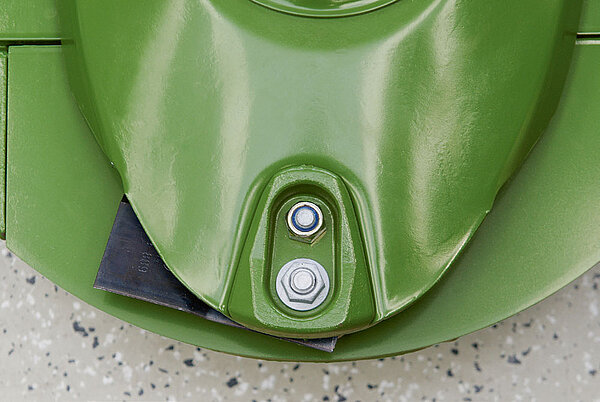

  • Quick-change roll pins for high operational reliability and lowest costs

Collisions may cause damage and incur repair costs. KRONE SafeCut offers a maximum of protection and peace of mind. The DLG award-winning protection of the cutting discs against foreign objects for all EasyCut models is unique in terms of safety and operator comfort. SafeCut is part of the basic equipment of all KRONE disc mowers.

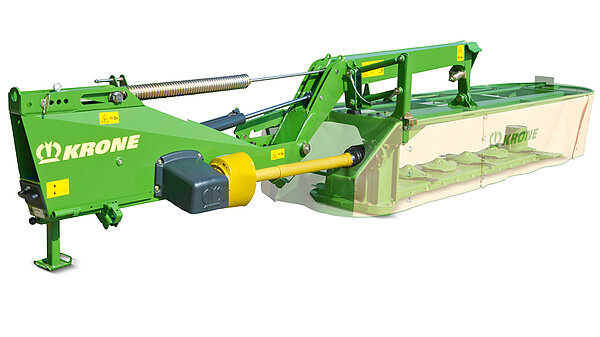

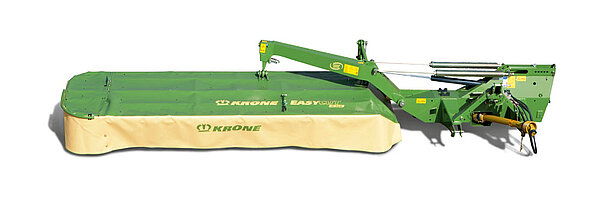

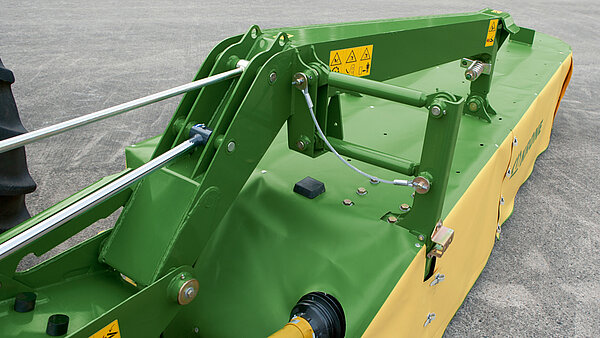

The KRONE DuoGrip centre-of-gravity suspension
The KRONE DuoGrip centre-of-gravity suspension
  • The DuoGrip system – centre-of-gravity suspension and linkage control

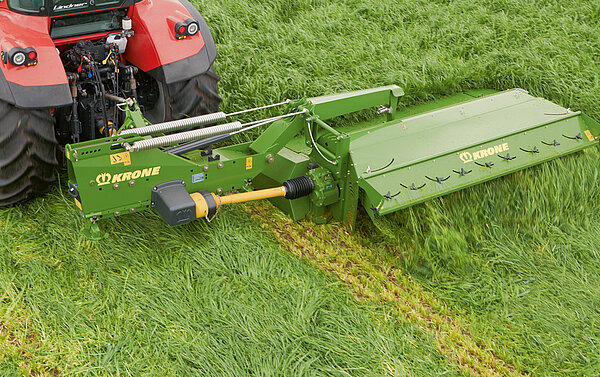

  • Uniform ground pressure across the entire work width
  • Excellent guidance: less side thrust, clean cuts
  • Short and high-strength beam

A clean cut is fundamental for clean forage. Clean cuts are attributed to the special design of the cutterbar and the special suspension. The special KRONE DuoGrip suspension system suspends the disc mower in its centre of gravity and provides lateral guidance at the same time. Maintaining a consistent ground pressure across the full work width, the design leads to cleanest cuts on the one hand and light pulling and optimum lateral control on the other.

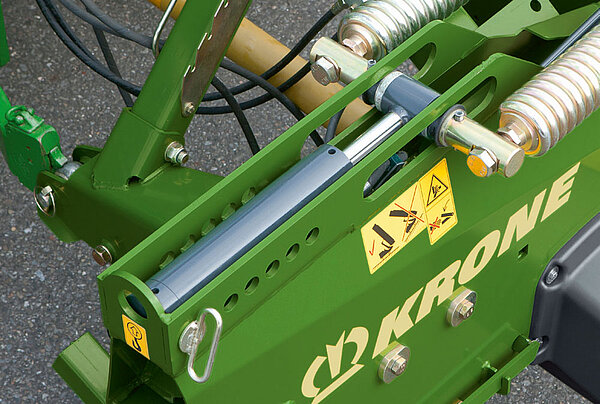

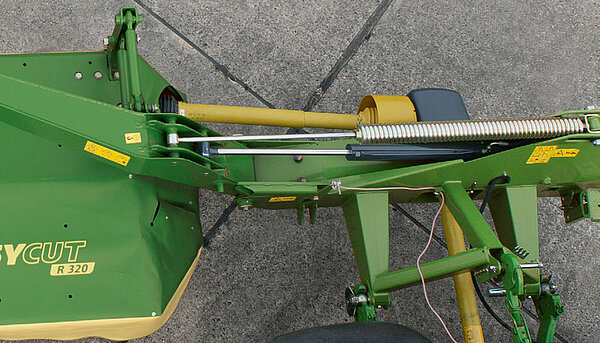

The KRONE cutter suspension system
The KRONE cutter suspension system
  • Centrally adjustable relief springs for uniform cut with optimum bearing pressure

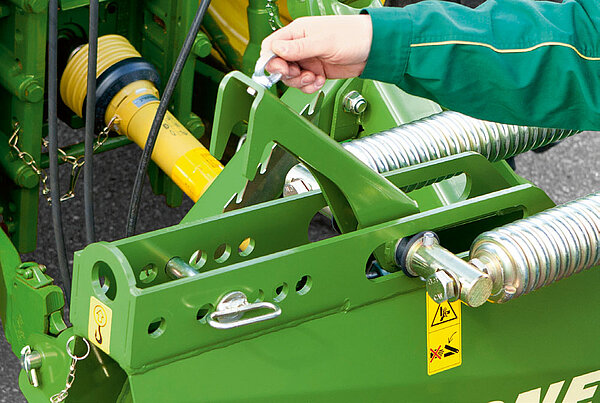

  • Ground pressure control without tools

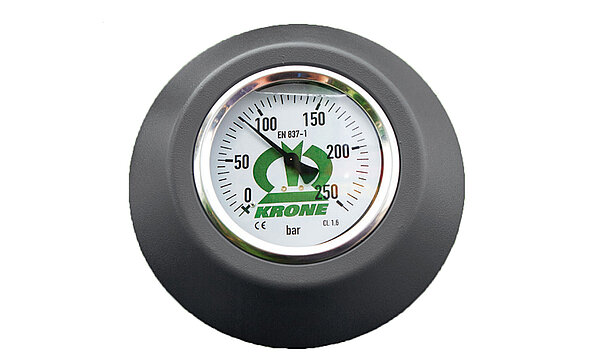

  • Optional Hydraulic adjustment of the bearing pressure while driving

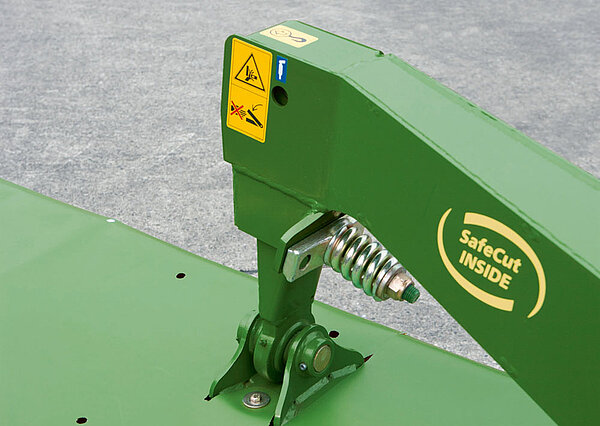

  • Double protection by impact damage protection system

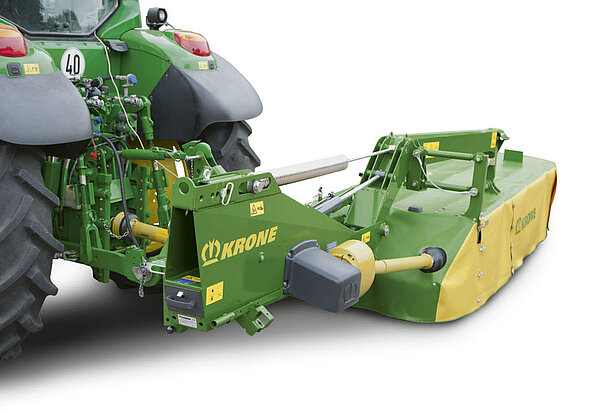

The hydraulic and the mechanical suspension springs are extremely responsive and provide perfect cuts even in undulating terrain and at high forward speeds. This is the first step in making clean and high-quality forage and a requirement for a fast and uniform re-growth. Thanks to the kinematics between the spring and carrying bar, the set bearing pressure remains constant even on uneven ground.

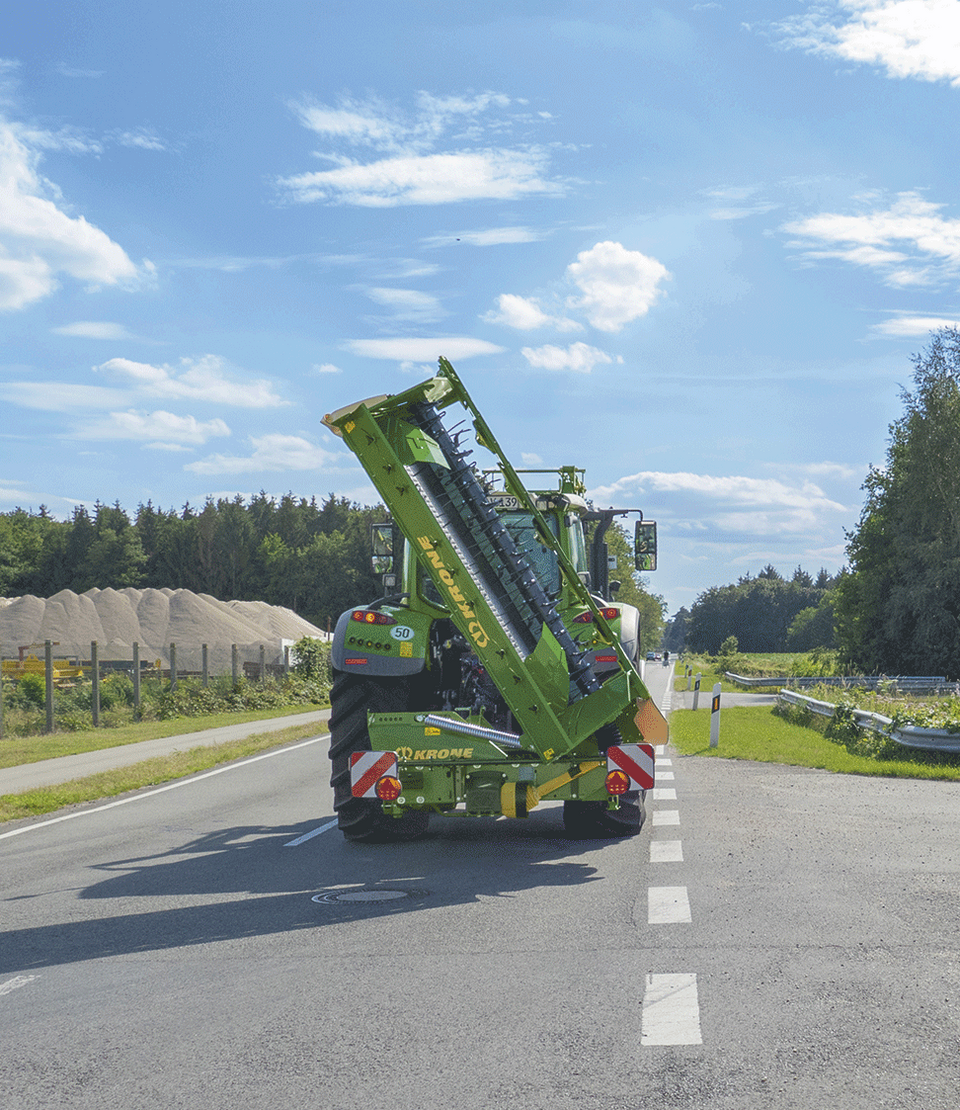

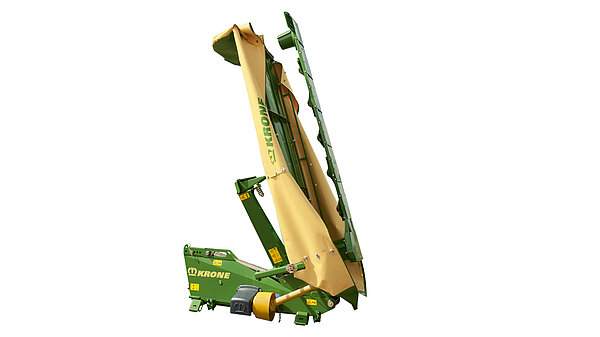

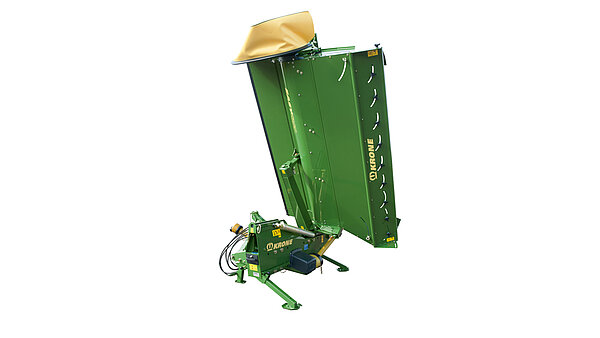

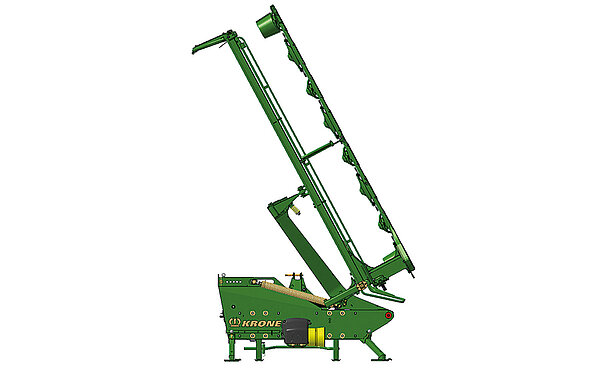

Work position and transport position
Work position and transport position
  • Folding beyond the vertical, For low transport height, optimum weight distribution and overview
  • Hydraulic lifting at the headland Tractor lower links are not actuated

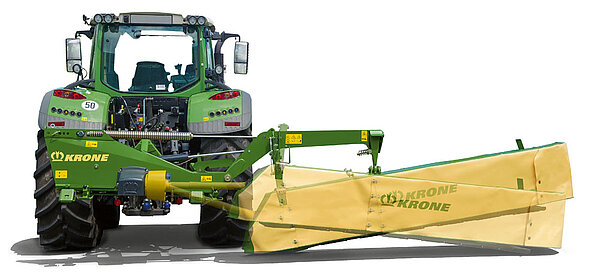

  • Large suspension travel

Increasing working widths require special designs with regard to transport and ground adaptation. The Z-shape and the low pivot point of the outrigger arm, the swivellingof the mower into the transport position beyond the dead centre and the headland  position without actuating the tractor's  lower links are just some of the features which meet the specific requirements. KRONE disc mowers keep you safe on the road and give you the best mowing results even under difficult conditions.

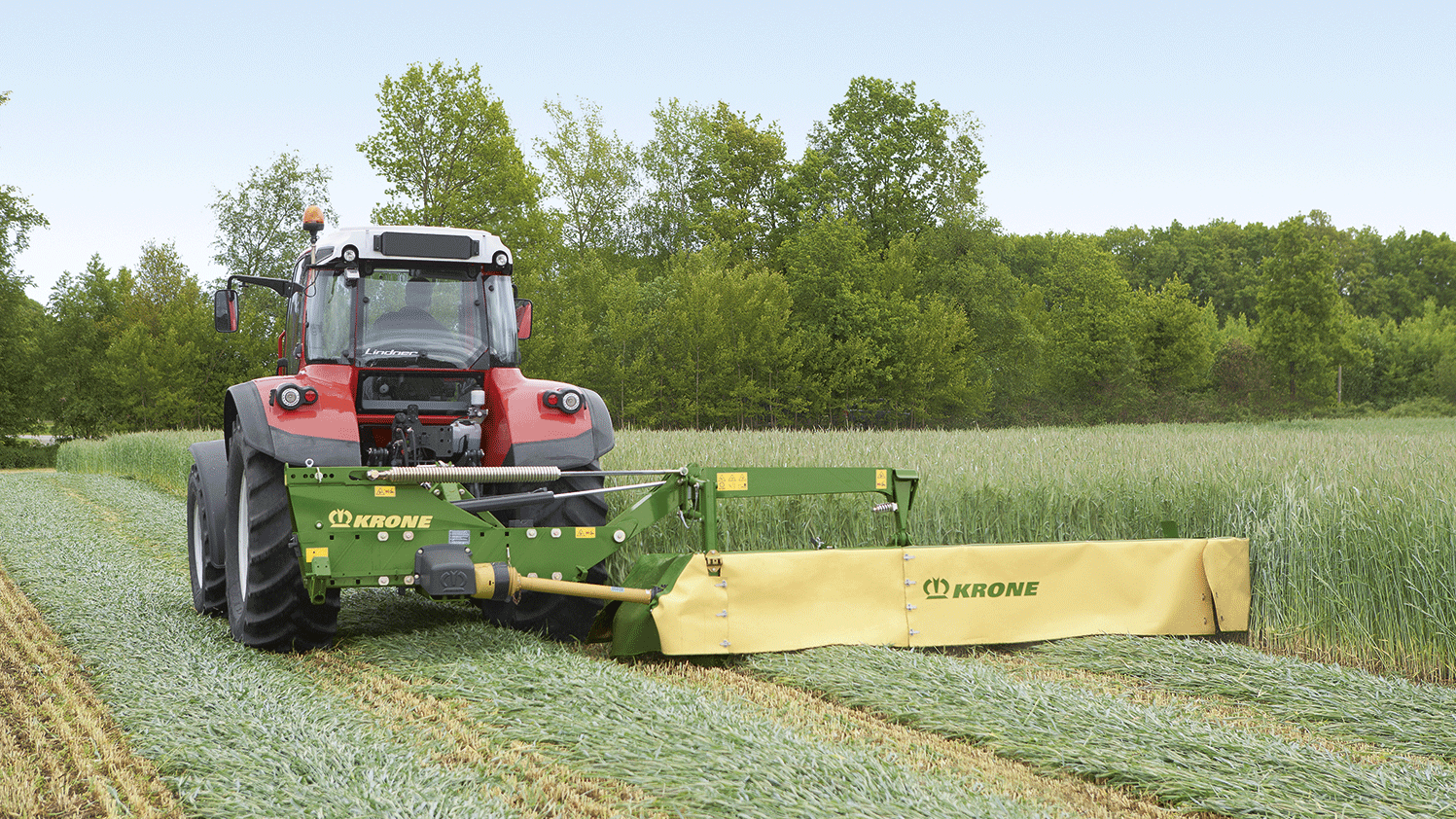

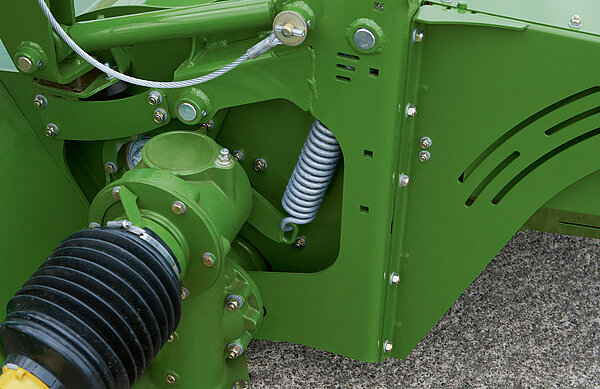

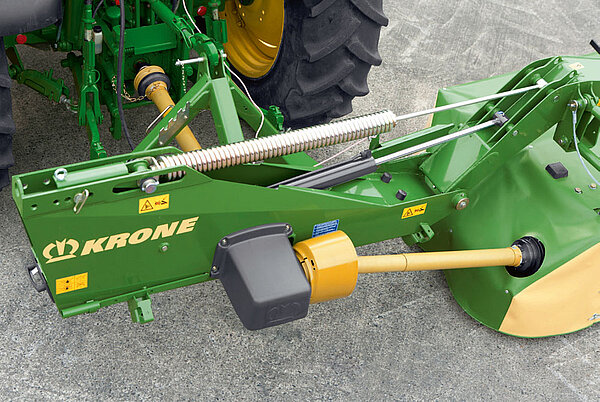

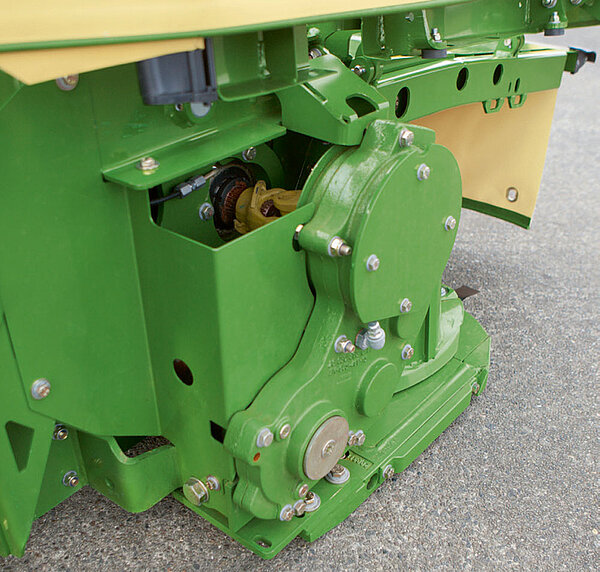

EasyCut R 280 and R 320: Driveline and suspension
EasyCut R 280 and R 320: Driveline and suspension
  • Manual or hydraulic setting of the bearing pressure
  • Low-maintenance, non-positive drive without belts
  • KRONE SafeCut cutterbar protection is a standard feature

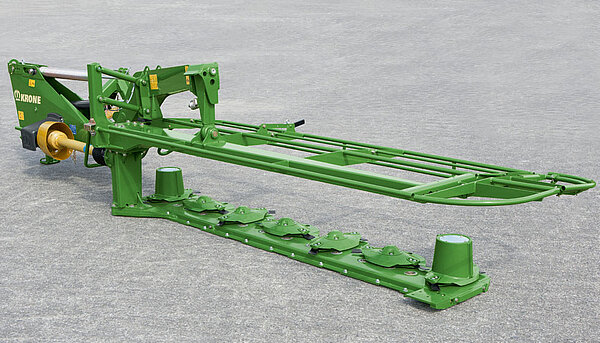

  • Self-dupporting guard for continuous crop flow

If you are looking for a powerful mower with a working width of around 3,00 m., then the KRONE EasyCut R 280 and R 320 disc mowers iwth DuoGrip are the right choice. Innovations, such as the DuoGrip centre of gravity mounting with manually or hydraulically adjustable relief spring, the unique impact damage protection system and the optimised cutterbar for a stripe-free cut, are just some of the argumenst in favour of these EasyCut mowers.

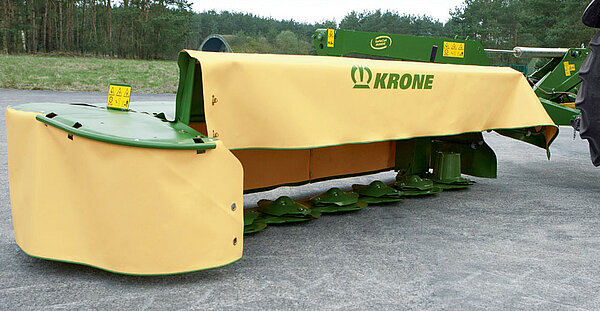

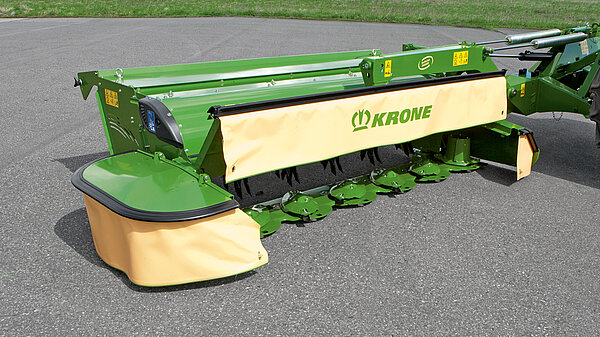

EasyCut R 280 and R 320: Transport, service and maintenance
EasyCut R 280 and R 320: Transport, service and maintenance

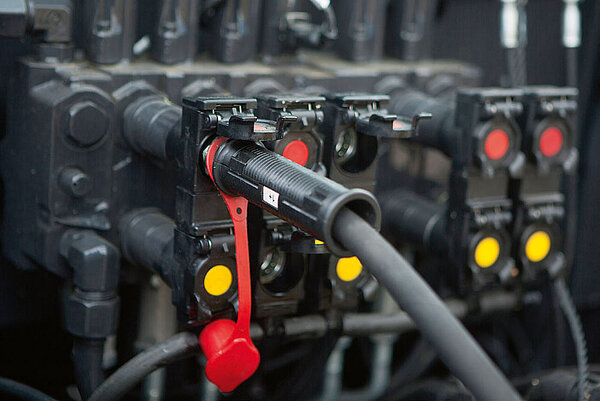

  • Only one single-acting hydraulic connection for folding in and out.
  • Convenient transport with the cutterbar folded towards the centre of the tractor

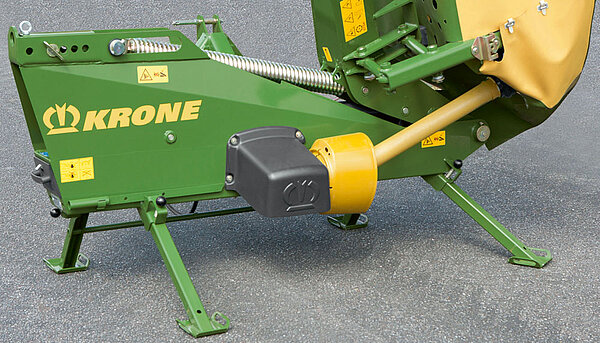

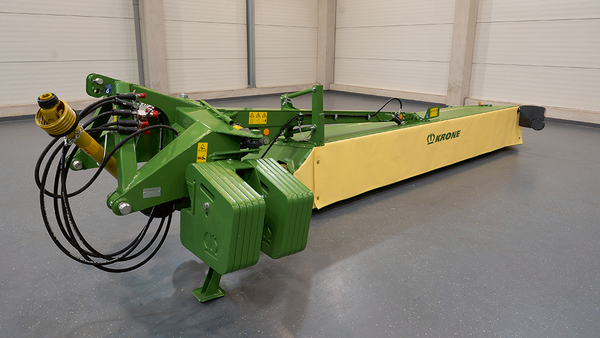

  • Space-saving 100° parking position on optional supports

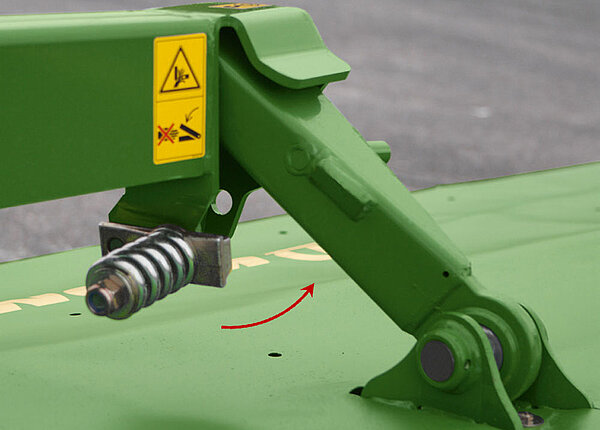

  • Impact damage protection by rear and upward travel

The fact that KRONE disc mowers operate successfully at home and abroad is due to the fact that KRONE design engineers are alwys incorporating newly gained knowledge and practical experience into production. For example, the EasyCut R models can be stored in vertical position to save space in the machine shed.  KRONE disc mowers have many practical solutions which mak work easier and even more effective.

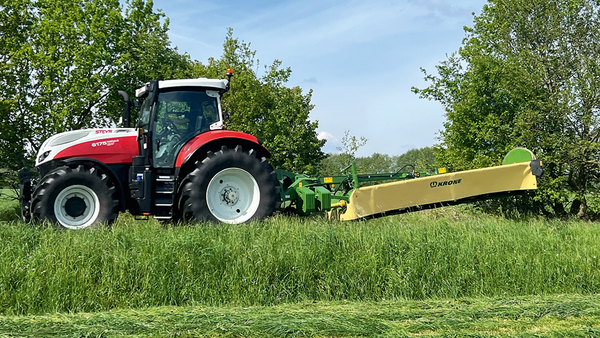

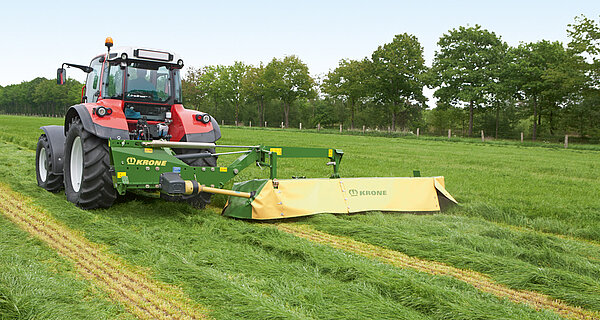

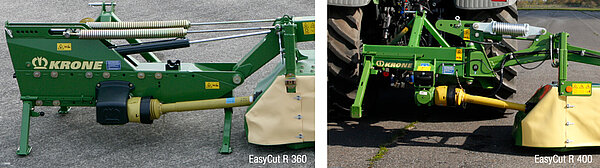

EasyCut R 360 and R 400: Tractor attachment and suspension
EasyCut R 360 and R 400: Tractor attachment and suspension
  • 3.60 m or 4.04 m working width
  • Forming two swaths or spreading the material
  • Hydraulic cutterbar suspension is available as an option
  • Excellent value for money

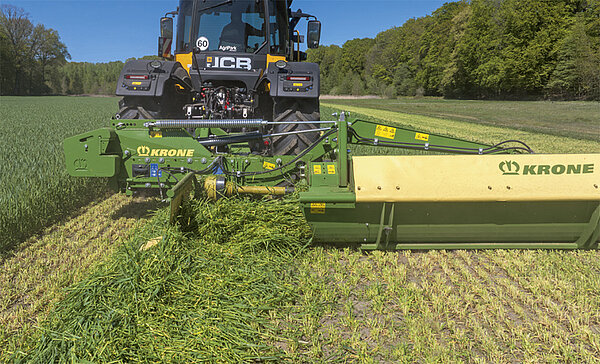

The high-capacity EasyCut R 360 and R 400 mowers are mounted machines that score on enormous work rates and productivity, The mowers are used not only for green forage production, but are also important for mowing extensification areas.

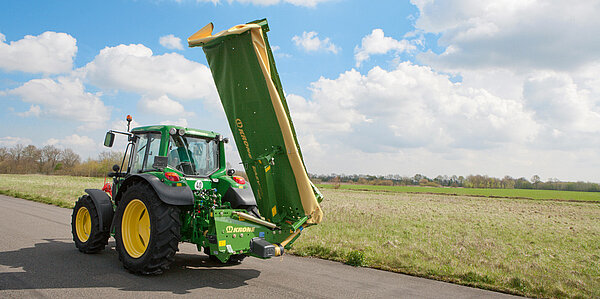

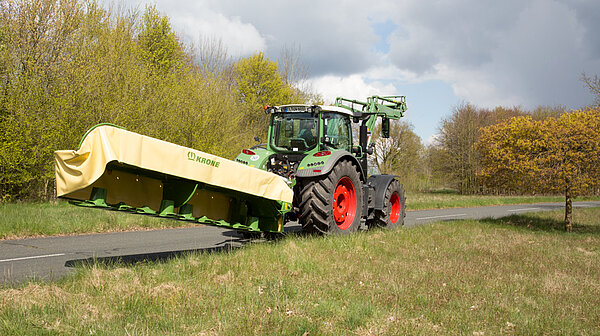

EasyCut R 360 and R 400: Transport and swathing modes
EasyCut R 360 and R 400: Transport and swathing modes
  • Low power requirement
  • DuoGrip Supported in the centre-of-gravity guided by suspension arms
  • Mechanical impact damage protection system reawards and upwards
  • SafeCut Cutterbar protection system for each cutting disc

The EasyCut R 360 and 400 models offer the specification and operator comfort you deserve:The good price-performance ratio, the high efficiency with low power requirements with the cutterbar suspended at the centre of gravity, the innovative SafeCut protection of the cutting discs, the compact transport, the simple operation and the good handling are facts which set standards in this category. Depending on specification and disc rotation, they spread or windrow the crop into two equal swaths.

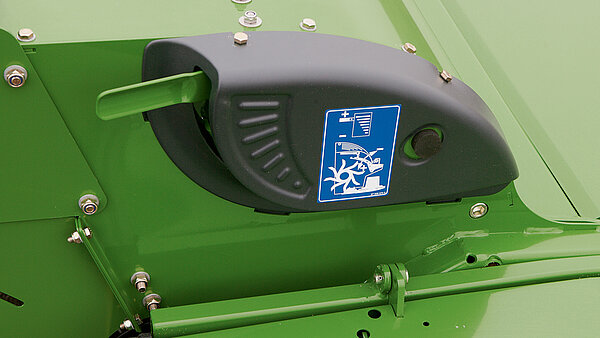

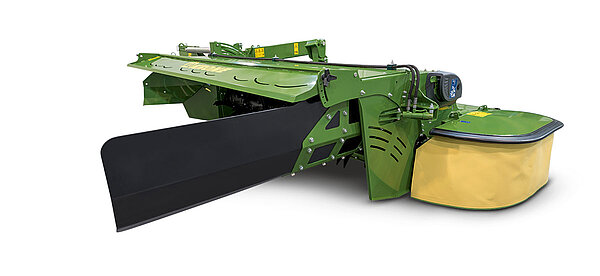

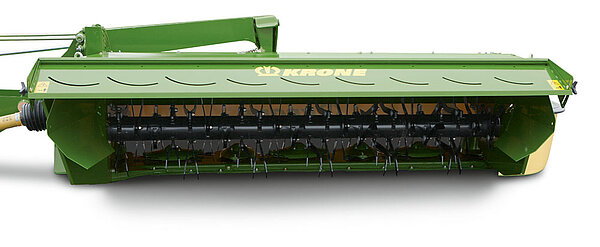

EasyCut R 280 CV and R 320 CV: The tine conditioner models
EasyCut R 280 CV and R 320 CV: The tine conditioner models
  • Easy and quick operation
  • Optional wide spreading crop deflectors
  • Infinitely variable windrow width

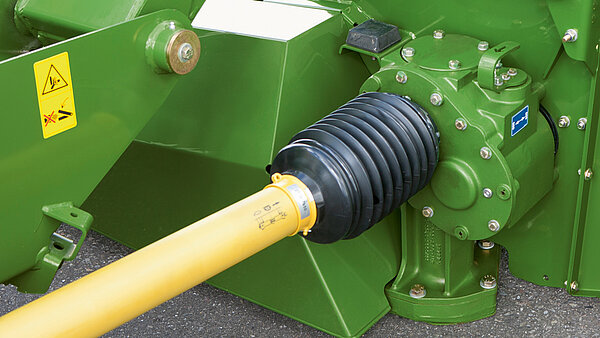

  • Manual gearbox; variable degree of conditioning

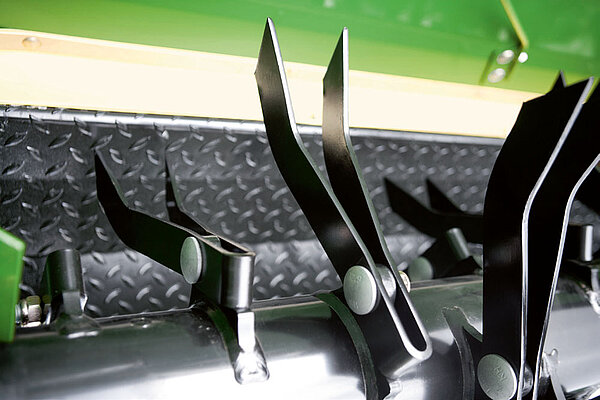

The KRONE CV rotor with V-shaped and grippy steel tines spreads the crop at the full working width. The large diameter of 64 cm  and the helical arrangement of the tines ensure a continuous crop flow, high intake capacity and excellent conditioning.

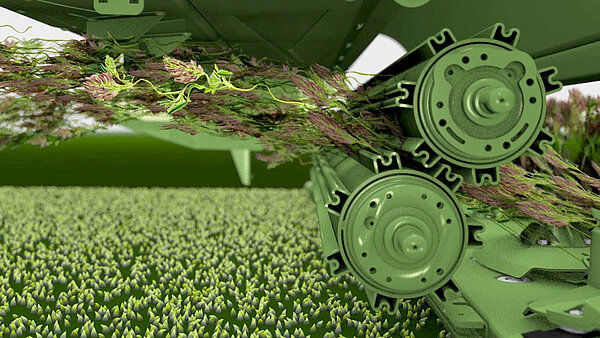

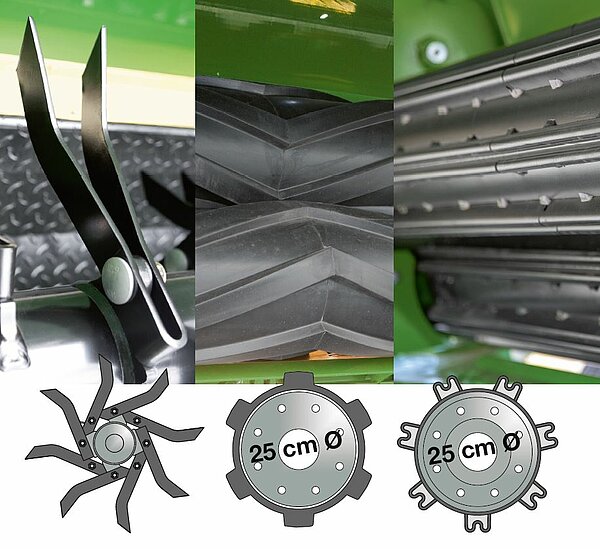

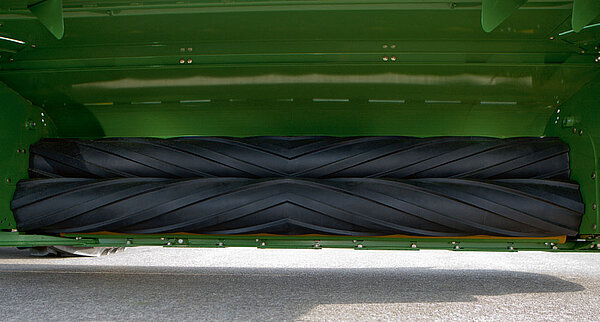

EasyCut R 280 CR and R 320 CR
EasyCut R 280 CR and R 320 CR

With roller conditioner (polyurethane rollers or M-Rolls)

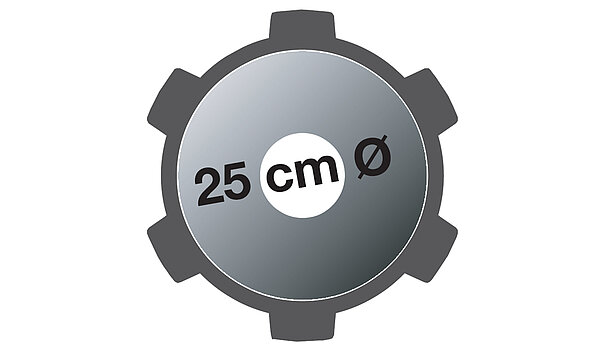

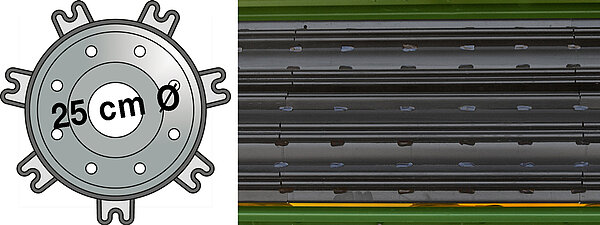

  • Continuous forage flow 25 cm roller diameter
  • High throughput with driven squeeze rollers
  • Excellent conditioning with profiled rollers – "grip effect"
  • Roller conditioner optionally with polyurethane rollers or as M-Rolls with steel profile

Leafy crops like Lucerne or clovers require a different type of conditioning than crops that are predominantly grass. The CR roller conditioners give particularly gentle treatment, leaving intact the delicate leaves which are so rich in protein and safeguarding the value of the feed. Spreading the crop will speed up wilting.

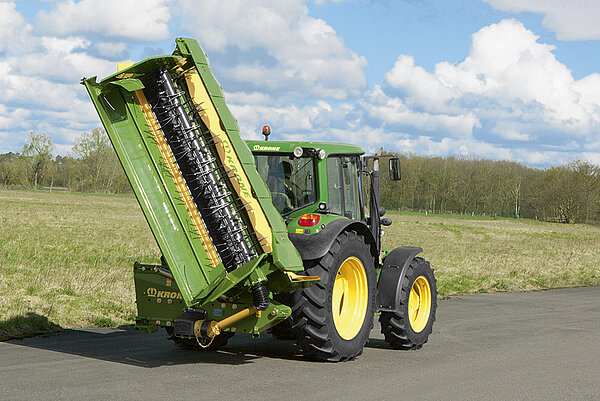

EasyCut R 280 / 320 CV and R 280 / 320 CR
EasyCut R 280 / 320 CV and R 280 / 320 CR
  • Safe transport with cutterbar folded upwards by 124-degree
  • Space-saving parking position with optional support jacks

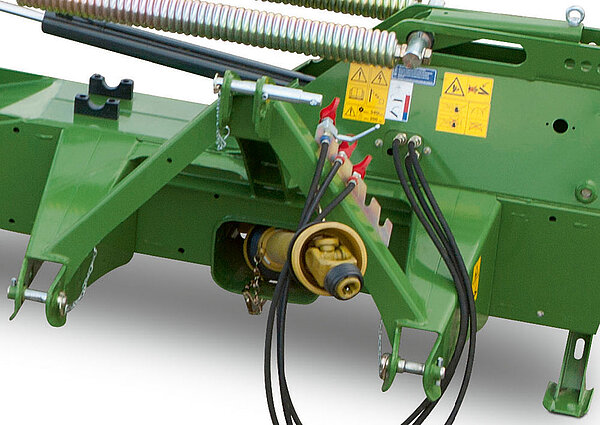

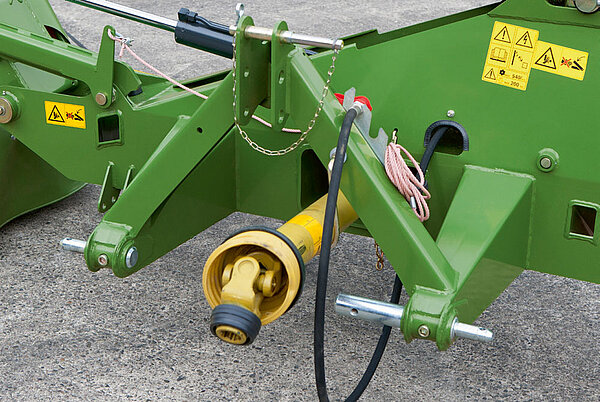

  • Optimum adjustment, laterally adjustable three-point hitch

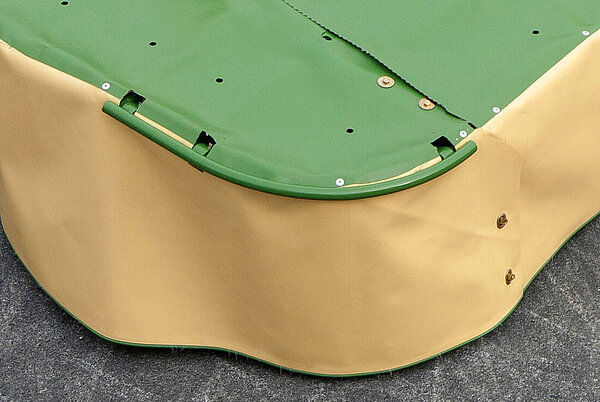

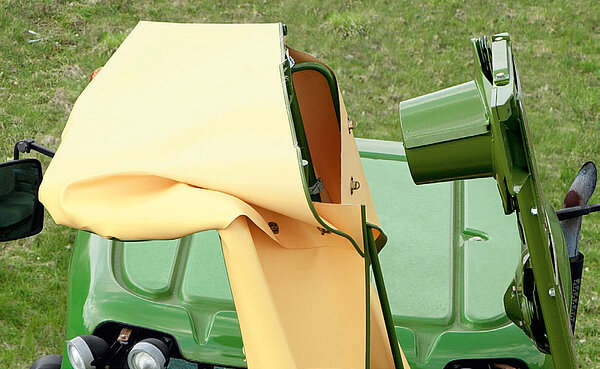

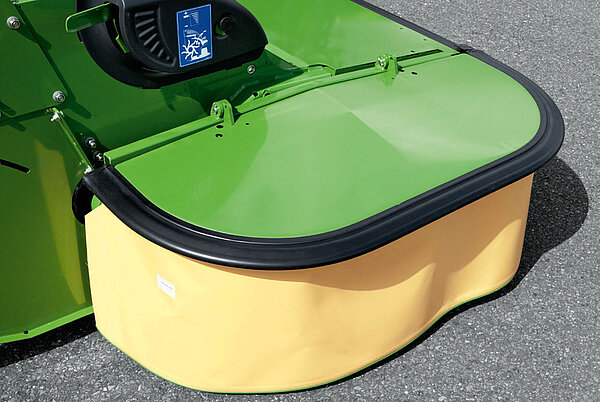

  • Durable guards with all-round rubber protective edges

KRONE is aware of farmers' needs and delivers the technology they need in order to maximize profits. The EasyCut R 280 CV/CR and R 320 CV/CR mowers From the 124° transport position for even weight distribution and a good overview during transport to the laterally adjustable headstock, you are optimally equipped with the EasyCut R 280 CV / CR and R 320 CV / CR.

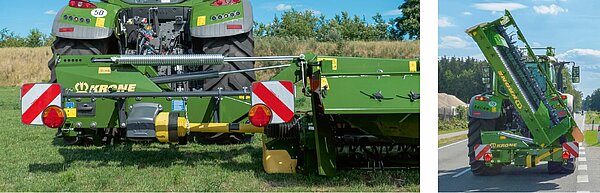

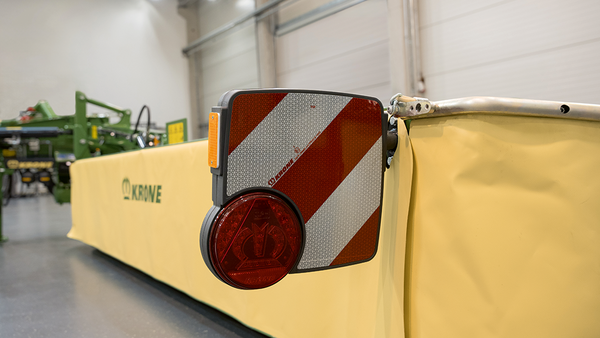

Accessories - Safe travel
Accessories - Safe travel

Optional LED lights for all EasyCut R models are available in an accessories kit, ensuring road safety also in poor light conditions.

Models

EasyCut R
EasyCut R 280 EasyCut R 320 EasyCut R 360 EasyCut R 400 EasyCut R 280 CV EasyCut R 280 CR EasyCut R 320 CV EasyCut R 320 CR
Working width (m) 2.73 3.16 3.60 4.04 2.73 2.73 3.16 3.16 configure
Transport height (m) 3.50 3.90 4.00 1.50 3.10 3.10 3.50 3.50 configure
No. of discs 4 5 6 7 4 4 5 5 configure
No. of top hats 2 2 2 2 2 2 2 2 configure
Tine conditioner CV - - - - Standard - Standard - configure
CR conditioner with rubber rollers - - - - - Standard - Standard configure
CR conditioner with M-Rolls (steel rollers) - - - - - optional - optional configure
Input power (kW/hp) 40 / 55 50 / 68 55 / 75 66 / 90 51 / 70 51 / 70 59 / 80 59 / 80 configure
configure configure configure configure configure configure configure configure
