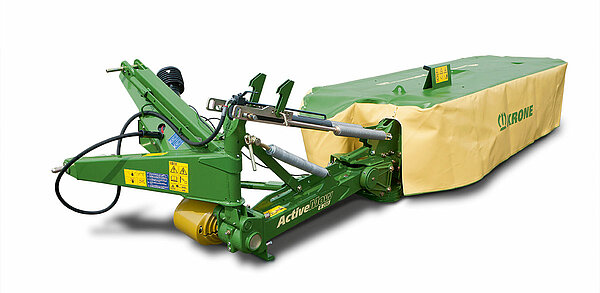

ActiveMow R

Rear-mounted disc mowers (Side-mounted)


Disc mowers

Trailed disc mowers meet a wide variety of needs and requirements which vary by country, region and harvest chain. Our extensive range of mower options gives you the choice to select the specification that suits your needs. For example, choose the V-steel tine conditioner with distributing hood or the CRi roller conditioner, the swathing belt and the hydraulic swathing boards.

  • Side-mounted mowers offering huge up/down travel
  • Coil springs optimising the ground pressure and adjusting without tools
  • Pto-shaft driveline for frictional connections
  • Robust and fully welded cutterbar without inner shoe
  • Quick-change blades
  • SafeCut: Individually protected discs
  • SmartCut: Stripeless cuts thanks to optimum blade overlaps
  • Compact in transport as the mower inclines to the middle of the tractor for optimum weight distribution and visibility
Please accept marketing-cookies to see this content.

in Austria

KRONE ActiveMow

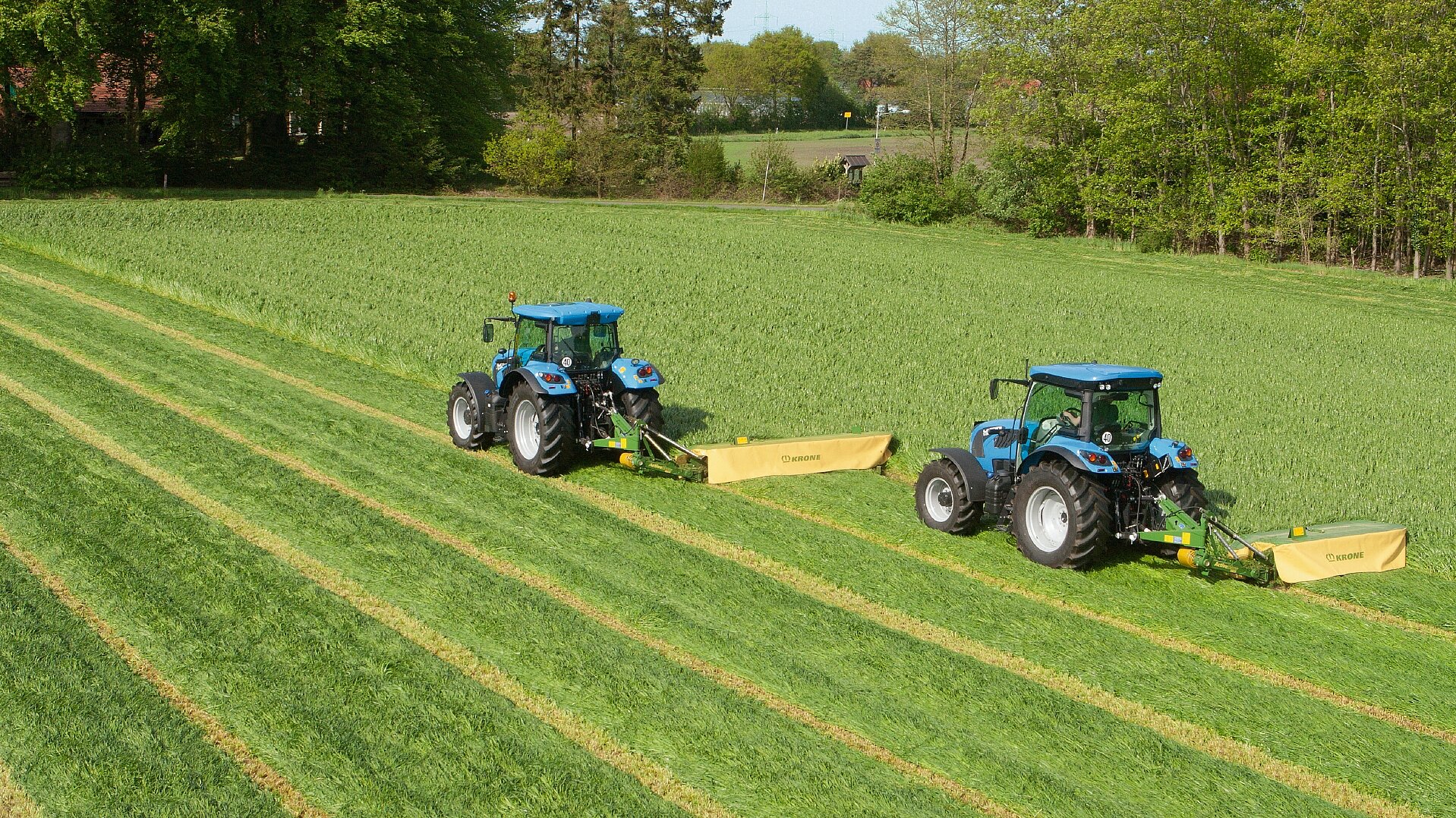

In Austria we tested the new ActiveMow extensively, shot a video and brought back a nice story.

Product video

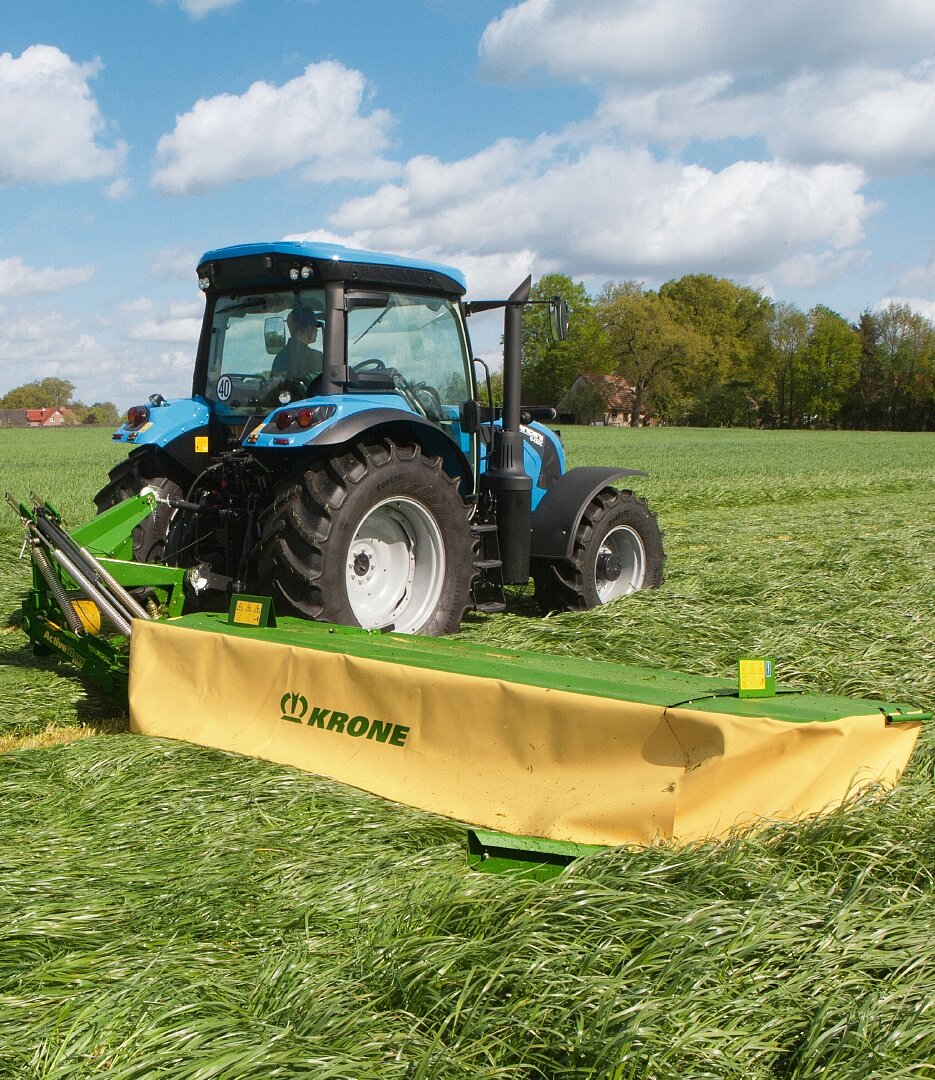

KRONE ActiveMow – Rear-mounted disc mowers

The KRONE ActiveMow mowers setting new benchmarks for lateral mowers. All ActiveMow models feature the same level of specification as the high-end KRONE mowers and the self-propelled high-capacity Big M, including a cutterbar with SmartCut effect, SafeCut cutterbar protection, a massive headstock and vertical storage as an option to minimise space requirement. The ActiveMow range lines up the following models: ActiveMow R 200 working at a 6' 8.6" width, ActiveMow R 240 with a 8' work width, ActiveMow R 280 with 9' 3.4" width, ActiveMow R 320 with a 10' 7.2" work width and ActiveMow R 360 working at 11' 10".

Please accept marketing-cookies to see this content.

Product features

KRONE disc mowers
  • Robust and fully welded cutterbar without inner shoe
  • SmartCut: Stripeless swath thanks to optimum blade overlaps
  • Quick-change blades: Standard
  • SafeCut: Impact protection for each individual disc
  • Side-mounted mowers offering huge up/down travel
  • Frictional drive via universal shafts and gearboxes
  • Optimum ground pressure via tension springs adjustable without tools
  • Compact in transport as the mower unit inclines to the middle of the tractor for optimum weight distribution and visibility

Mowing like a professional – the ­KRONE ActiveMow makes it possible at last. Perfect cutting quality ensures premium-quality forage, easy handling combined with compact and robust design guarantee maximum comfort and a long service life. The ­KRONE ActiveMow mower is the guarantor for successful forage harvesting.

The KRONE cutterbar
The KRONE cutterbar

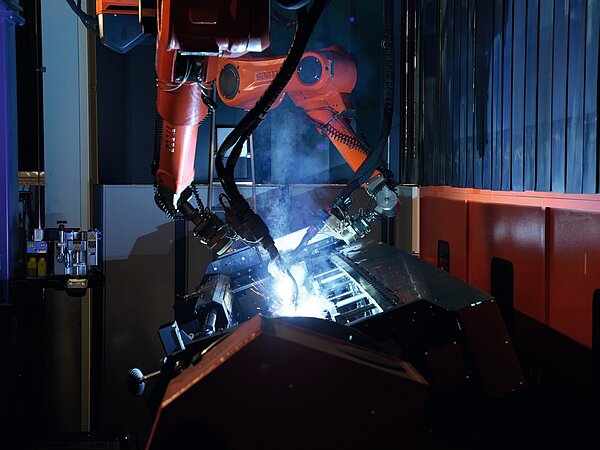

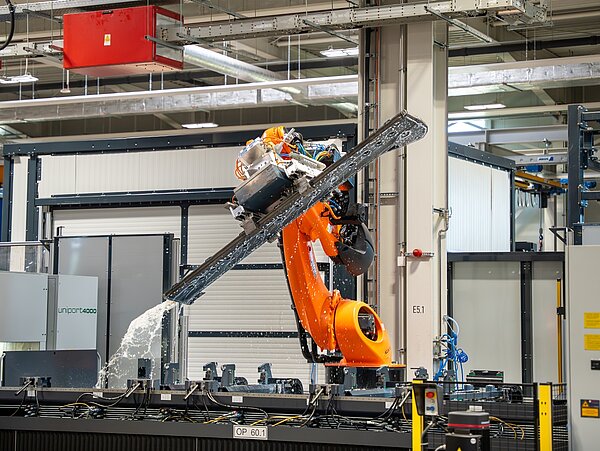

  • Fully welded: Robust, sealed and permanently lubricated

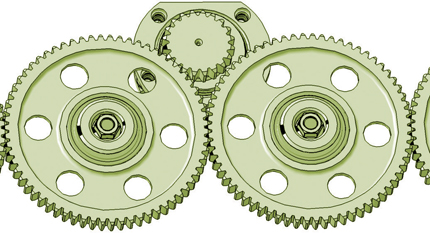

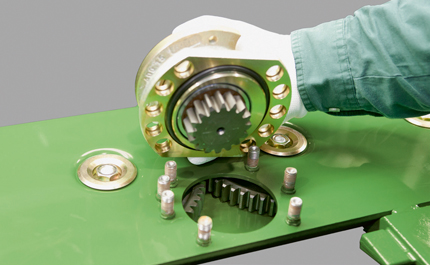

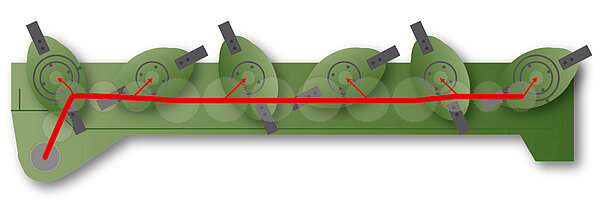

  • Long-lasting satellite drive with massive spur gears: quiet running and top efficiency

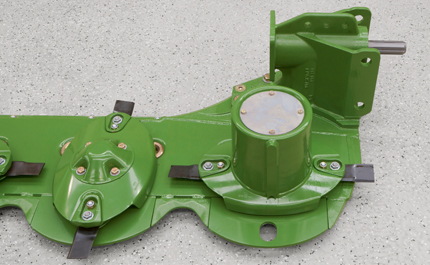

  • No inner shoe for trouble-free cutting

The enclosed and fully welded cutterbar meets the highest quality standards and operates dependably and leak-free over many years of hard work. Massive and oil-immersed spur gears impress by very quiet and reliable running in sustained peak-load operation.

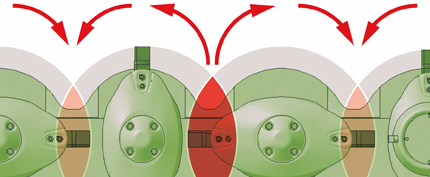

KRONE SmartCut
KRONE SmartCut

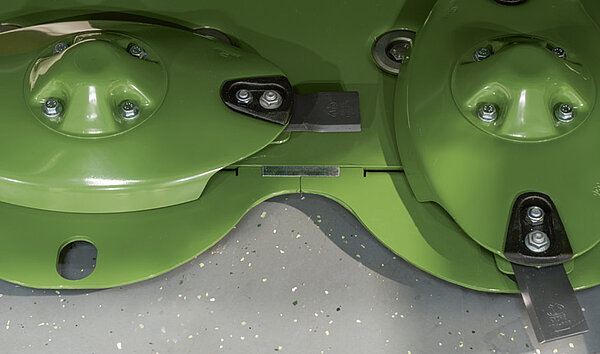

  • SmartCut for stripeless cuts
  • The wedge-shaped cutterbar guarantees clean cuts
  • Heavy-duty spur gears run in widely-spaced double bearings

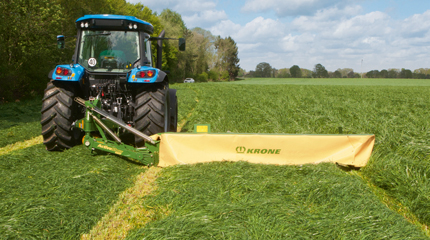

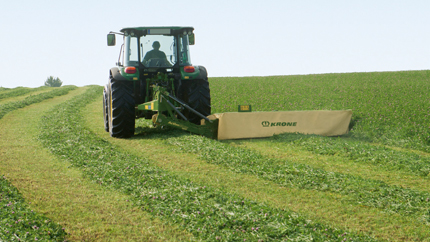

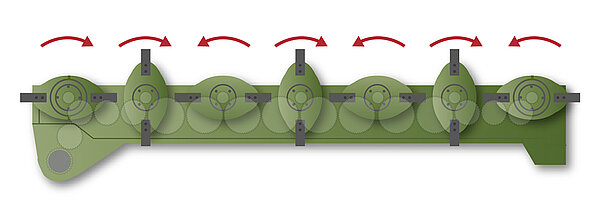

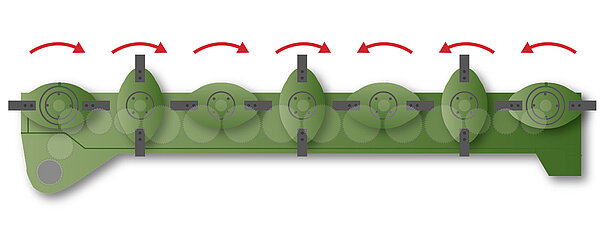

  • Swathing or spreading

The wedge-shaped cutterbar offers many different setting options that allow you to make short cuts in meadows and pastures and higher cuts in long-stemmed forage crops. An ActiveMow mower delivers a reliable performance and clean cut.

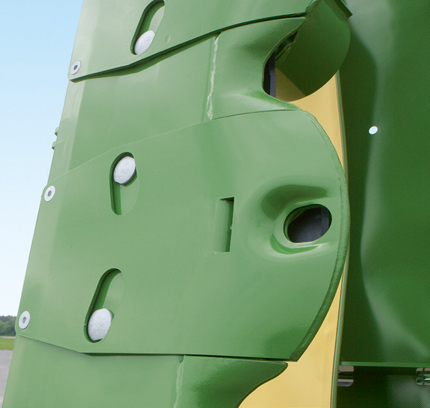

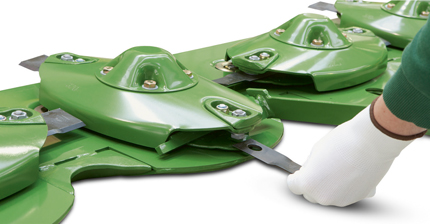

The KRONE quick-change blade system

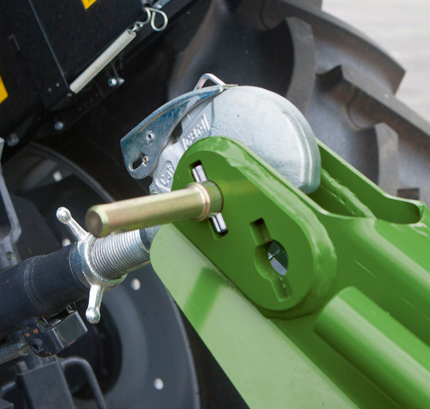

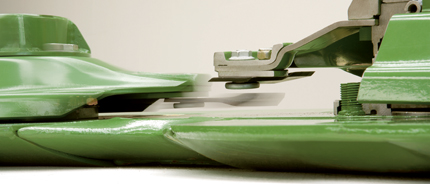

The KRONE quick-change blade system
  • Fast blade changes for high productivity

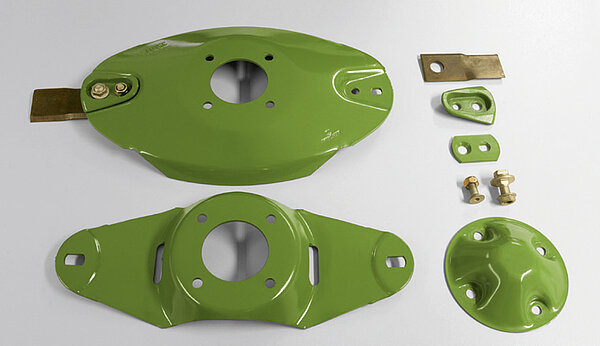

  • Replaceable blade fixing pins and scrapers
  • Wide sliding skids protecting the cutterbar and the turf

There are many reasons for choosing an ActiveMow disc mower. Just think of the quick-change blades, the inexpensive wear parts and the perfect disc arrangement for stripeless cuts.

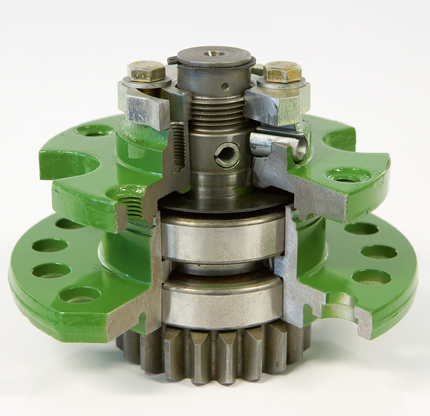

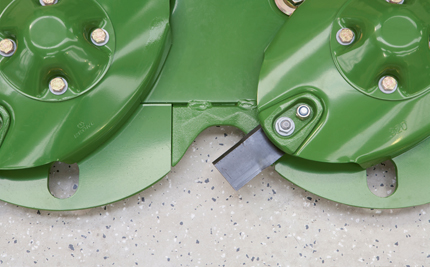

The KRONE SafeCut-System

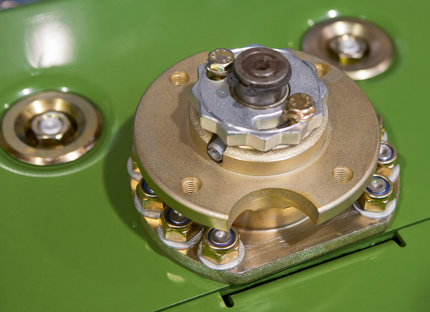

The KRONE SafeCut-System

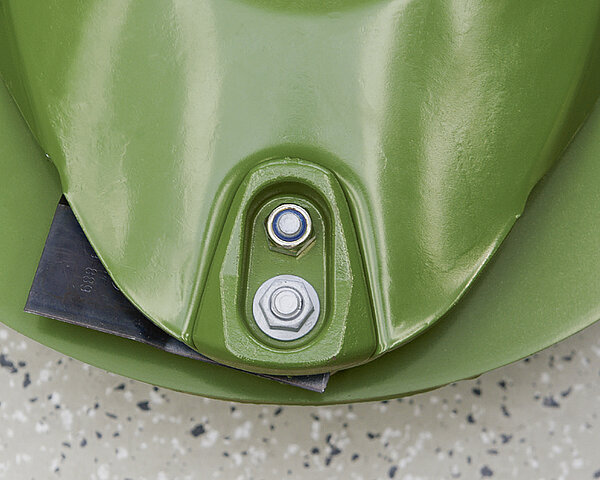

  • Full driveline protection
  • No collision with neighbouring cutting discs
  • Wear-free
  • Quick-change roll pins for minimum costs

You know it too well – foreign objects can cause great damage and costly repairs. ­KRONE SafeCut offers a maximum of protection and peace of mind. The system which comes as standard specification offers a unique level of disc protection and functionality.

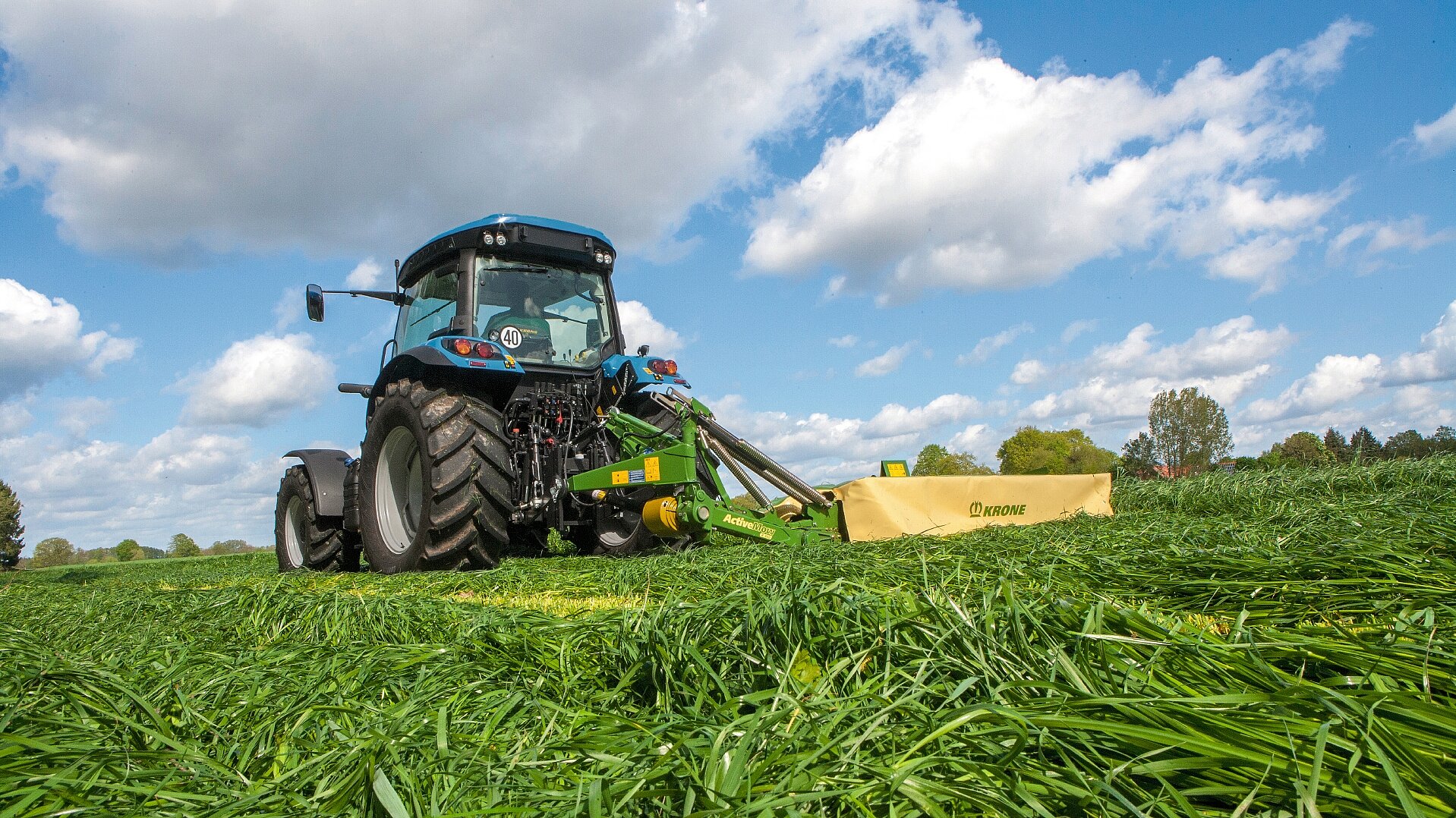

Tractor attachment and drives
Tractor attachment and drives

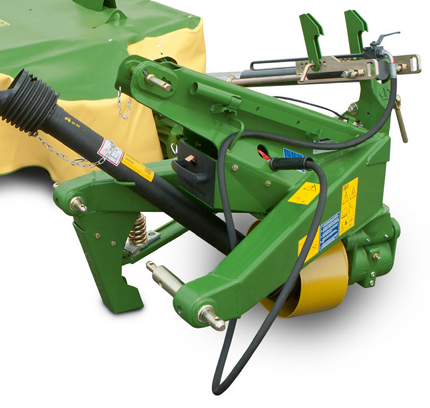

  • Tractor attachment with three-point headstock
  • Large travel range for superior performance in mountainous terrain

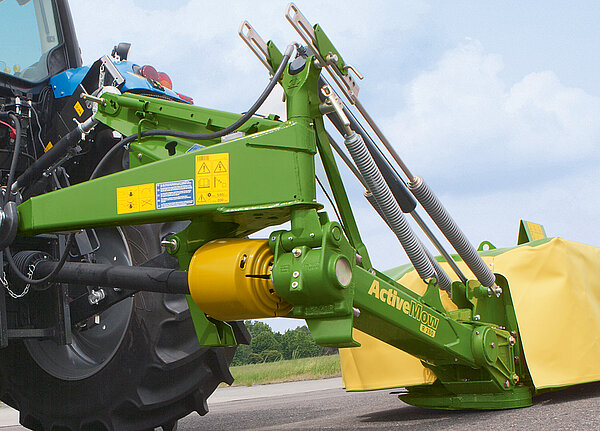

  • Direct and frictional driveline ensures no power is lost

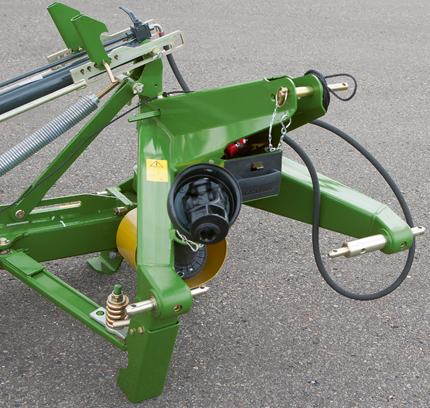

  • Working a full width by refitting pin on the link arms

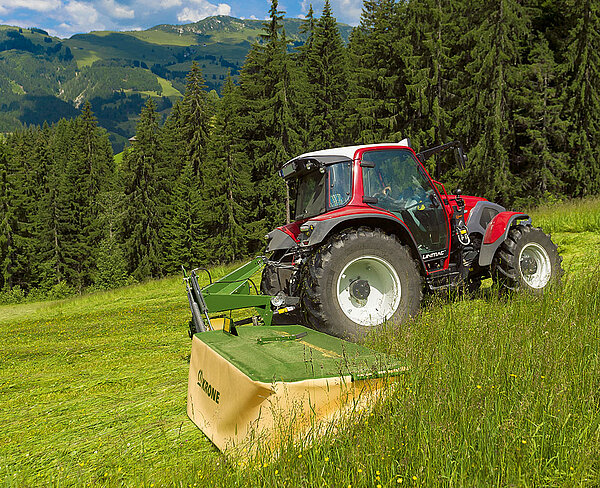

The side-mounted linkage is compact, low in weight and gives the mower large up/down travel. The ActiveMow mowers follow any ground contours and have proven absolutely well in mountain applications.

The ­KRONE mower relief

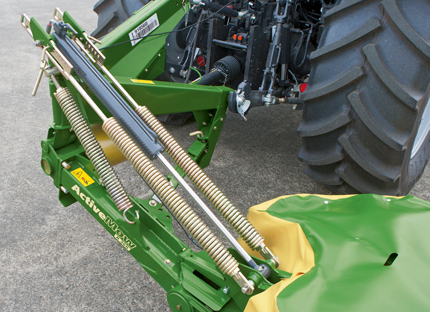

The ­KRONE mower relief

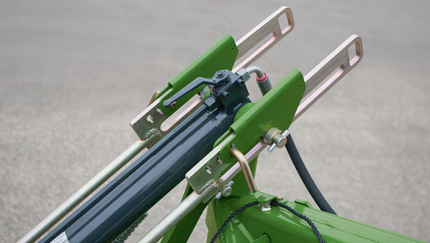

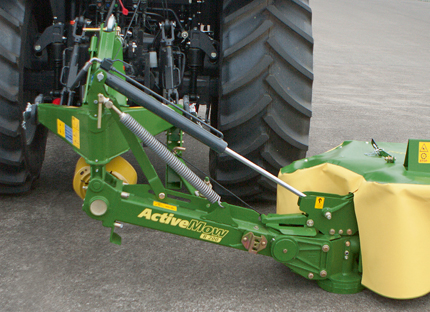

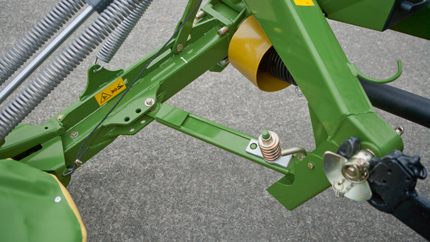

  • Coil springs provide the cutterbar suspension, optimise the ground pressure and ensure uniform cuts
  • The springs are conveniently adjusted by resetting pins
  • Extremely responsive for top contouring

Manually adjusted, the ActiveMow suspension springs rapidly adapt the ground pressure for the machine to produce perfect cuts in undulating terrain and at high work rates and as a result of this clean and high-quality forage as well as a fast and uniform re-growth.

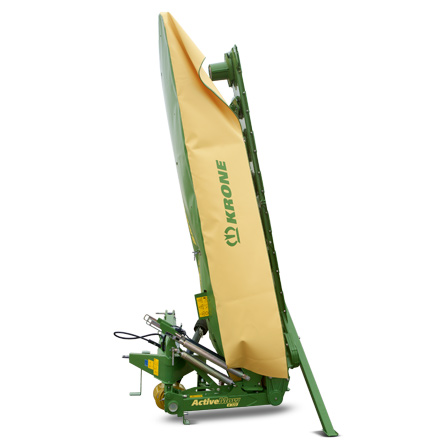

Transport und parking position
Transport und parking position

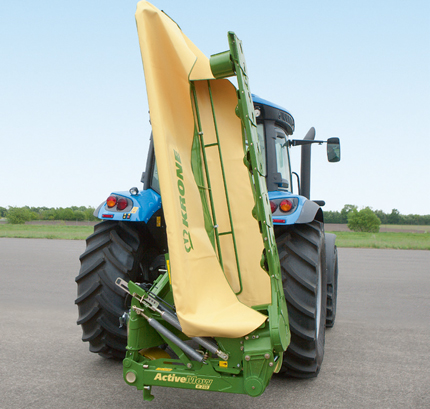

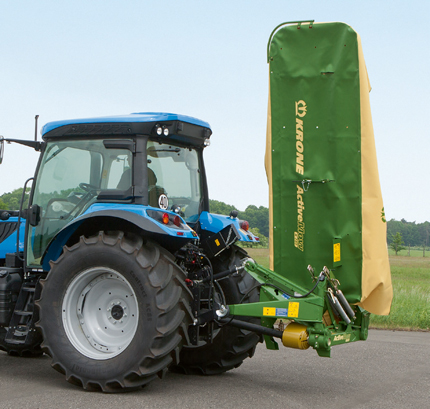

  • 100° transport position for safe travel on public roads and clear view behind
  • Compact configuration for fast travel

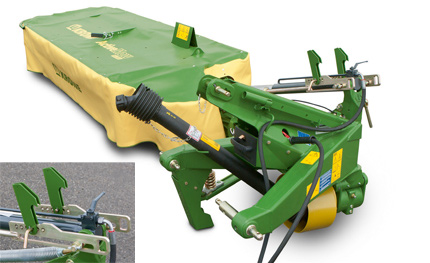

  • Stored on stands and in vertical position for minimum storage space

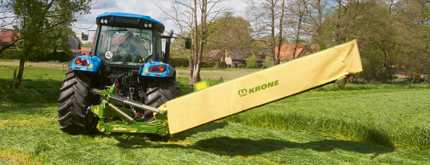

  • Lower links are not raised during the headland turn

KRONE disc mowers offer a wide range of practical solutions that make your work easier andmore efficient. These include the 100° transport position for a uniform weight distribution and excellent visibility during transport and the optional vertical position for storage.


ActiveMow R 200 ActiveMow R 240 ActiveMow R 280 ActiveMow R 320 ActiveMow R 360
Working width (m) 2.05 2.44 2.83 3.22 3.61 configure
No. of discs 3 4 5 6 7 configure
No. of top hats 2 2 2 2 2 configure
Input power (kW/hp) 27 / 37 30 / 41 40 / 55 50 / 68 55 / 75 configure
configure configure configure configure configure
