EasyCut TS/TC

Trailed disc mowers

EasyCut TS/TC

Trailed disc mowers

Performing in the most versatile conditions around the world, the new and stylish EasyCut TS/TC models stand out for their enormous versatility and flexibility. Choose from various drawbar ends and three different conditioners and opt for the Collect swathing belt as examples of the versatility on offer.

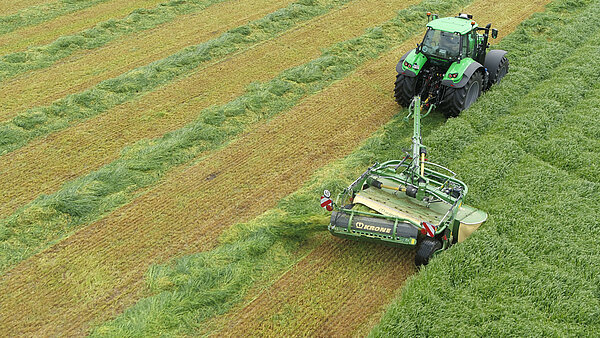

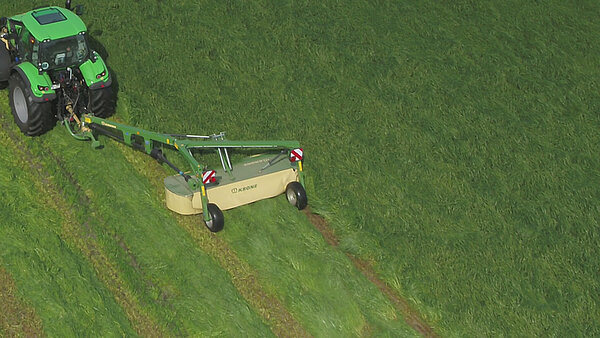

  • Mowers with side-mounted (TS) and mid-mounted drawbar (TC)
  • Robust and fully welded cutterbar with massive and permanently lubricated sprockets
  • SmartCut: Stripeless cuts from extra wide blade overlappings
  • SafeCut: Individually protected discs
  • Quick-change blades are standard specification
  • DuoGrip: Center-of-gravity suspension with dual grip control for perfect contouring
  • Tine conditioner (CV) or roller conditioner (CR) for fast and uniform wilts
  • Optional Collect cross belt increases your ­swathing options
Please accept marketing-cookies to see this content.

Product video

KRONE EasyCut TC/TS trailed disc mowers

The trailed mowers with a working width of 10' 32" to 10' 4.8" offer the highest degree of flexibility and meet the most diverse requirements worldwide. The TS models impress by their compact design, the TC models by their wide range of applications. With the central drawbar you have the possibility to work at the right or the left side of the tractor. These trailed mowers are available with either V-steel tine or roller conditioner. All conditioner models can be equipped with the KRONE Collect system.

Animation

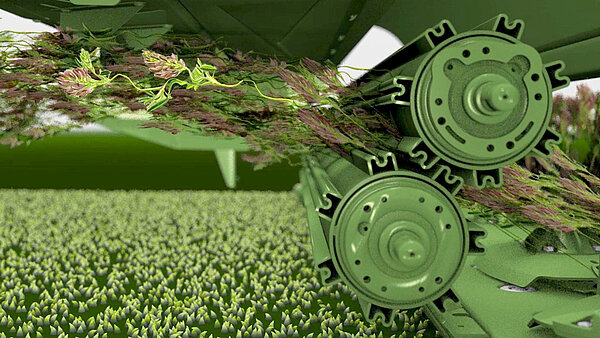

KRONE M-Rolls conditioner

The new trailed machines are available with the well-proven V-steel tines (CV) or the CR roller either with rubber rollers or the new M-Rolls. These feature an M-profile tread that suits especially demanding conditions such as leafy crops or stone-strewn fields. The 9' 9.6" diameter M-Rolls ensure an effective crop flow even in high-yielding crops. The crop is bent multiple times, reducing the drying time in the field and ensuring a uniform wilting process and an exemplary quality of forage.

Please accept marketing-cookies to see this content.

Product features

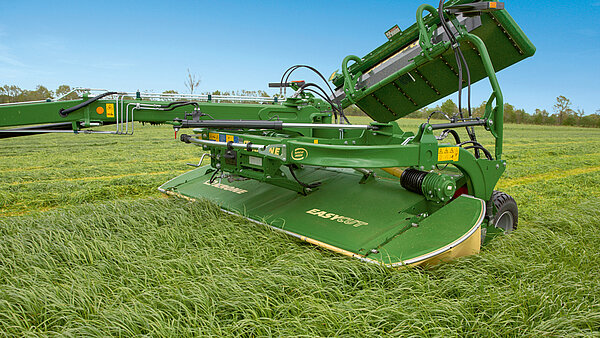

EasyCut TS/TC - The new trailed mowers from KRONE
EasyCut TS/TC - The new trailed mowers from KRONE
  • Mowers with side-mounted (TS) and mid-mounted drawbar (TC)
  • Robust and fully welded cutterbar with massive and permanently lubricated sprockets
  • SmartCut: Stripeless cuts from extra wide blade overlappings
  • SafeCut: Individually protected discs
  • Quick-change blades are standard specification
  • DuoGrip: Centre-of-gravity suspension with dual grip control for perfect contouring
  • Tine conditioner (CV) or roller conditioner (CR) for fast and uniform wilts
  • Optional Collect cross belt increases your swathing options

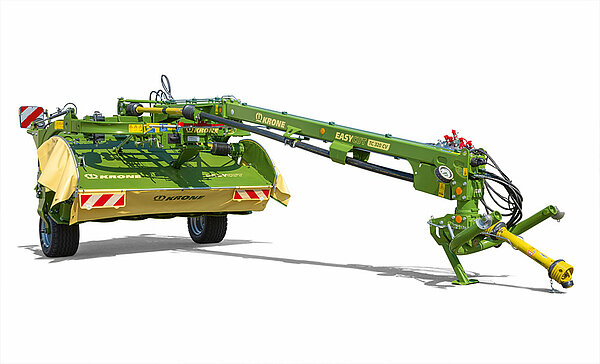

The EasyCut TS/TC models
The EasyCut TS/TC models
  • Multiple attachment options for great versatility
  • Choice of conditioners to suit different crops
  • Tried-and-tested – the solid EasyCut cutterbar
  • Hydraulic suspension for superb contouring and sward protection

Performing in the most versatile conditions around the world, the new and stylish EasyCut TS/TC models stand out for their enormous versatility and flexibility. Choose from various drawbar ends and three different conditioners and opt for the Collect swathing belt as examples of the versatility on offer.

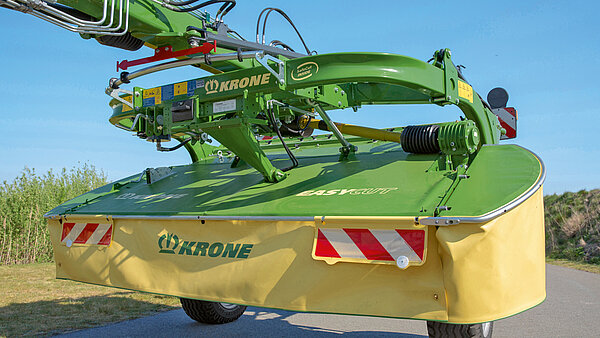

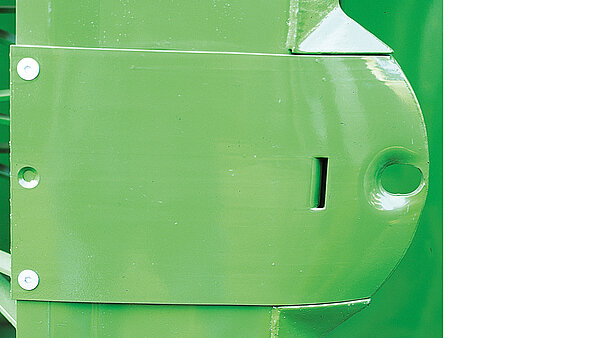

The KRONE cutterbar
The KRONE cutterbar

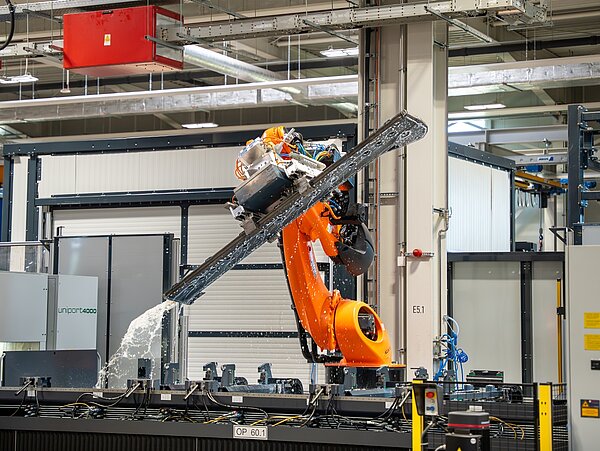

  • Fully welded: Robust, sealed and permanently lubricated

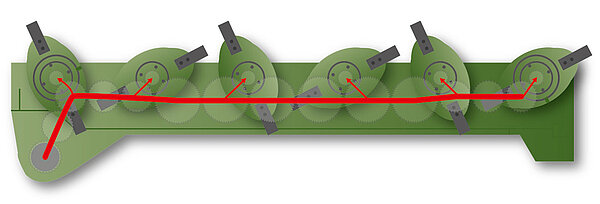

  • The durable satellite drives have massive spur gears for quiet running and superior Efficiency

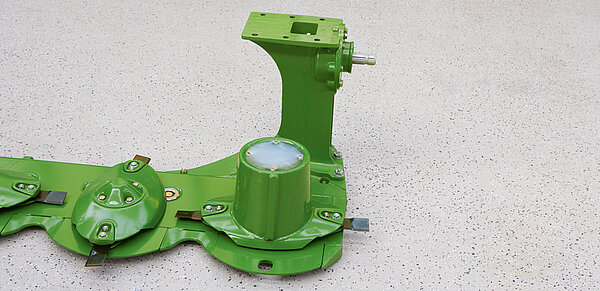

  • No inner shoe for trouble-free cutting

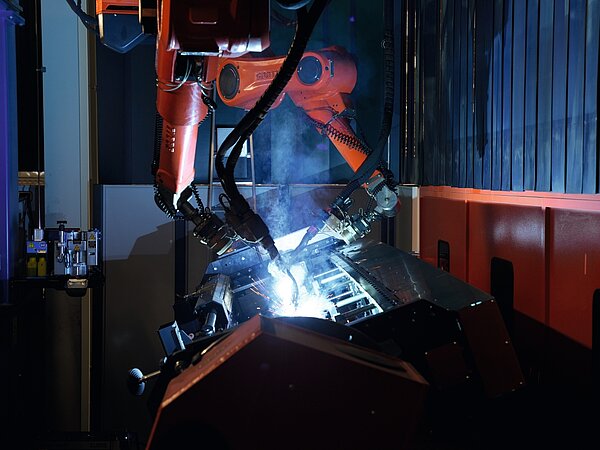

The enclosed and fully welded cutterbar meets the highest quality standards and operates dependably and leak-free over many years of hard work. Massive and oil-immersed spur gears impress by very quiet and reliable running in sustained peak-load operation.

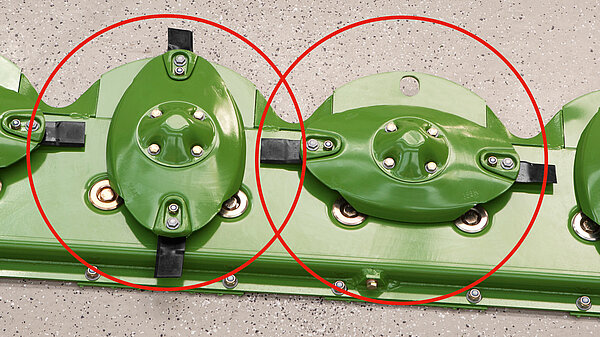

The KRONE cutterbar – Stripeless cuts, swathing, spreading
The KRONE cutterbar – Stripeless cuts, swathing, spreading
  • The wedge-shaped cutterbar guarantees clean cuts

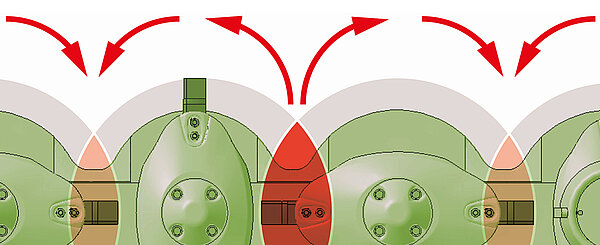

  • SmartCut: Generous blade overlap for an optimum crop flow to the rear

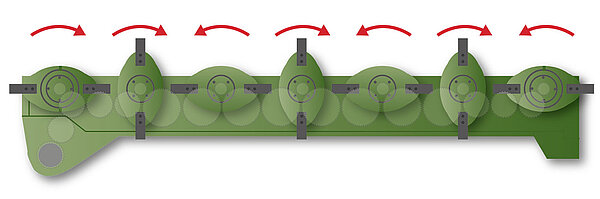

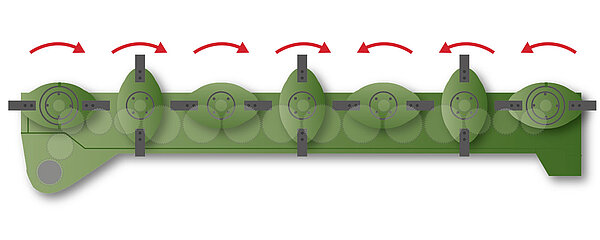

  • Swathing or not swathing

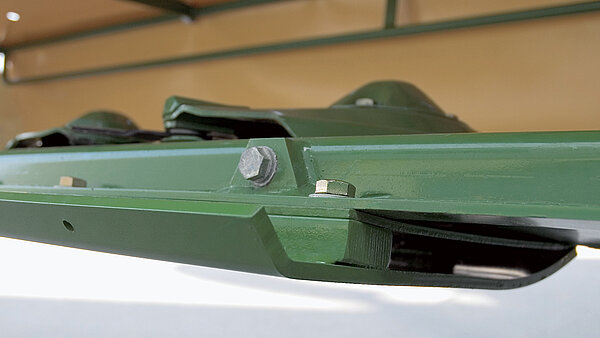

Offering flexible height control, the wedge-shaped cutterbar gives users the versatility to cut short grass in meadows and pastures but also long-stemmed forage crops. An EasyCut mower delivers a reliable performance and clean cut.

The KRONE quick-change blade system
The KRONE quick-change blade system

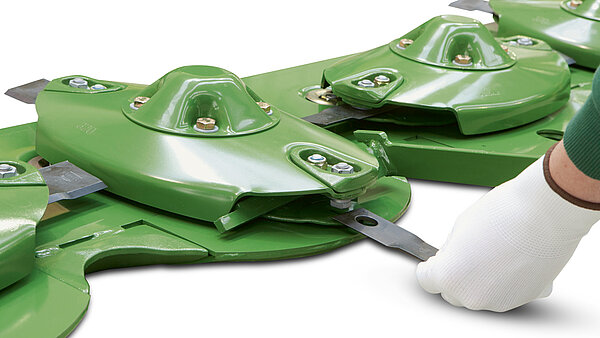

  • Quick-change blades allow operators to swap blades in the field quickly

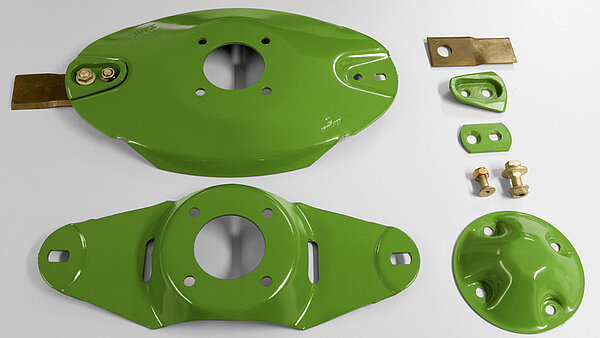

  • Modular disc design

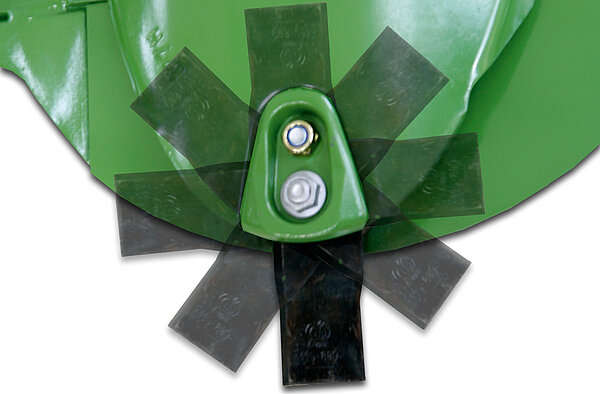

  • Minimum blade wear: 360° blade Action
  • Excellent cuts: Optimum blade overlap

There are many reasons for choosing an EasyCut disc mower. Just think of the quick-change blades, the inexpensive wear parts and the perfect disc arrangement for stripeless cuts.

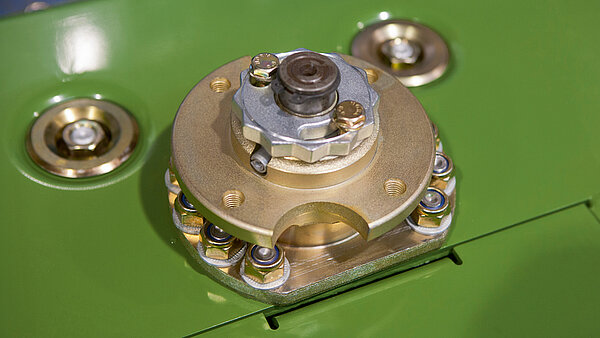

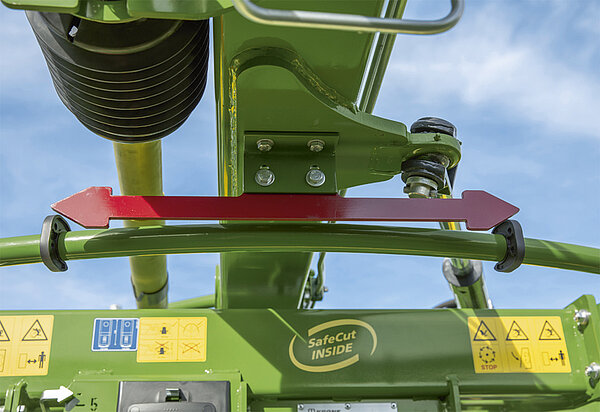

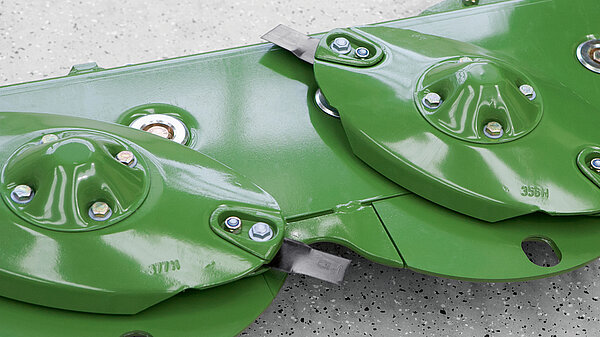

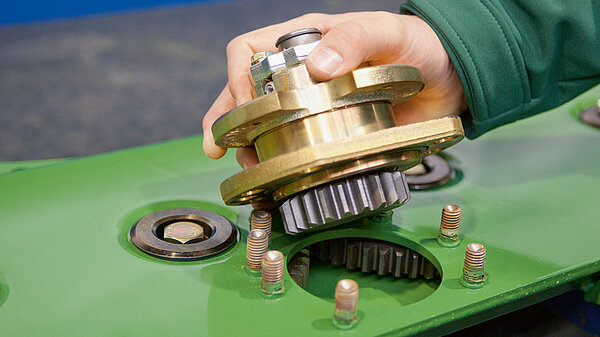

The KRONE SafeCut system

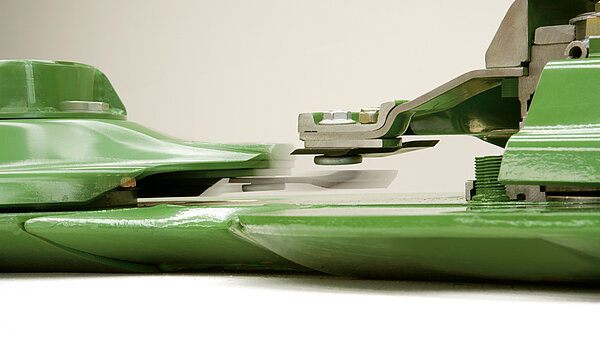

The KRONE SafeCut system

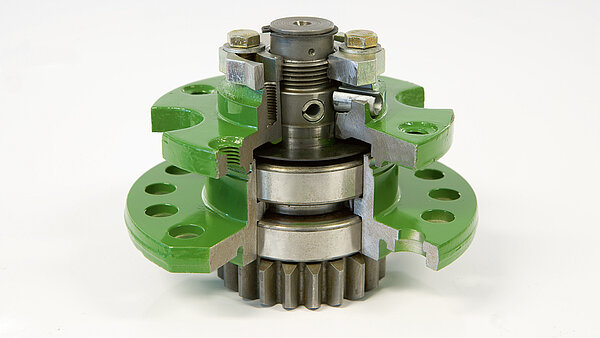

  • Full driveline protection for added reliability
  • Neighbouring discs will not collide
  • Wear-free
  • Quick-change roll pins for minimum downtime and Costs.

Colliding discs may cause damage and involve costly repairs. KRONE SafeCut offers a maximum of protection and peace of mind. The award winning system on all EasyCut models offers a unique level of protection and operator comfort. SafeCut is a base specification feature on all EasyCut TS/TC models.

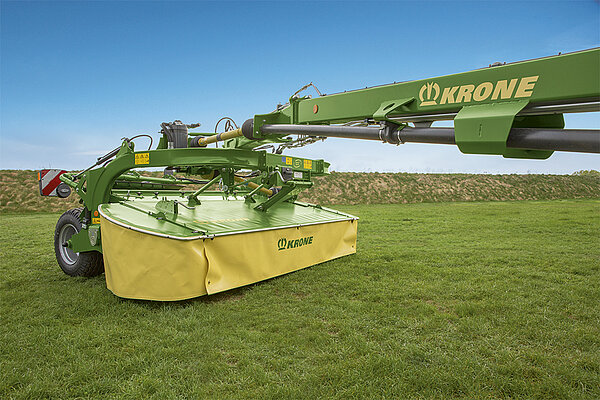

The KRONE DuoGrip suspension
The KRONE DuoGrip suspension
  • DuoGrip: Suspends the mower in its centre of gravity and guides it via two arms
  • Uniform ground pressure across the entire work width
  • Excellent guidance: less side thrust, clean cuts
  • Hydraulic cutterbar suspension for superb contouring and sward protection

The KRONE DuoGrip suspends the mower in its centre of gravity and guides it via two arms. This design allows the cutterbar to follow the ground contours even more accurately for a better protection of the sward. This way, the machine produces high-quality forage even in difficult conditions.

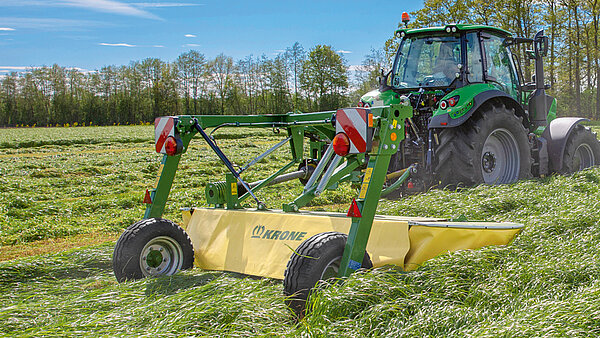

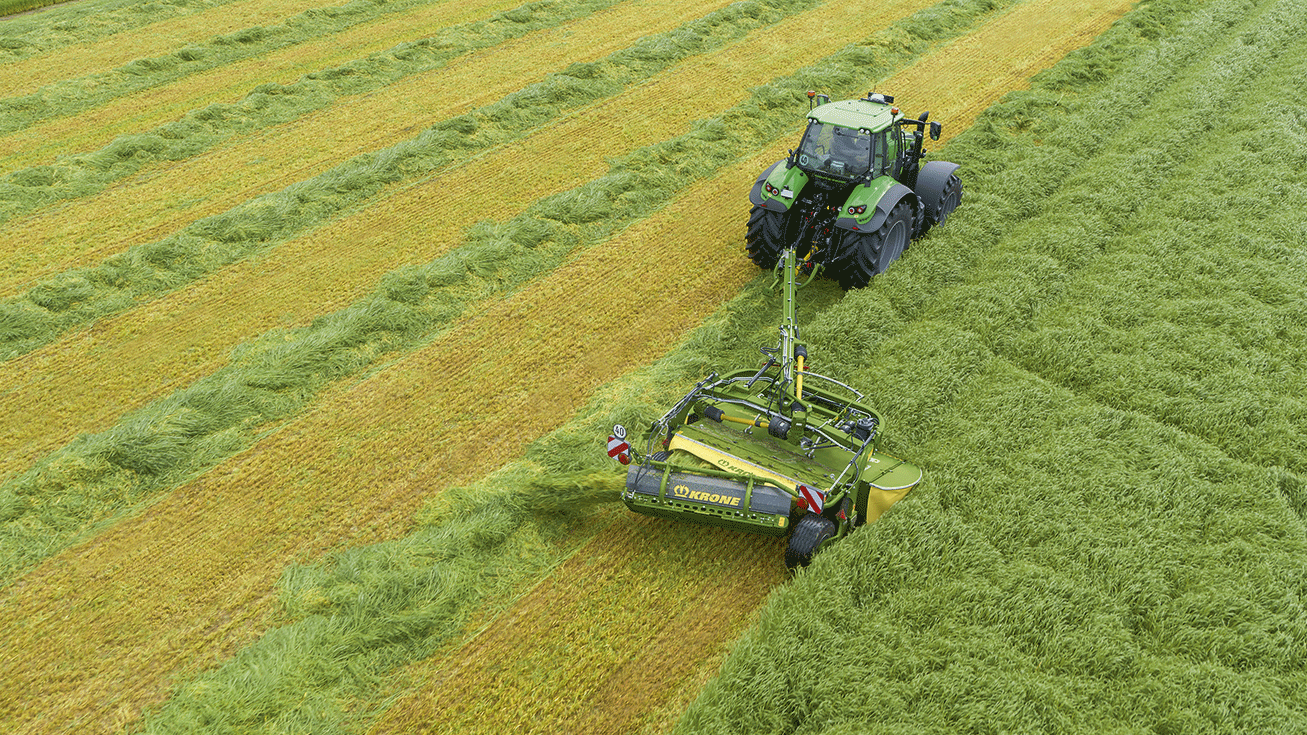

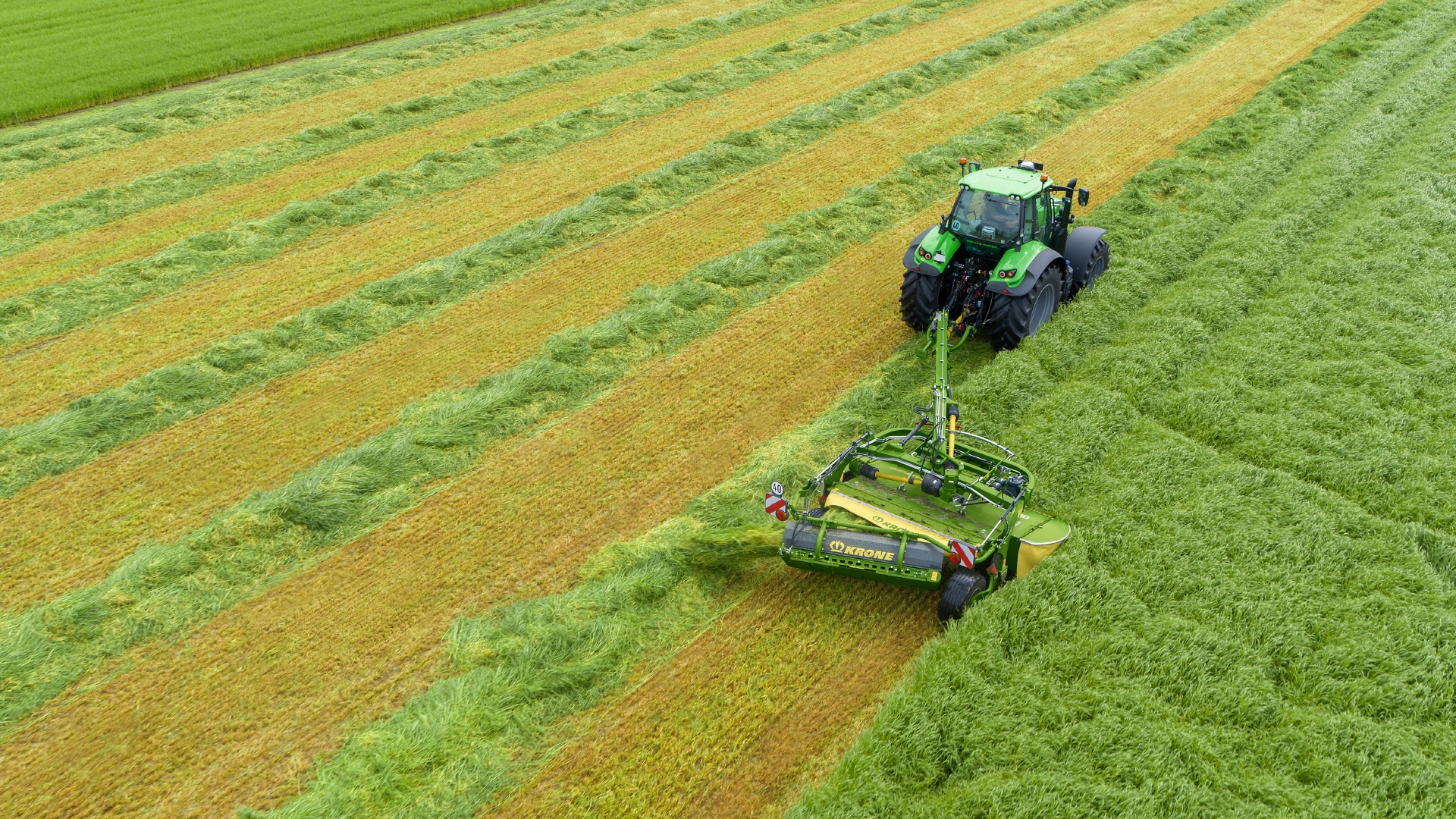

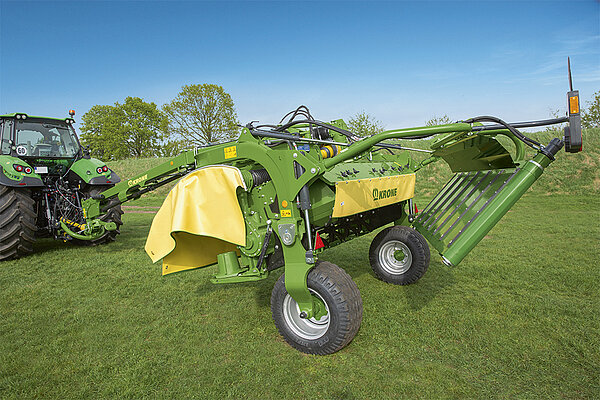

EasyCut TS 320
EasyCut TS 320

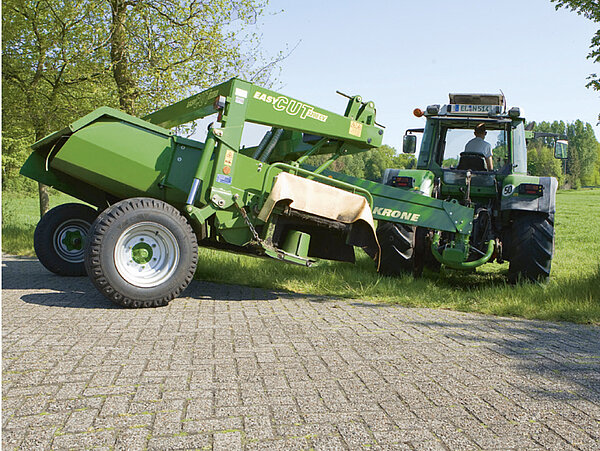

  • The ideal solution for smaller tractors – shifting weight off the rear axle
  • Light-pulling and compact machine with a sturdy V-Frame

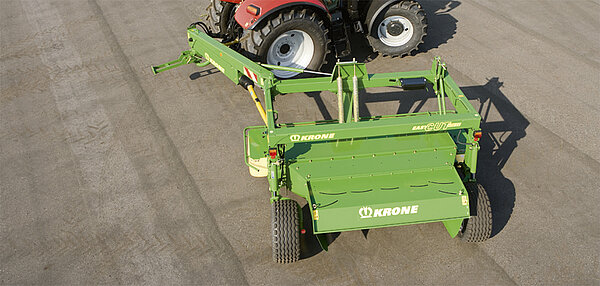

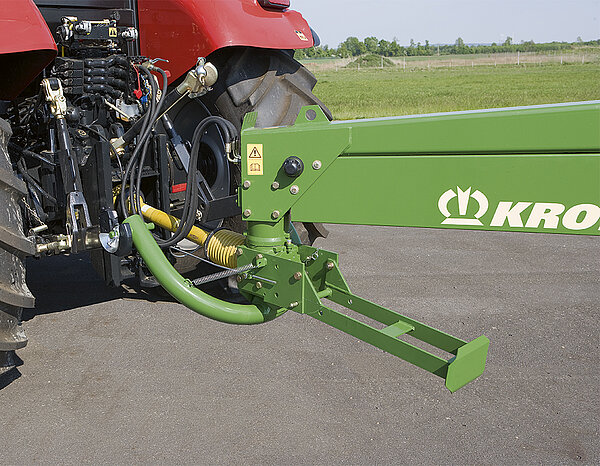

  • Slewing gearbox for round and round work and on-the-spot turns
  • DuoGrip centre-of-gravity Suspension

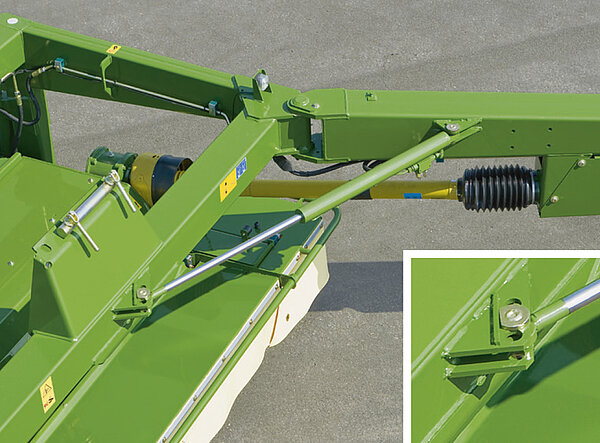

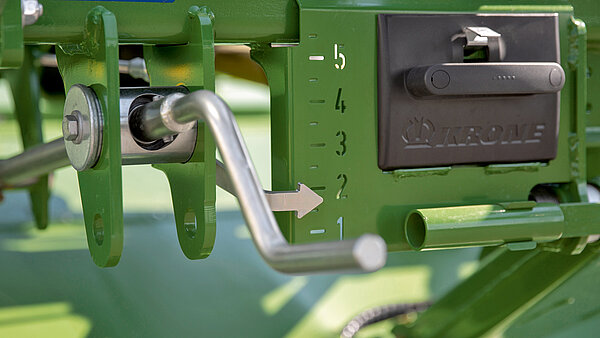

  • Convenient depth control from a crank handle

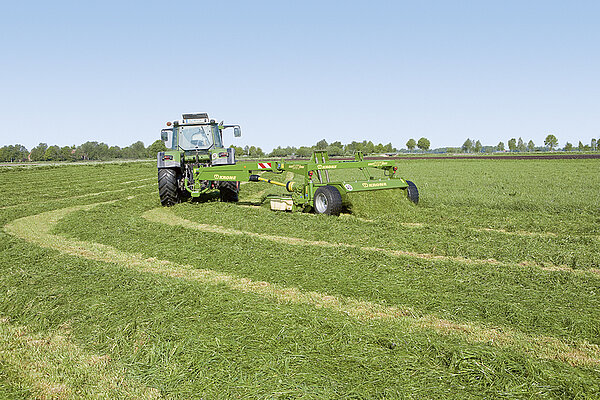

Are you looking for a powerful trailed mower without conditioner that works at a width of about 3.16 m? Then the Krone EasyCut TS 320 with DuoGrip centre-of-gravity suspension is the machine for you. This mower stands out for an extremely low power input, maximum stability as well as a superior level of specification and operator comfort.

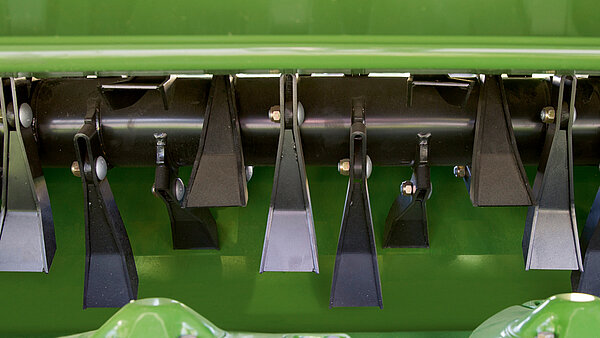

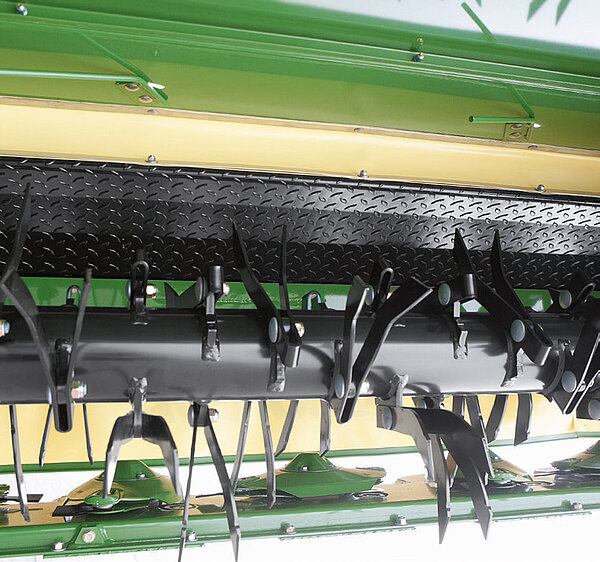

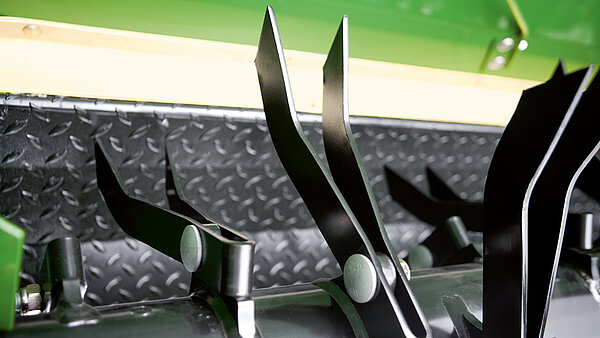

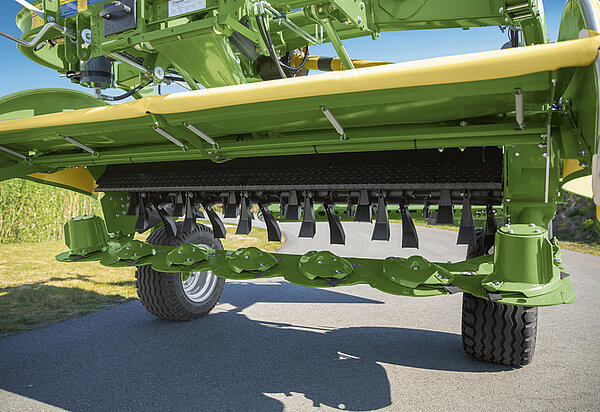

The KRONE conditioner with V-type steel tines
The KRONE conditioner with V-type steel tines
  • Easy and quick Operation

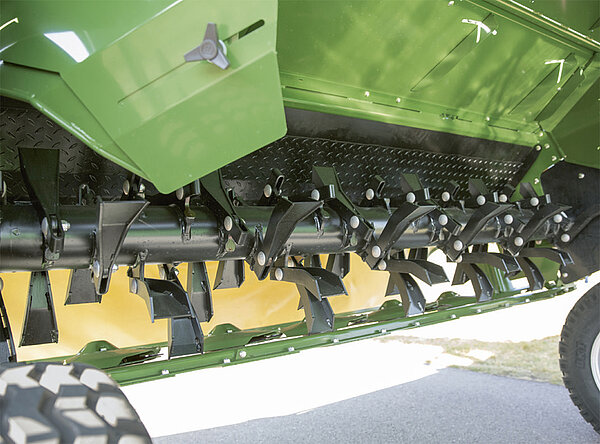

  • Optional deflectors spread the material across the full width

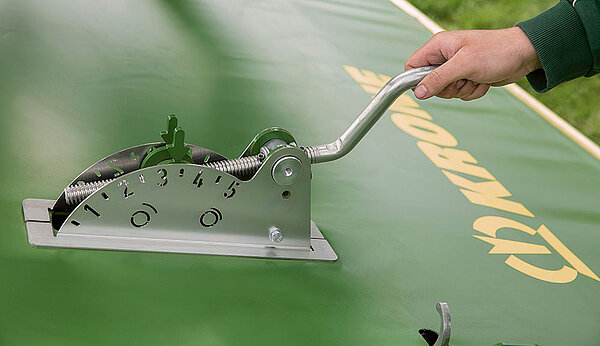

  • Infinitely variable swath widths

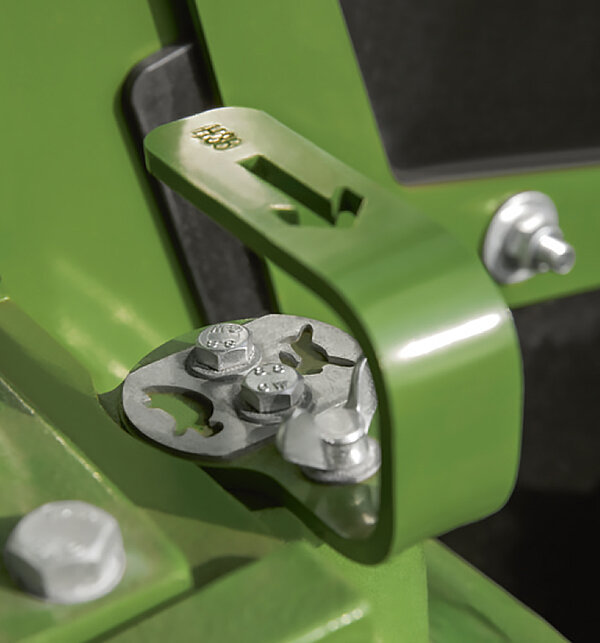

  • Mechanical gearbox, variable conditioning intensity

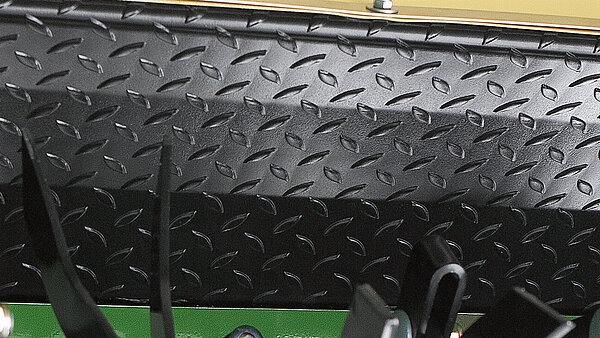

The KRONE CV rotor with V-shaped and grippy steel tines spreads the crop at the full working width. Its massive 64 cm diameter and the helical arrangement of the tines warrant a continuous crop fl ow, high throughputs and superior conditioning.

Die Krone Walzenaufbereiter
Die Krone Walzenaufbereiter

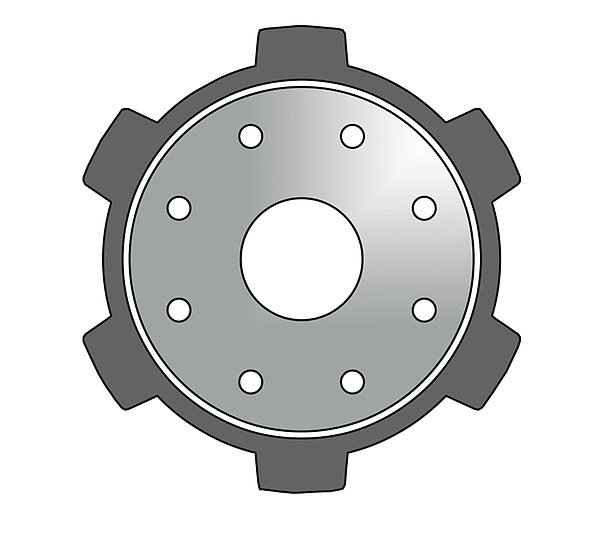

  • Consistent crop flow by 25 cm diameter rollers
  • High throughput from powered crop processor rollers
  • Top quality from profiled rollers - thanks to their meshing effect

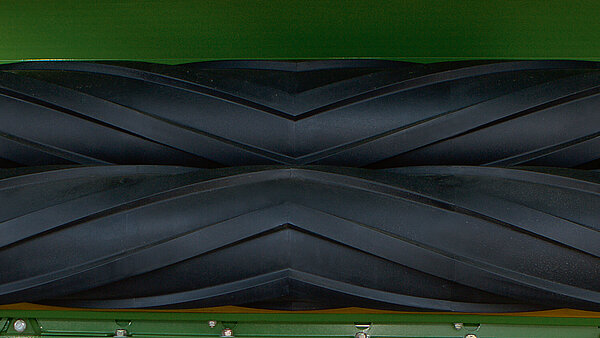

  • Choice of roller conditioners – rubber rollers or steel M-Rolls

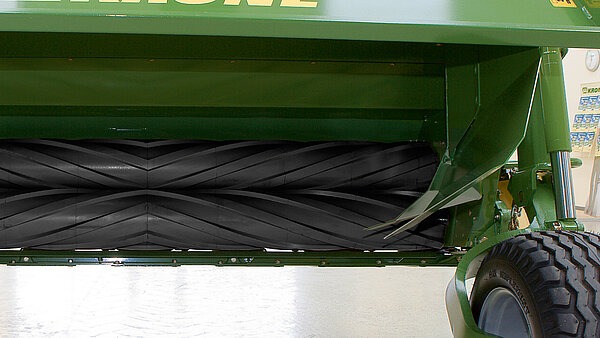

Leafy crops like Lucerne or clovers require a different type of conditioning than crops that are predominantly grass. The CR roller conditioners give particularly gentle treatment, leaving intact the delicate leaves which are so rich in protein and safeguarding the value of the feed. Spreading the crop will speed up wilting.

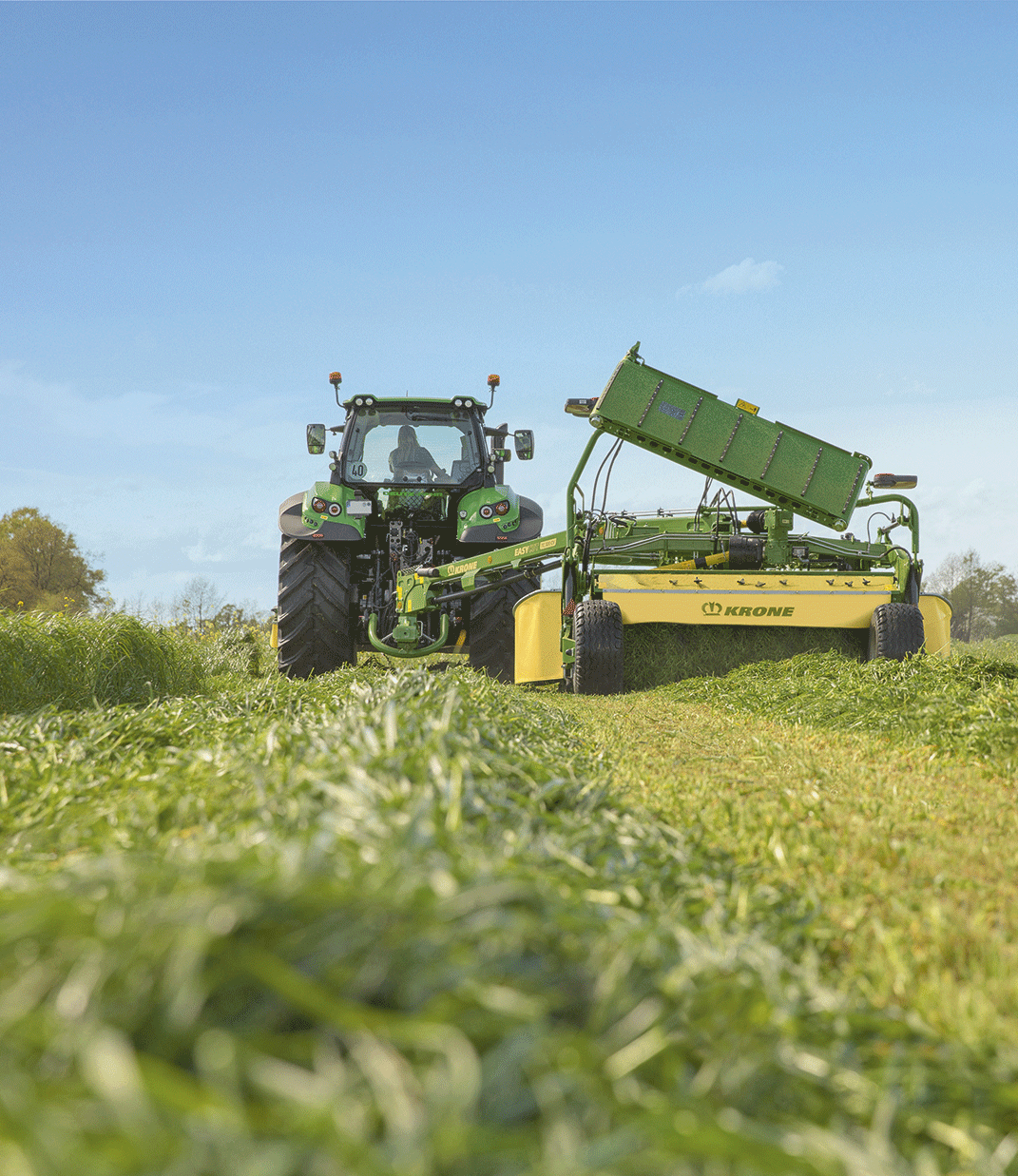

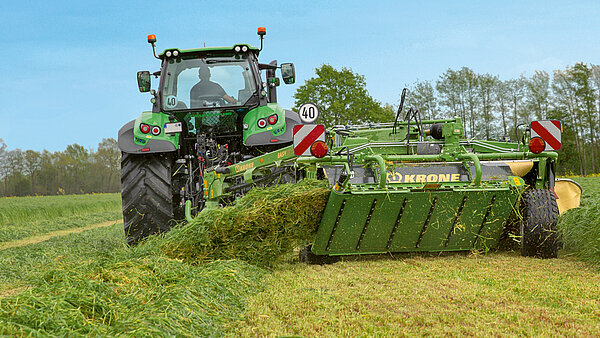

The KRONE Collect swathing belt
The KRONE Collect swathing belt
  • Separate on-board hydraulic drive
  • Infinitely variable crop throw
  • Belt auto on/off during lift/lower
  • Wide and high-capacity swathing belt
  • Frameless design for reduced machine weight
  • Massive and stronger drive rollers warrant a continuous crop flow also in difficult conditions

The hydraulic cross conveyor belt which is available for some of the trailed models saves time, reduces the number of passes and minimizes compaction. By feeding the crop to the swath without it contacting the ground, this system guarantees particularly clean forage.

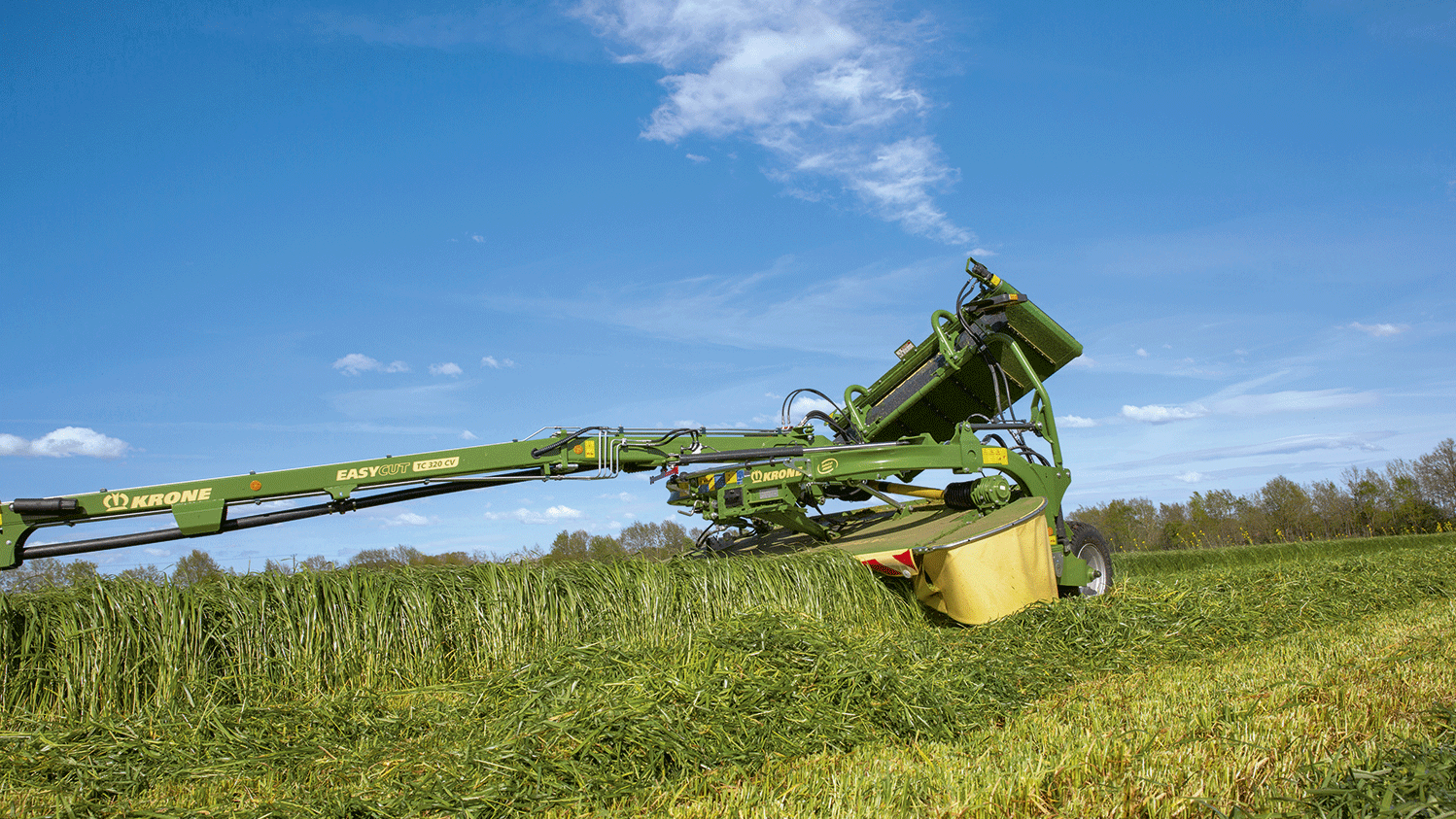

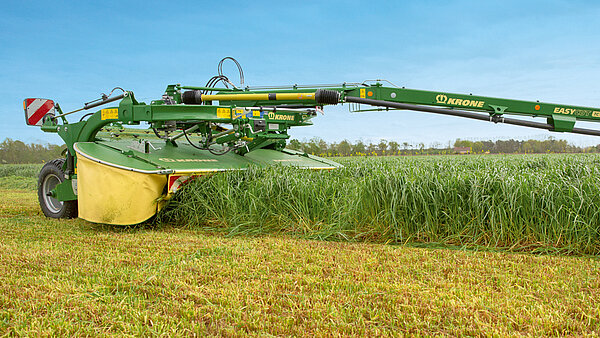

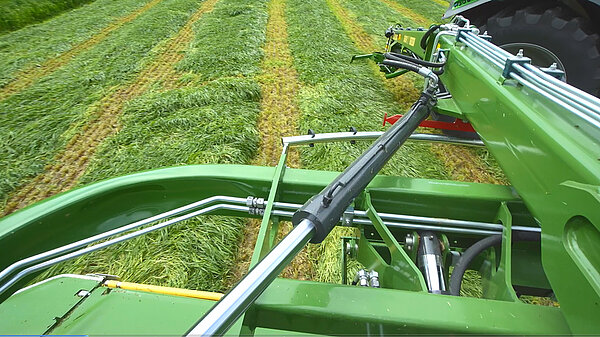

EasyCut TS/TC models with conditioner
EasyCut TS/TC models with conditioner
    • Enhanced operator comfort from hydraulic suspension
    • New and modular frame with tensioned curtains for enhanced contouring

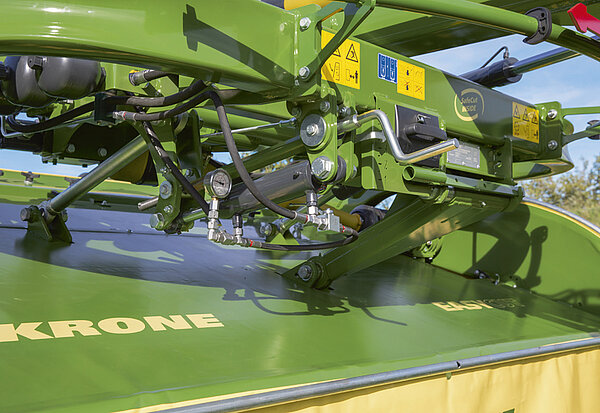

    • Hydraulic height control or tilt function is an option

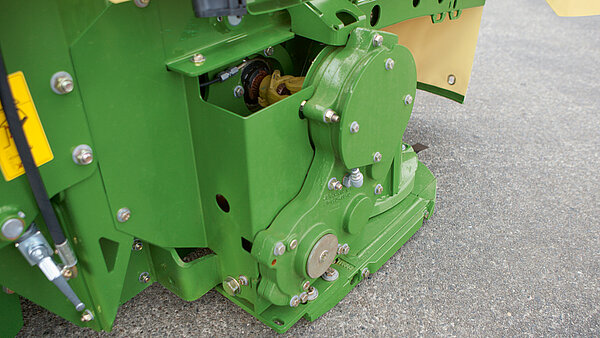

    • Standard slewing gearbox for a straight power flow
    • Optional KRONE Collect swathing belt

    The new trailed mowers with conditioners offer a maximum in flexibility and versatility. These machines satisfy a wide range of different needs and requirements. The TS models score on their compact design and the TC models on versatility. The mid-mounted drawbar allows the mower to track offset on either side behind the tractor. All conditioner models can be specified with the KRONE Collect system as an option.

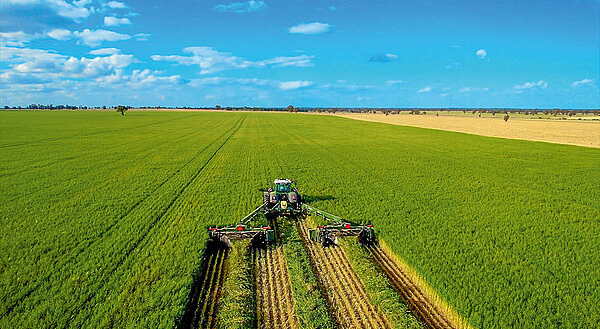

    KRONE EasyCut TC Connect
    KRONE EasyCut TC Connect
    • Koppelrahmen für zwei gezogene Mähwerke für maximale Schlagkraft
    • Ausgelegt für die Mittendeichselmodelle EasyCut TC 400 CV/CR und EasyCut TC 500 CV/CR
    • CTF Ready (Controlled Traffic Farming) mit über 12 m Arebitsbreite
    • Maximale Schlagkraft durch Kombination von bestehende Mähwerkskomponenten
    • Transportposition und Solobetrieb der Mähwerke weiterhin möglich

    Das EasyCut TC Connect ermöglicht den Anbau von zwei gezogenen Mitteldeichsel-Mähwerken. In Kombination mit einen KRONE Frontmähwerk ergibt sich eine Arbeitsbereite bis 13 m. Maximale Schlagkraft und Control Traffic Farming sind die logische Schlussfolgerung. Der Solobetrieb der Mähwerke bleibt weiter erhalten, es müssen keine Umbaumaßnahmen erfolgen.

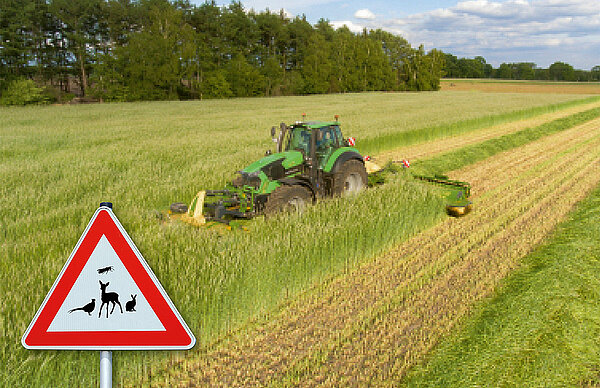

    Wildtierschutz
    Wildtierschutz
    1. Jägerschaft über den
    2. Mähzeitpunkt informiert
    3. Fläche nach Wildtieren
    4. und Gelegen durchsucht
    5. Hubertus Wildwarner genutzt
    6. Mähstrategie richtig gewählt (von innen nach außen gemäht)

    Lasst uns gemeinsam präventiv handeln! Eine Vielzahl von unterschiedlichsten Lösungsansätzen zum Erhalt der heimischen Arten bestimmen den Erfolg des Wildschutzes und sorgen für qualitativ hochwertiges Futter. Die Hubertus Sirene zur Wildrettung kann zur ersten Vergrämung beitragen, allerdings wird diese niemals die Kommunikation zwischen Landwirten, Lohnunternehmern und Jägerschaft ersetzen, da ein Absuchen der Flächen unabdingbar ist. Auch die Wahl der richtigen Mähstrategie ist von entscheidender Bedeutung.

    Models

    EasyCut TS/TC
    EasyCut TS 320 EasyCut TS 320 CV EasyCut TS 320 CR EasyCut TC 320 CV EasyCut TC 320 CR EasyCut TS 360 CV EasyCut TS 360 CR
    Working width (m) 3.16 3.16 3.16 3.16 3.16 3.60 3.60 configure
    Drawbar attachment side side side center center side side configure
    No. of discs 5 5 5 5 5 6 6 configure
    No. of top hats 2 2 2 2 2 2 2 configure
    - V-tines Rollers V-tines Rollers V-tines Rollers configure
    Input power (kW/hp) 59 / 80 59 / 80 59 / 80 59 / 80 59 / 80 66 / 90 66 / 90 configure
    configure configure configure configure configure configure configure

    Compact, versatile and perfect contouring
