Vendro

New tedder series

Vendro

Rotary tedders

  • LED light for maximum road safety
  • Compact V-shaped frame with three-point headstock minimises weight shift from the front axle
  • Prop stand at the rear and wide storage stand at the front pro-vide good stability and raise the wheels from the ground
  • Stylish light-weight plastic deck in a sloping design for effective self-cleaning
  • Headland position pre-setting feature avoids tedding the same area twice for optimum wilting
  • Auto-folding hoop guards maintain maximum agility also in working Position
  • Main gearbox with overrunning clutch prevents instant rotor stopping
  • Mechanical or hydraulic damper struts ensure stable rides and optimum spreads
  • New KRONE OptiTurn tines lift and spread the crop in an ideaal way

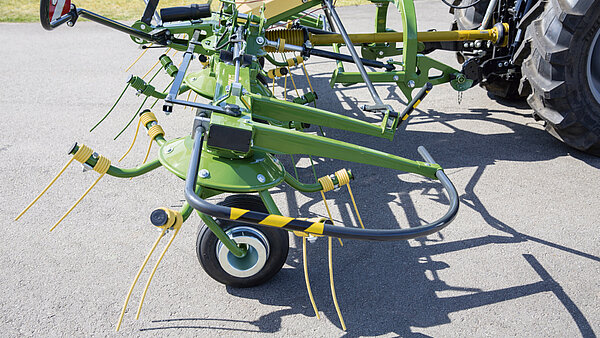

  • Gauge wheels run close to the tines providing exact tine control and optimum forage quality
Please accept marketing-cookies to see this content.

Product video

Vendro – new KRONE tedder series

We present a new series of KRONE tedders which is badged Vendro. The new range replaces the existing KW range and lines up nine models: two 4-rotor machines (Vendro 470 and Vendro 560), three 6-rotor tedders (Vendro 620, Vendro 680 and Vendro 790), two 8-rotor tedders (Vendro 820 and Vendro 900) and two 10-rotor tedders (Vendro 1020 and Vendro 1120), covering working widths of 15' 4.8" to 36' 8.9" and offering the right solution for any farming needs.

Special Feature

KRONE OptiTurn

An optimum quality of work is delivered by the new 3D tines. The curved shafts lift and throw the material with greater ease which is the first step in making clean and high-quality forage.

Please accept marketing-cookies to see this content.

Product video

Vendro T 900 | T 1020 | T 1120 – trailed rotary tedders from KRONE

Discover the latest generation of KRONE's pulled rotary tedder series: the Vendro T 900, T 1020, and T 1120. With working widths of 9m to 36' 8.88", these machines offer unparalleled performance and efficiency in feed preparation. The design concept of the Vendro series is paired with innovative and proven technology features and unbeatable ease of use, ensuring the highest level of readiness for use, maximum impact and excellent feed quality. Watch the product video now and learn more about the powerful features of the Vendro T 900, T 1020, and T 1120.

Product features

Rotary tedders
Rotary tedders
  • LED light for maximum road safety
  • Compact V-shaped frame with three-point headstock minimises weight shift from the front axle
  • Prop stand at the rear and wide storage stand at the front pro-vide good stability and raise the wheels from the ground
  • Stylish light-weight plastic deck in a sloping design for effective self-cleaning

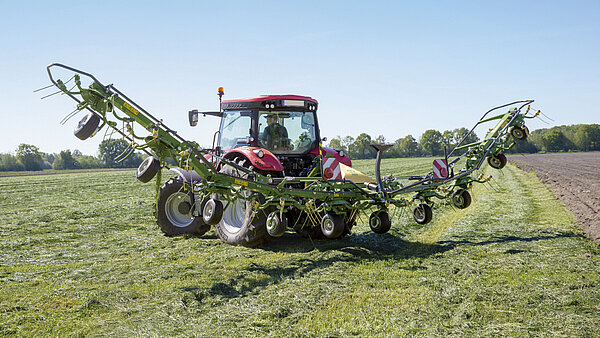

  • Headland position pre-setting feature avoids tedding the same area twice for optimum wilting
  • Auto-folding hoop guards maintain maximum agility also in working Position
  • Main gearbox with overrunning clutch prevents instant rotor stopping
  • Mechanical or hydraulic damper struts ensure stable rides and optimum spreads
  • New KRONE OptiTurn tines lift and spread the crop in an ideaal way
  • Gauge wheels run close to the tines providing exact tine control and optimum forage quality

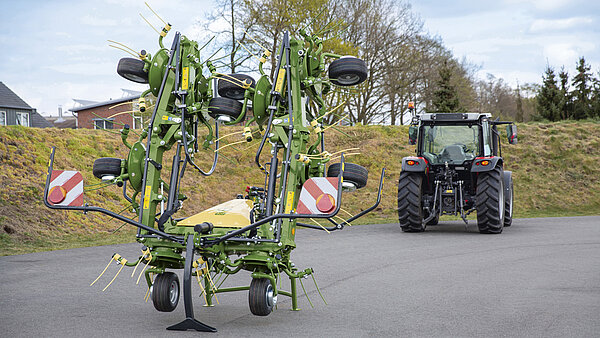

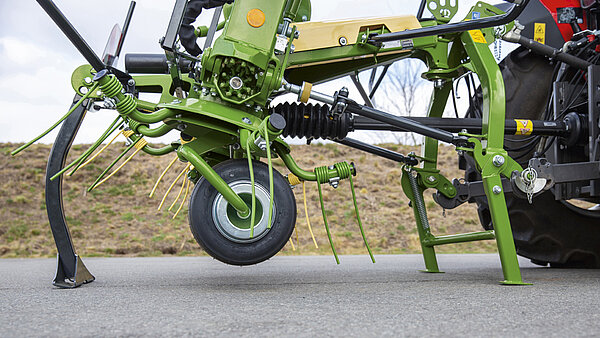

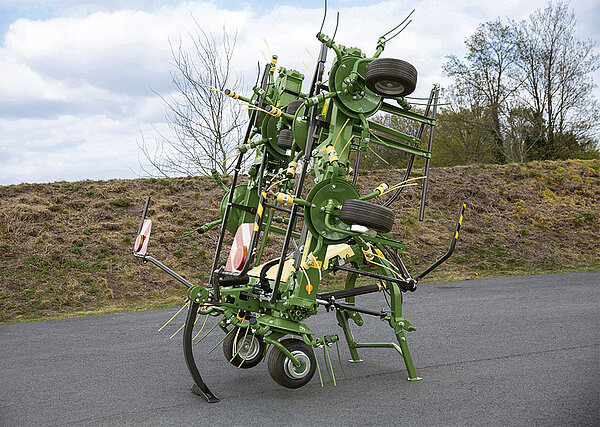

Attachment and storage
Attachment and storage

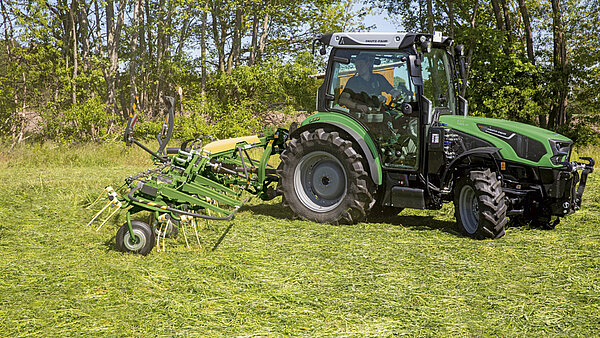

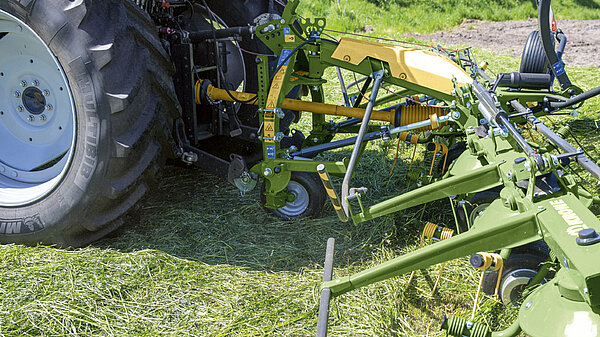

  • Compact supporting frame for three-point linkage very close to the tractor
  • „Automatic alignment in the centre when folding into transport position

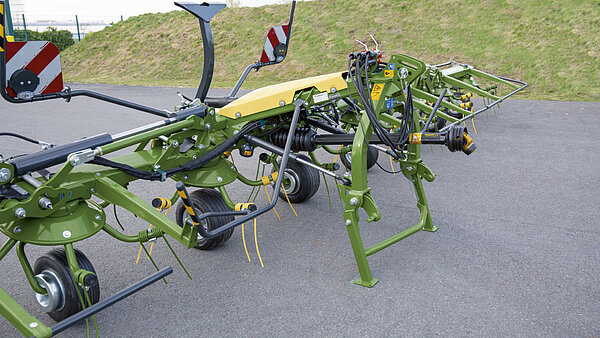

  • „Damper struts for stable rides behind the tractor
  • „Minimum front axle relief and low lifting force requirement thanks to compact design

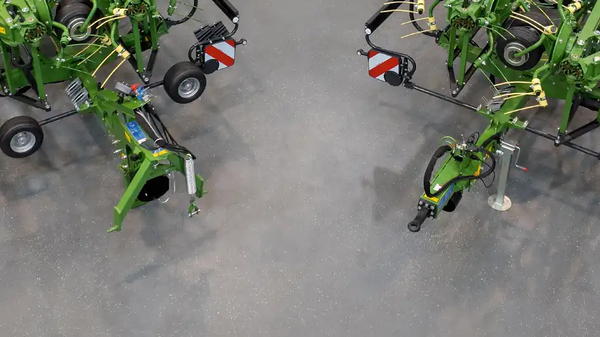

  • Good stability of the parked machine thanks to front and rear support jacks

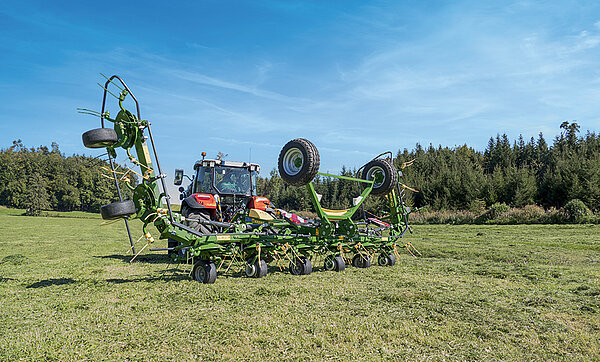

The KRONE Vendro tedders impress by stable rides
and convenient changeovers that are executed
from the seat. With the rotors folded in, the rotary
tedders are compactly mounted on the tractor
and can be easily moved and parked to save space
thanks to the favourable centre of gravity.

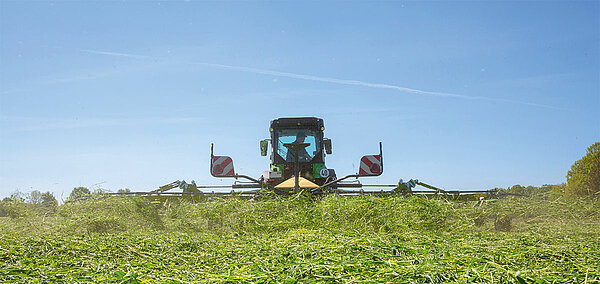

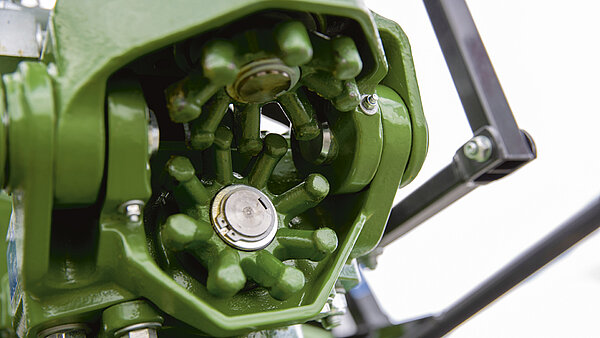

The KRONE OctoLink clutches
The KRONE OctoLink clutches
  • KRONE OctoLink finger clutch – eight fingers make frictional Connections
  • The driveline to the rotors is never cut„
  • No risk of driveline damage due to operator error

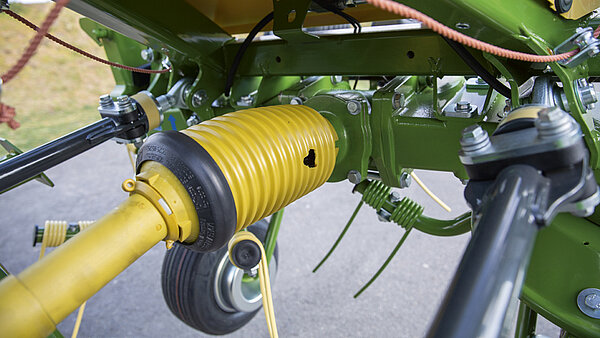

  • Maintenance-free driveline minimises service and maintenance and maximises lifetime

All Vendro tedders benefit from the tried-and-tested KRONE OctoLink finger clutches. The rugged units require no lubrication at all. This is the kind of dependable and low-maintenance machine you have always wanted.

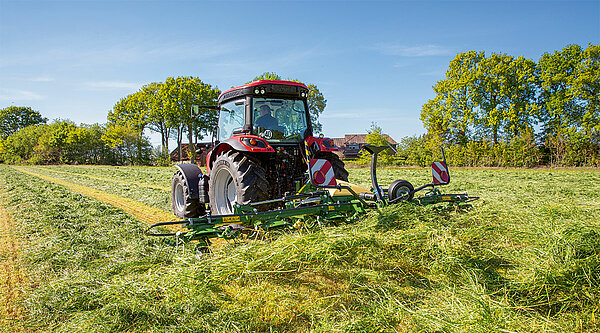

The gearboxes
The gearboxes

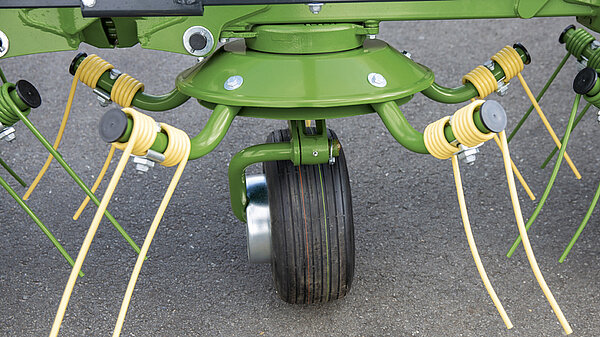

  • Standard overrunning clutch in the main gearbox maximises safety when turning off the machine
  • Rotor gearboxes
    • Maintenance-free and liquid-grease lubricated
    • Long service life thanks to permanent lubrication and the cantilevered design

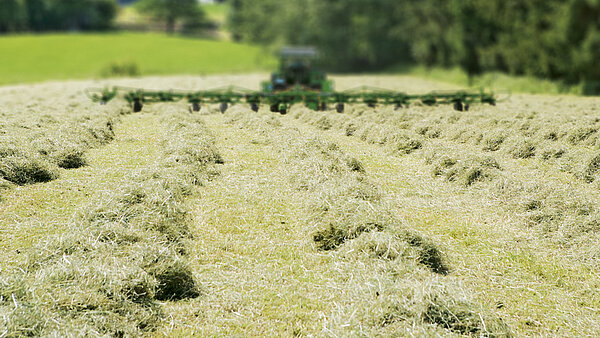

  • Reduction gearbox produces small night swaths for faster wilting

The KRONE rotary tedders are designed to deliver perfect functionality. Key elements in this context are the main gearbox with a standard overrunning clutch and the maintenance-free and permanently lubricated rotor gearboxes.

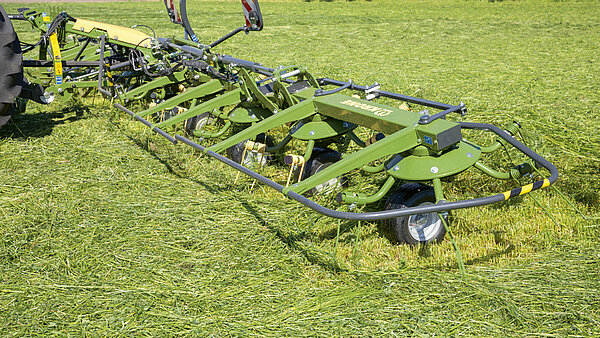

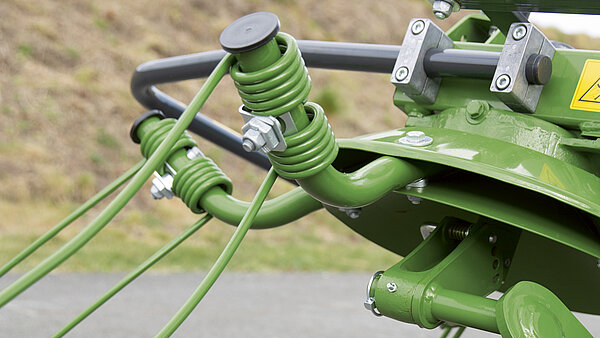

The KRONE OptiTurn rotors

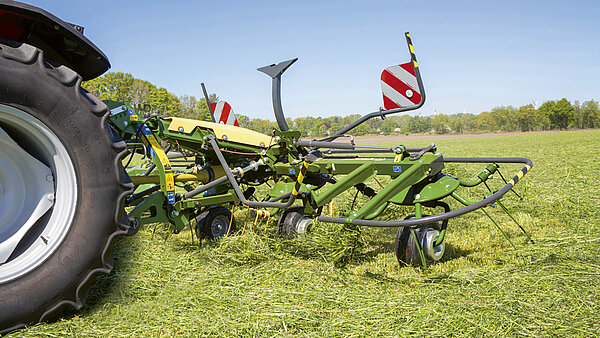

The KRONE OptiTurn rotors

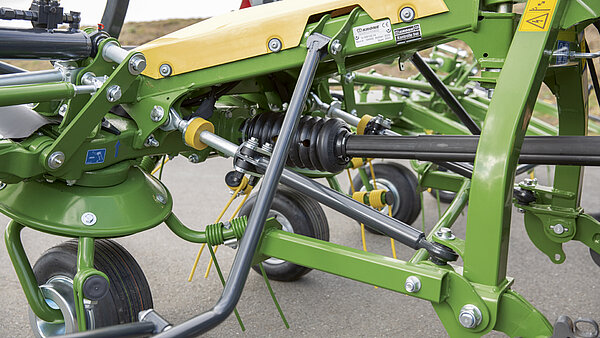

  • The rotor wheels run extremely close to the rotor providing optimum contouring
  • Curved 3D tines lift and spread the crop perfectly

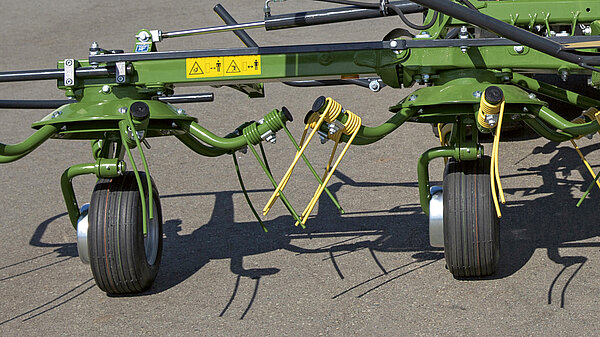

  • Rotors overlap for clean and uniform spreads
  • Optimum spreads for uniform wilting and highest-quality forage

The KRONE OptiTurn rotor design make real big-time. The special design sees the rotors overlap generously so the KRONE OptiTurn tines can lift the crop cleanly and spread it uniformly at an optimum width for fast wilts and optimum animal feed. This technology boosts your productivity not only in the field but also in the milking parlour.

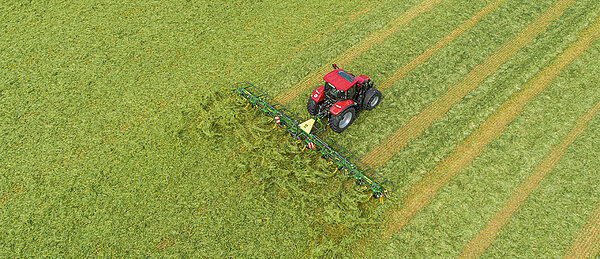

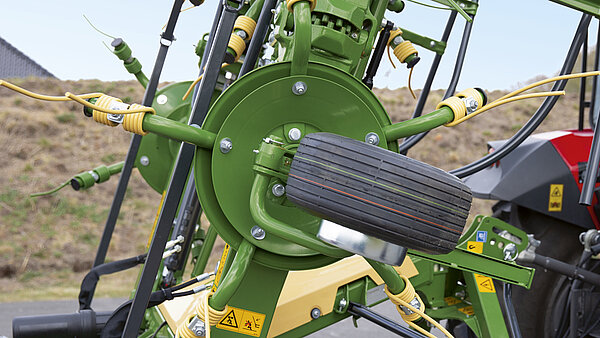

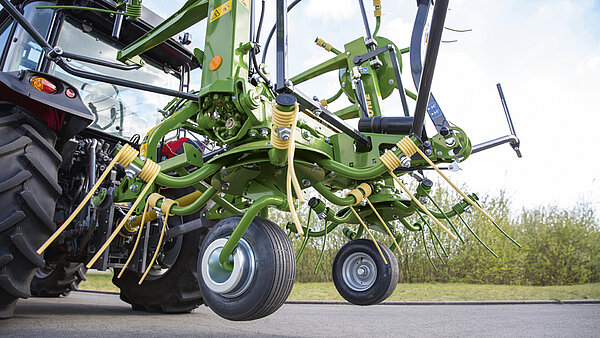

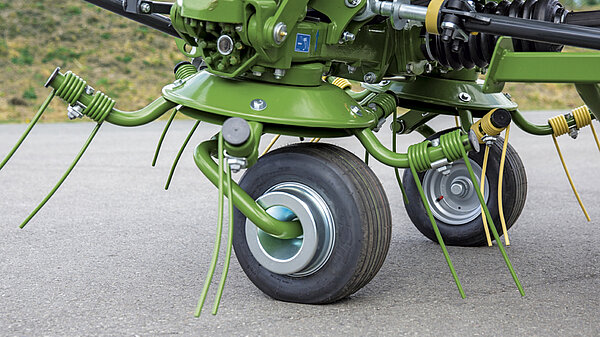

Tyre options on the rotor wheels
Tyre options on the rotor wheels
  • „Big flotation tyres for gentle treading and sustained sward protection
  • „Optimum rotor control for perfect ground hugging and clean forage
  • „Stable rides behind the tractor also in curved passes

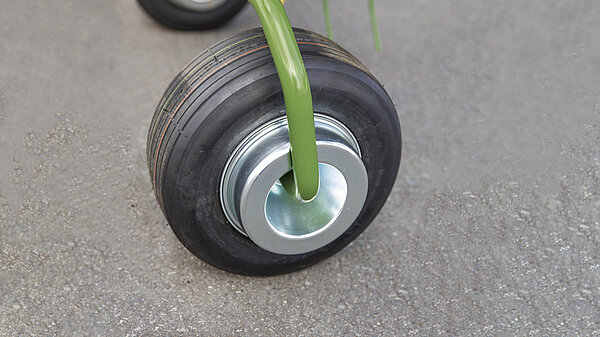

  • „Anti-wrap guards protect the wheels in long-haulmed crops


Proper tyres are important in forage harvesting. Therefore the KRONE tedders run on oversize flotation tyres that provide accurate control to the rotor, keeping the crop clean and protecting the sward by minimising the ground pressure.

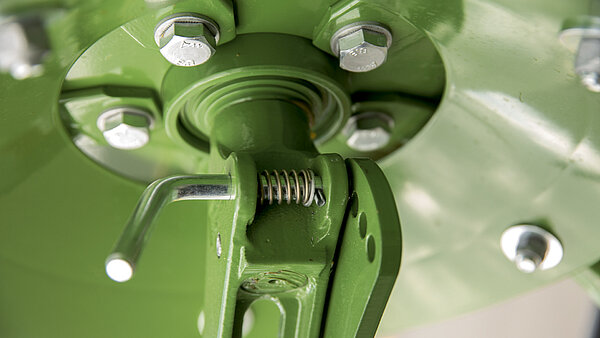

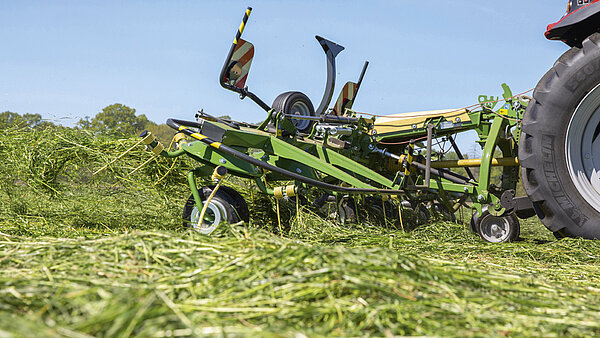

Adjusting the angle of throw
Adjusting the angle of throw
  • Altering the angle of throw alters the intensity of conditioning
  • A steep angle controls tedding, a shallow angle controls turning
  • Easy adjustment to 13°-19° angles without tools

Tedding or turning? Vendro allows you to change from tedding to turning or vice versa at the spur of the moment. Simply change the spreading angle and the crop is conditioned at the required intensity.

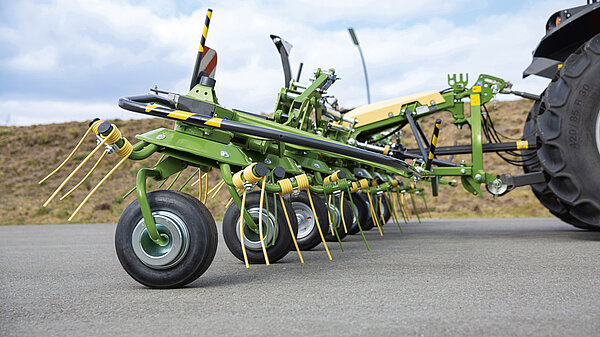

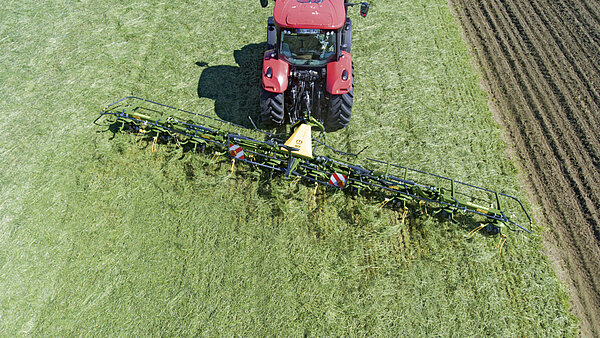

The border spreading facility
The border spreading facility

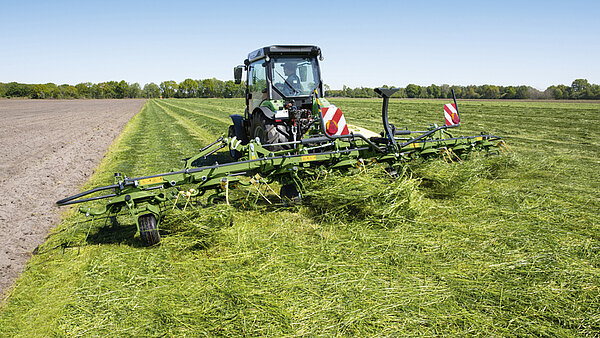

  • Standard border spreading control avoids losses along boundaries

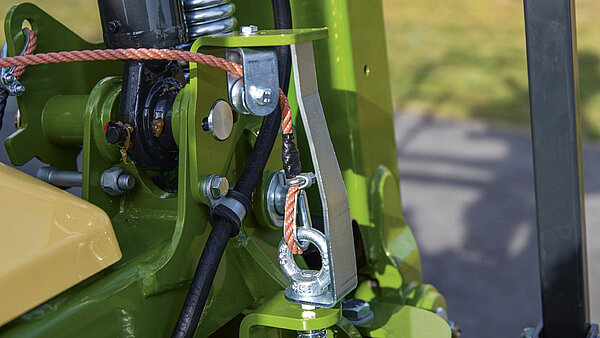

  • Manual control is standard specification on Vendro 470 to 790

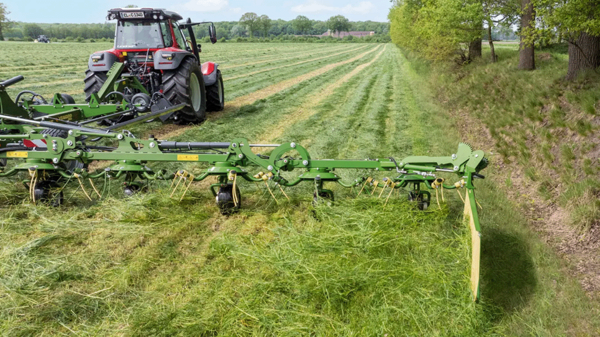

  • Convenient hydraulic control from the cab is standard specification  on Vendro 820 to 1120 and an option on Vendro 470 to 790 models
  • Vendro C models optionally equipped with hydraulic border spreading curtain

We would be saving wrong if we wouldn’t make border spreading control a standard feature on the Vendro tedders. The system spreads the material towards the middle of the machine when tedding along field boundaries. You either set the mode from a straightforward manual control on the machine or hydraulically from the convenience of the cab.

Vendro 470 · 560 · 620 · 680 · 790
Vendro 470 · 560 · 620 · 680 · 790
  • Wide range of 4.70 m to 7.90 m work widths to choose from

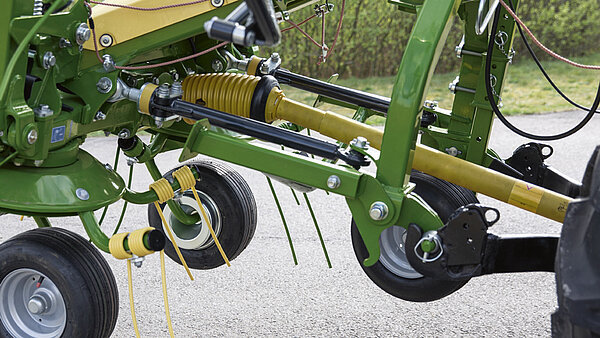

  • Mechanical dampers enhance ride comfort and road safety
  • Standard mechanical border spreading feature for loss-free tedding along boundaries
  • Headland position pre-setting feature is an option for all models
  • Optional front-running gauge wheel for perfect ground contouring in heavy going

Looking for a tedder that offers uncompromised tackle for grassland and pastureland and yet treats your crop gently and makes it wilt fast? Then these machines are for you. Even the smaller machines with four or six rotors are high performers both in hay and heavy crops.

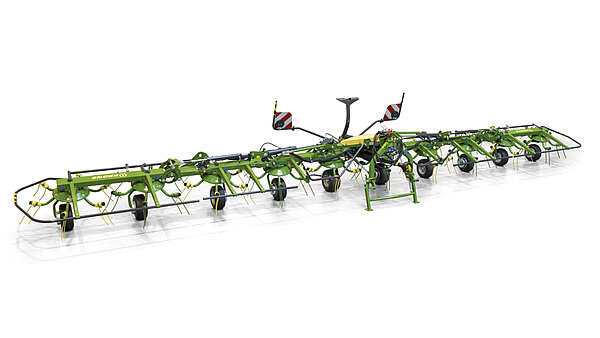

Vendro 820 · 900 · 1020 · 1120
Vendro 820 · 900 · 1020 · 1120
  • Wide range of 8.20 m to 11.20 m working widths to suit your Needs
  • Standard hydraulic border spreading Control
  • Standard headland position pre-setting feature on the 10-rotor models
  • Big flotation tyres increase ride comfort and reduce compaction
  • Hydraulic damper struts ensure excellent tracking and road travel without jolting

The 8- and 10-rotor machines offer many ground-friendly features that turn your crop into high-quality forage whilst minimising losses. All major functions are controlled hydraulically for high operator comfort.

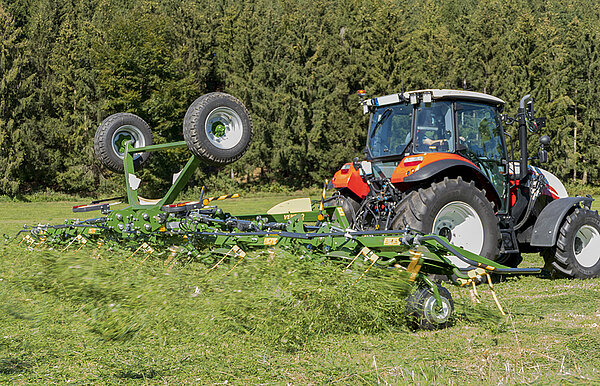

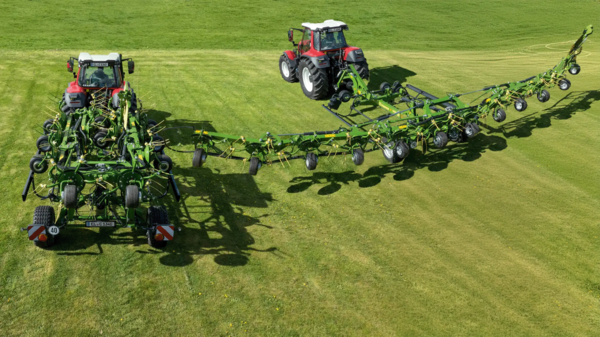

Vendro T 900 · T 1020 · T 1120
Vendro T 900 · T 1020 · T 1120
  • 9.00 m to 11.20 m work widths
  • Two-point mounted Vendro T, Vendro C with pivoting drawbar – with three-point attachment as an option
  • Standard hydraulic border spreading control - No losses along the edges
  • Optimum centre of gravity - smooth ride

The new design of the trailed KRONE Vendro series, coupled with innovative techniques, optimised guards and an unbeatable operating comfort, is a clear statement of what it was designed for: maximum reliability, maximum efficiency and top quality forage!

Work height control
Work height control

The Vendro T range comprises three types with working widths from 9 m to 11.20 m. The machines are each equipped with their own running gear, making them ideal for use with small tractors which have little lifting power.

Work height control
Work height control

To optimally guide the rotors even on very uneven terrain, a front guide wheel is available as an option for the Vendro T models. This can be mounted on the left, right or both sides of the front part of the frame and can be continuously adjusted in height using a crank handle.

Work height control
Work height control

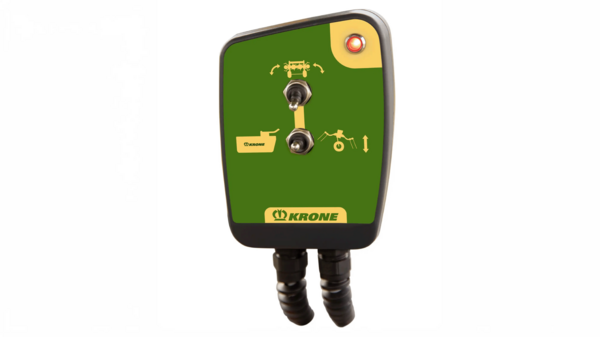

Two double-acting control units are required to operate all machine functions. By using an optionally available operation box, the machine's demands on the tractor can be reduced so that all machine functions can be operated with just one double-acting control unit.

Work height control
Work height control

The Vendro T is equipped with an oscillating two-point hitch which enables the machine to follow any ground contour and ensure ideal ground tracking.

Vendro C 1120 · C 1340
Vendro C 1120 · C 1340
  • Working widths of 11.20 m and 13.40 m with 10 and 12 rotors
  • „ Low-maintenance drive train for maximum reliability

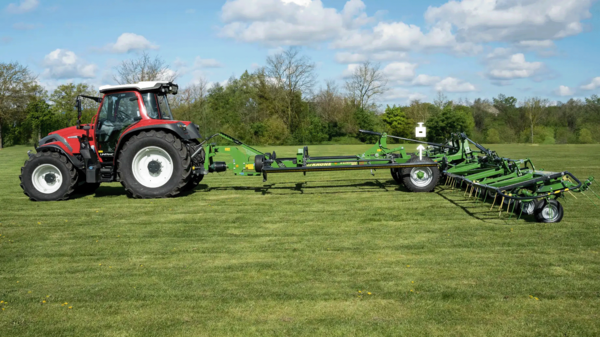

  • „ Hydraulic axle relief for optimum forage quality and sward protection
  • „ Optional hydraulic working height adjustment for convenient flexibility in varying conditions


The trailed models in the Vendro series not only
impress with their unique technology, such as
the OptiTurn rotor concept which ensures optimum
forage quality, but also with their extremely
robust design which offers maximum
reliability. Thanks to their special design and
the many technical features, the machines are
also extremely easy to drive and operate.

Models

Vendro
Vendro 470 Vendro 560 Vendro 620 Vendro 680 Vendro 790 Vendro 820 Vendro 900 Vendro T 900 Vendro 1020 Vendro T 1020 Vendro 1120 Vendro T 1120 Vendro C 1120
Type of attachment three-point attachment three-point attachment three-point attachment three-point attachment three-point attachment three-point attachment three-point attachment Drawbar three-point attachment Drawbar three-point attachment Drawbar Drawbar configure
Working width (m) 4.70 5.60 6.20 6.80 7.90 8.20 9.00 9.00 10.20 10.20 11.20 11.20 11.20 configure
No. of rotors 4 4 6 6 6 8 8 8 10 10 10 10 10 configure
No. of tine arms per rotor 6 7 5 6 7 5 6 6 5 5 6 6 6 configure
rotor diameter (m) 1.50 1.82 1.37 1.50 1.70 1.37 1.50 1.50 1.37 1.37 1.50 1.50 1.00 configure
Input power (kW/hp) 25 / 34 37 / 50 37 / 50 44 / 60 48 / 65 48 / 65 55 / 75 37 / 50 66 / 90 44 / 55 - 44 / 55 44 / 60 configure
configure configure configure configure configure configure configure configure configure configure configure configure configure
