Performing in the most versatile conditions around the world, the new and stylish EasyCut TS/TC models stand out for their enormous versatility and flexibility. Choose from various drawbar ends and three different conditioners and opt for the Collect swathing belt as examples of the versatility on offer.
- Mowers with side-mounted (TS) and mid-mounted drawbar (TC)
- Robust and fully welded cutterbar with massive and permanently lubricated sprockets
- SmartCut: Stripeless cuts from extra wide blade overlappings
- SafeCut: Individually protected discs
- Quick-change blades are standard specification
- DuoGrip: Center-of-gravity suspension with dual grip control for perfect contouring
- Tine conditioner (CV) or roller conditioner (CR) for fast and uniform wilts

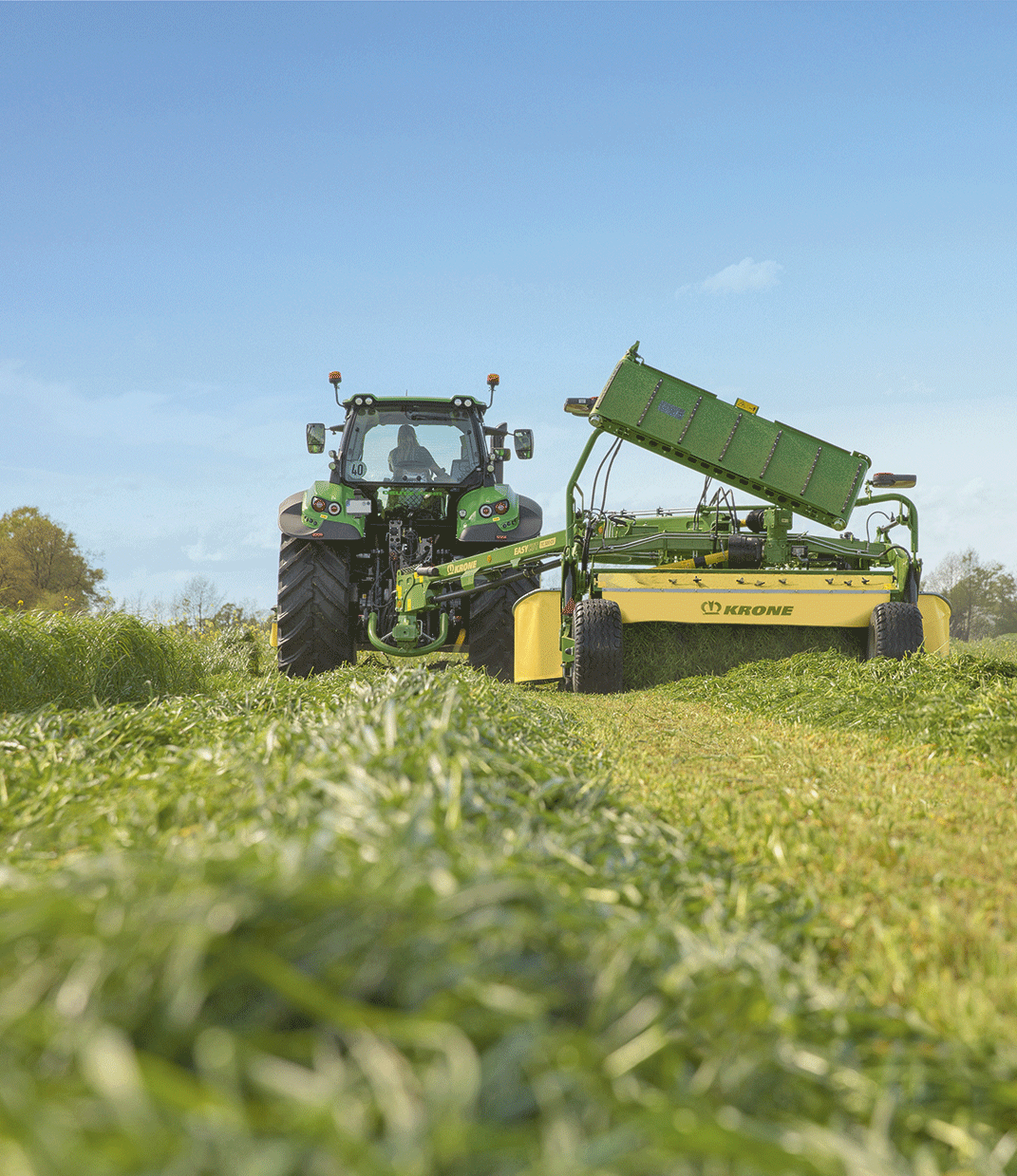

- Optional Collect cross belt increases your swathing options
Product video

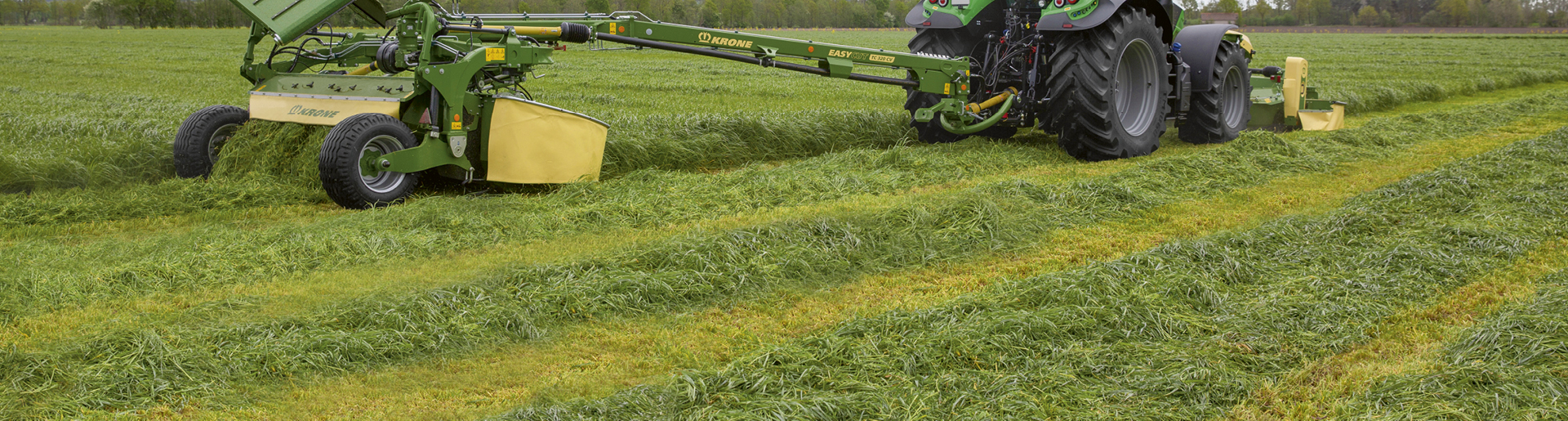

KRONE EasyCut TC/TS trailed disc mowers
The trailed mowers with a working width of 10' 32" to 10' 4.8" offer the highest degree of flexibility and meet the most diverse requirements worldwide. The TS models impress by their compact design, the TC models by their wide range of applications. With the central drawbar you have the possibility to work at the right or the left side of the tractor. These trailed mowers are available with either V-steel tine or roller conditioner. All conditioner models can be equipped with the KRONE Collect system.
Animation
KRONE M-Rolls conditioner
The new trailed machines are available with the well-proven V-steel tines (CV) or the CR roller either with rubber rollers or the new M-Rolls. These feature an M-profile tread that suits especially demanding conditions such as leafy crops or stone-strewn fields. The 9' 9.6" diameter M-Rolls ensure an effective crop flow even in high-yielding crops. The crop is bent multiple times, reducing the drying time in the field and ensuring a uniform wilting process and an exemplary quality of forage.
Product features

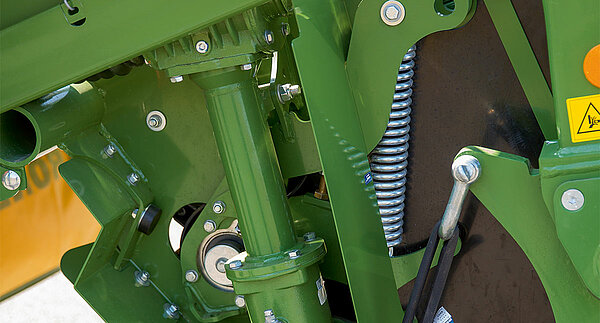

The top roller suspends from a spring which ensures a continuous flow in inconsistent growth and allows foreign objects to pass the system trouble-free. The roller distance and contact pressure can be adjusted to suit different forage quantities and types. The roller conditioner is driven by a gearbox.
Models
| EasyCut TS 320 | EasyCut TS 320 CV | EasyCut TS 320 CR | EasyCut TC 320 CV | EasyCut TC 320 CR | EasyCut TC 400 | EasyCut TC 500 | EasyCut TS 360 CV | EasyCut TS 360 CR | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Work width (m) | 3.16 | 3.16 | 3.16 | 3.16 | 3.16 | 3.96 | 4.95 | 3.60 | 3.60 |
configure
|
| Drawbar type | side | side | side | center | center | center | center | side | side |
configure
|
| No. of discs | 5 | 5 | 5 | 5 | 5 | 8 | 10 | 6 | 6 |
configure
|
| No. of top hats | 2 | 2 | 2 | 2 | 2 | 0 / 4 optional | 0 / 4 optional | 2 | 2 |
configure
|
| conditioner | - | V tines | rolls | V tines | rolls | - | - | V tines | rolls |
configure
|
| Power requirement kW/hp | 59 / 80 | 59 / 80 | 59 / 80 | 59 / 80 | 59 / 80 | 89 / 120 | 111 / 150 | 66 / 90 | 66 / 90 |
